Consult-II Operation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

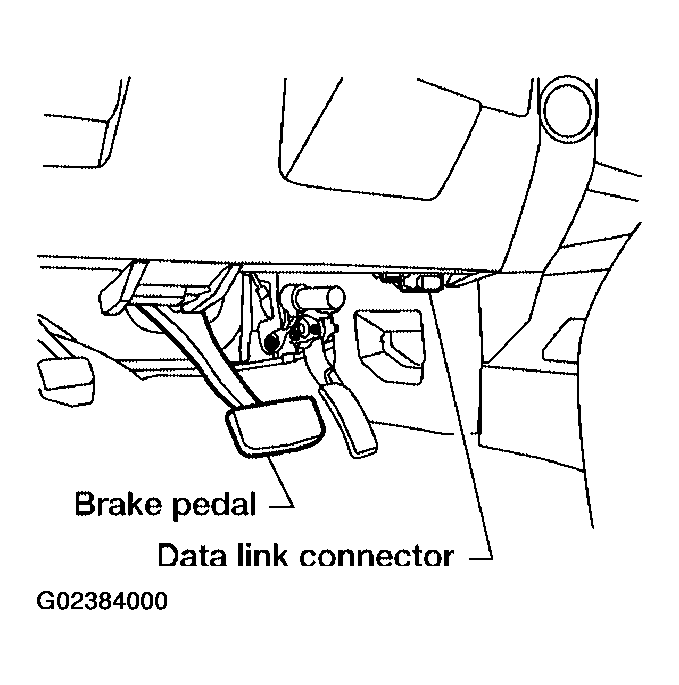

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

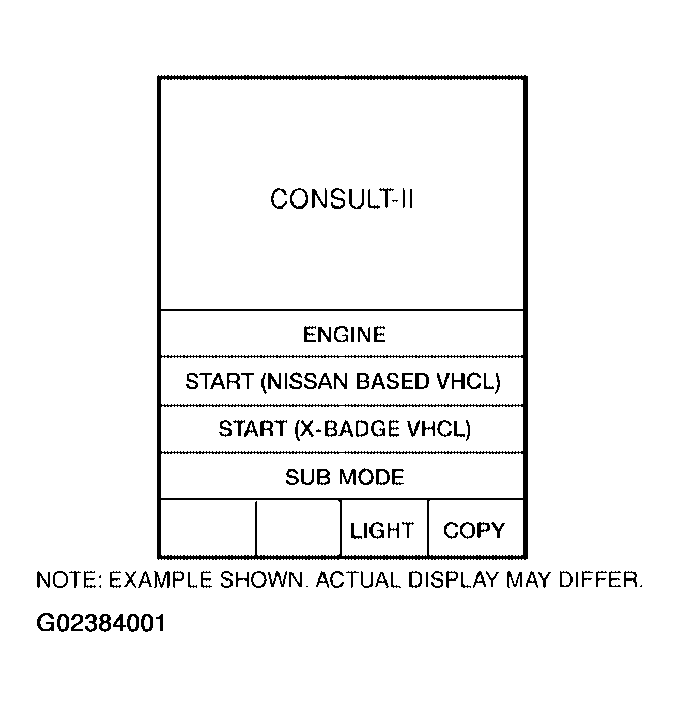

Fig 2: Displaying CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM". If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

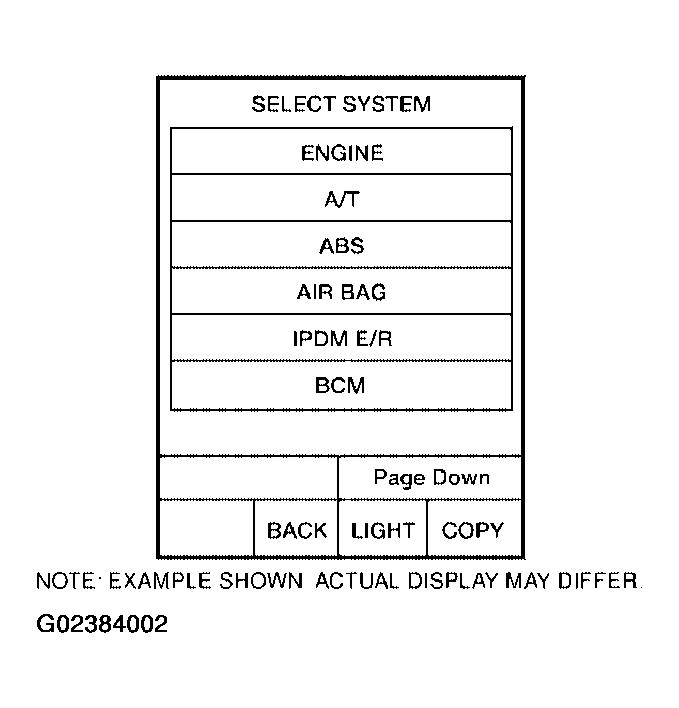

Fig 3: Displaying Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

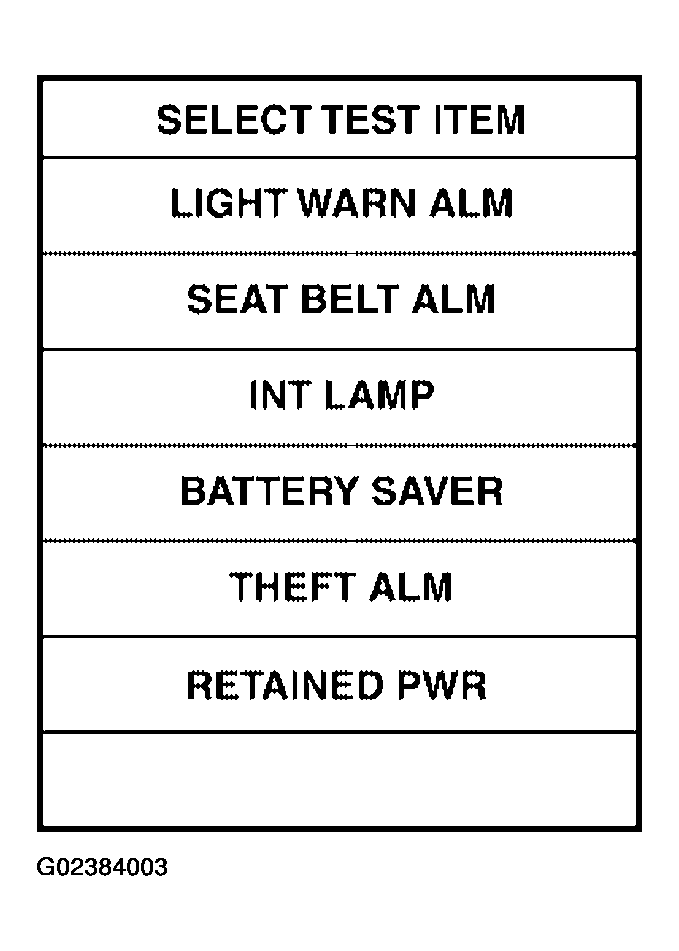

Fig 4: Displaying Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

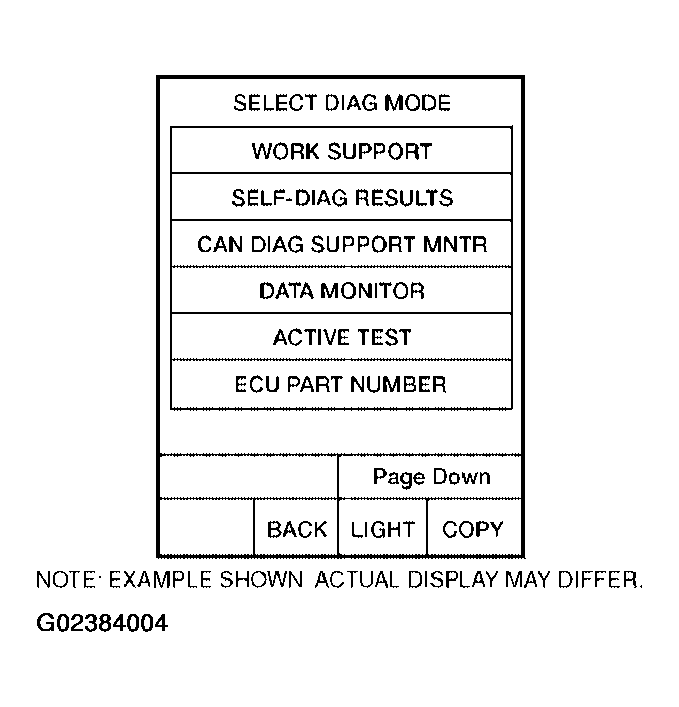

Fig 5: Displaying Select Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
