Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front pillar garnish. Refer to "BODY SIDE TRIM ".
- Remove inside mirror. Refer to "REMOVAL AND INSTALLATION ".
- Partially remove the headlining (front edge). Refer to "HEADLINING ".
- Remove cowl top cover. Refer to "REMOVAL AND INSTALLATION ".
- Apply a protective tape around the windshield glass to protect the painted surface from damage.

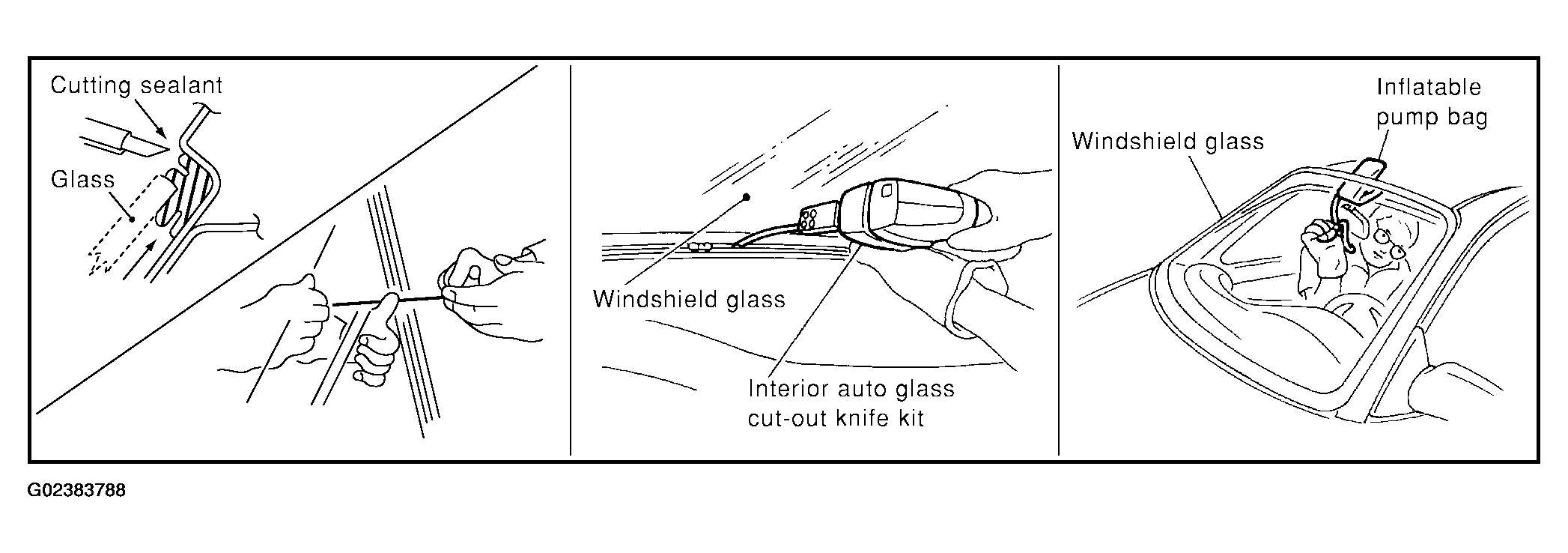

- Remove glass using piano wire or power cutting tool and an inflatable pump bag.
- If a windshield glass is to be reused, mark the body and the glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.
CAUTION:
- When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.
- Be careful not to scratch the glass when removing.
- Do not set or stand glass on its edge. Small chips may develop into cracks.
