Terminal and Reference Value for IPDM E/R

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

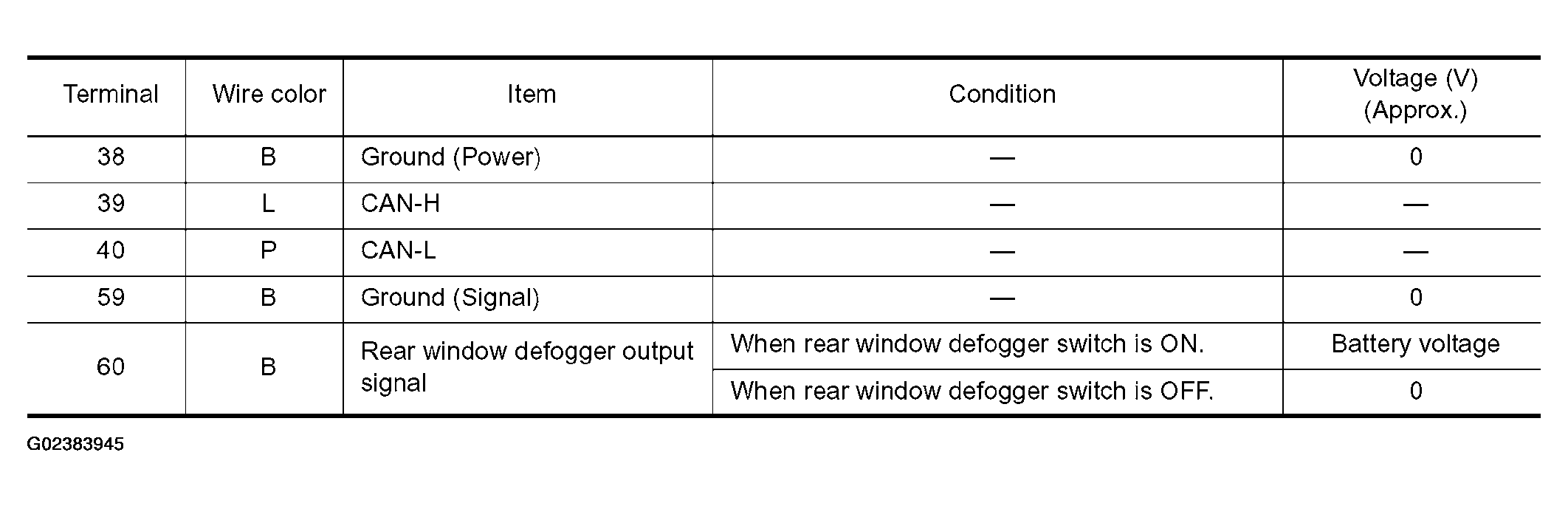

Fig 1: IPDM E/R Connector Terminal Voltage Reference

Courtesy of NISSAN MOTOR CO., U.S.A.
