Wiring Diagram - WINDOW -

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

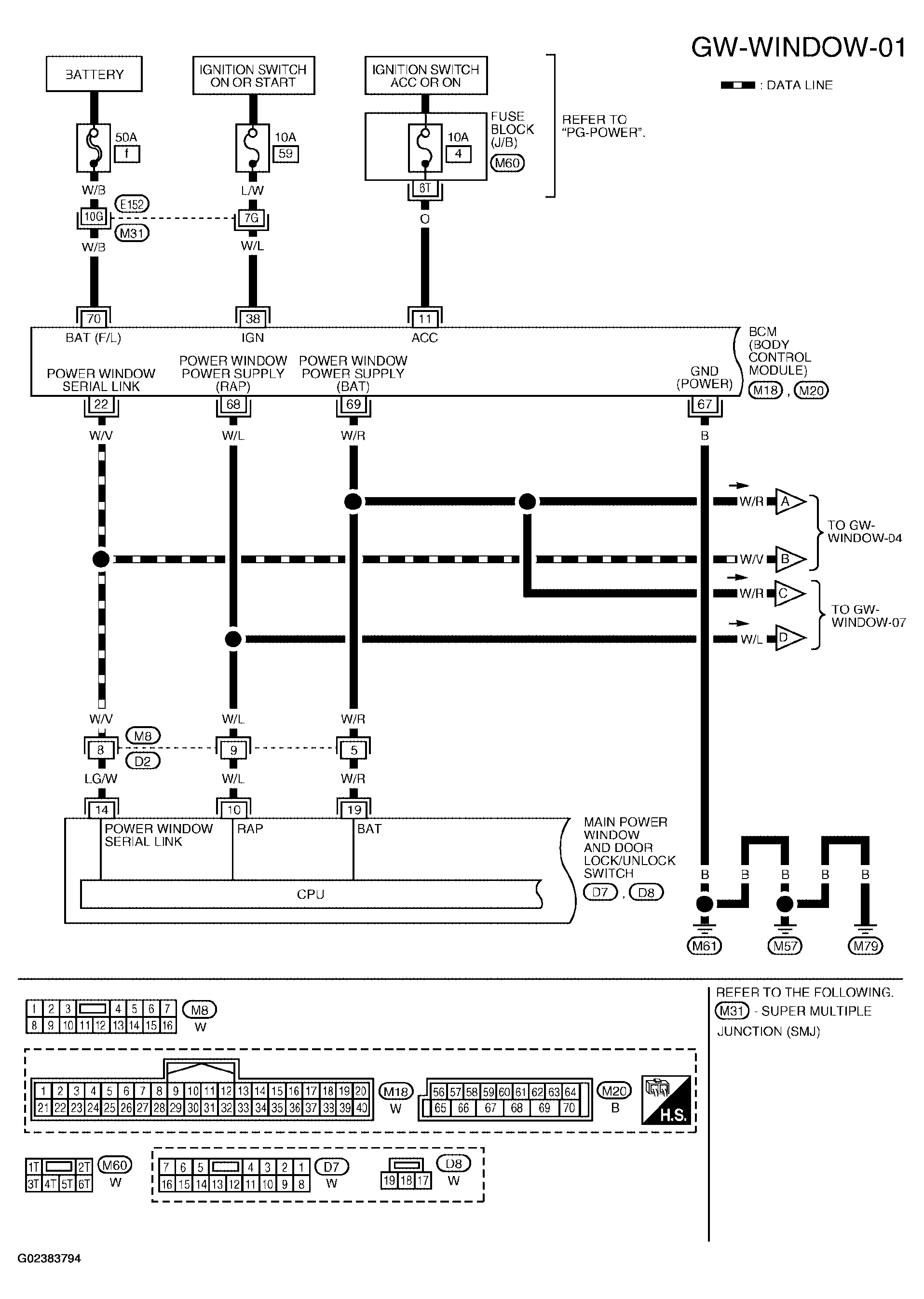

Fig 1: Wiring Diagram - WINDOW - GW-Window-01

Courtesy of NISSAN MOTOR CO., U.S.A.

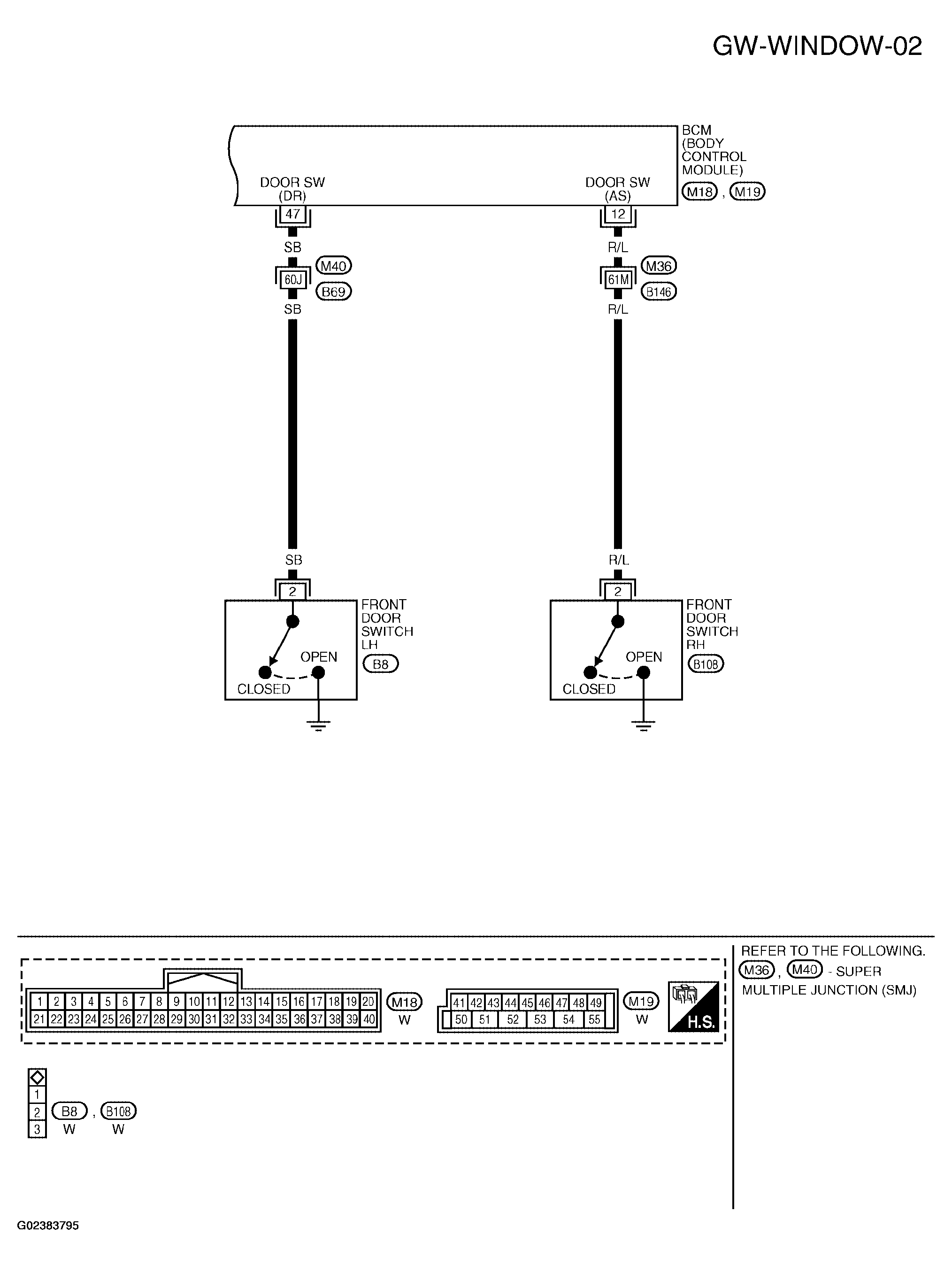

Fig 2: Wiring Diagram - WINDOW - GW-Window-02

Courtesy of NISSAN MOTOR CO., U.S.A.

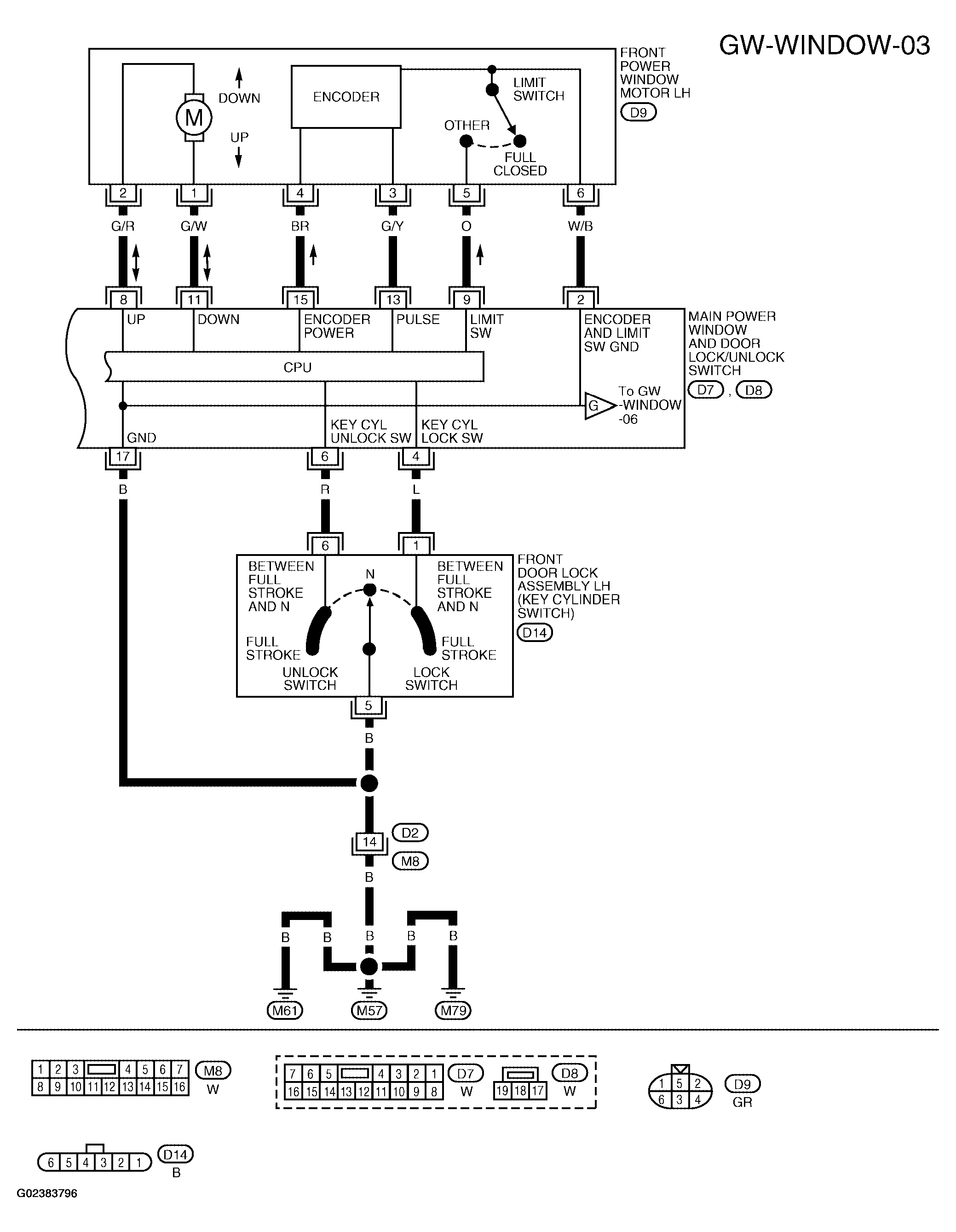

Fig 3: Wiring Diagram - WINDOW - GW-Window-03

Courtesy of NISSAN MOTOR CO., U.S.A.

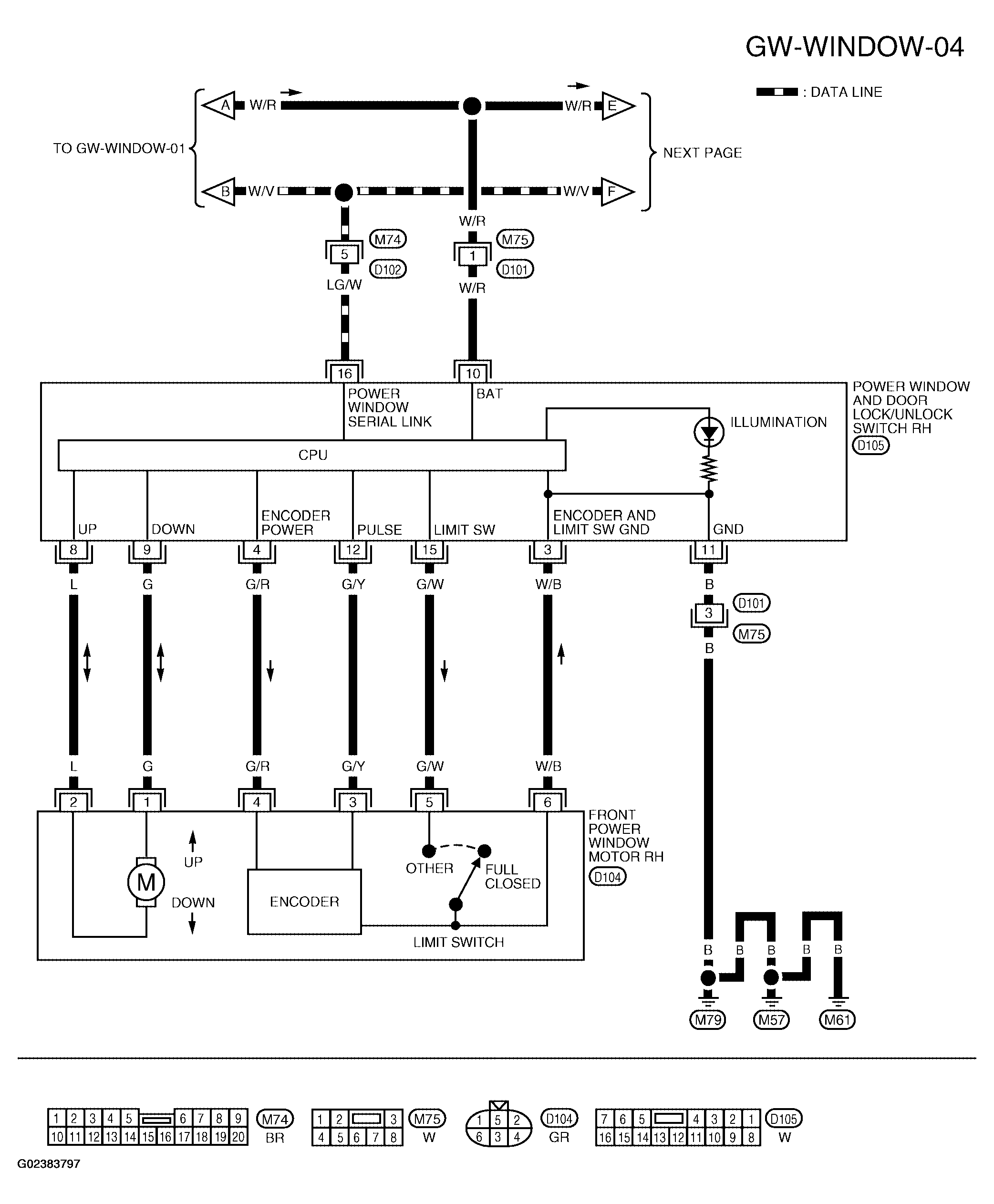

Fig 4: Wiring Diagram - WINDOW - GW-Window-04

Courtesy of NISSAN MOTOR CO., U.S.A.

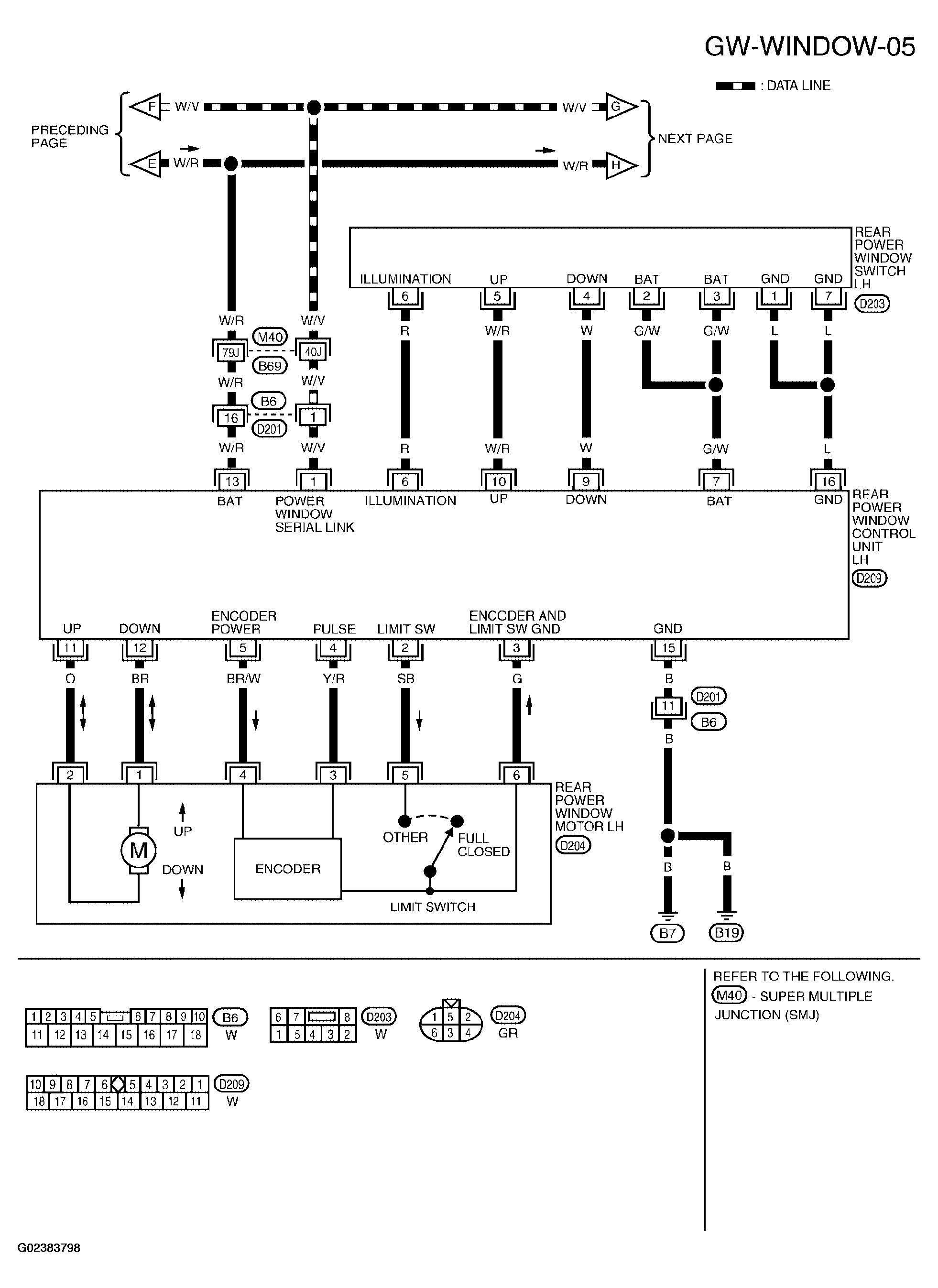

Fig 5: Wiring Diagram - WINDOW - GW-Window-05

Courtesy of NISSAN MOTOR CO., U.S.A.

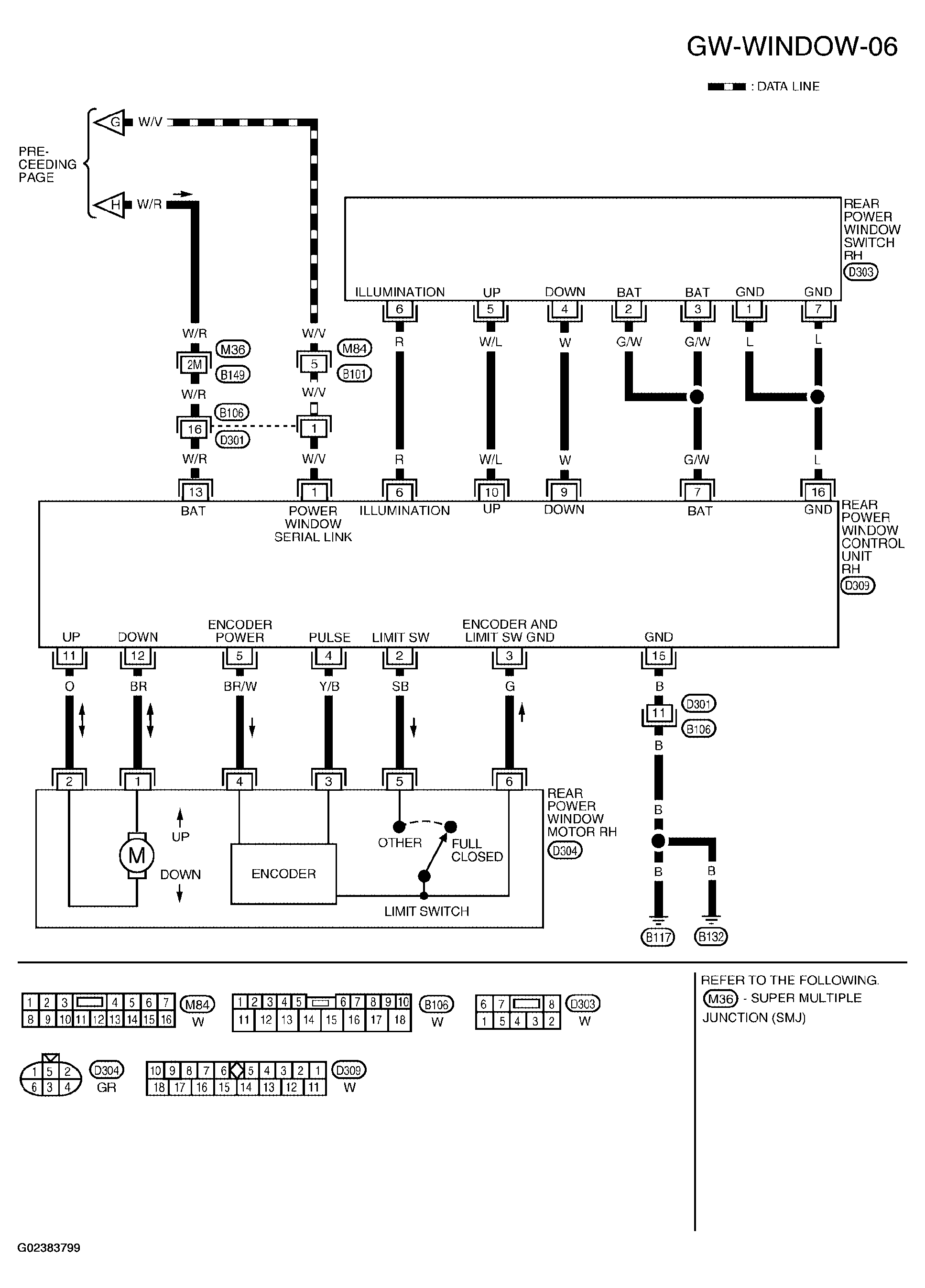

Fig 6: Wiring Diagram - WINDOW - GW-Window-06

Courtesy of NISSAN MOTOR CO., U.S.A.

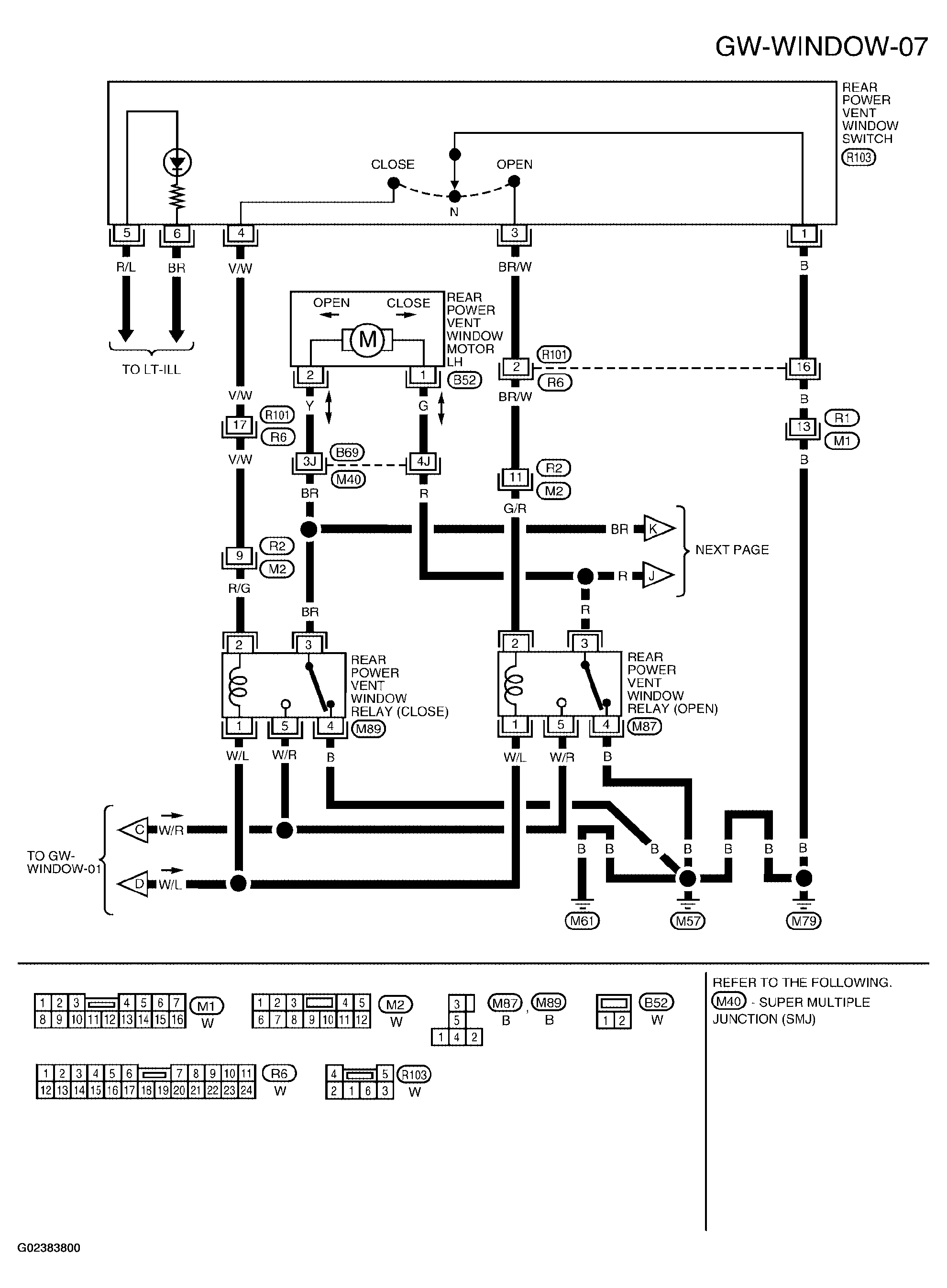

Fig 7: Wiring Diagram - WINDOW - GW-Window-07

Courtesy of NISSAN MOTOR CO., U.S.A.

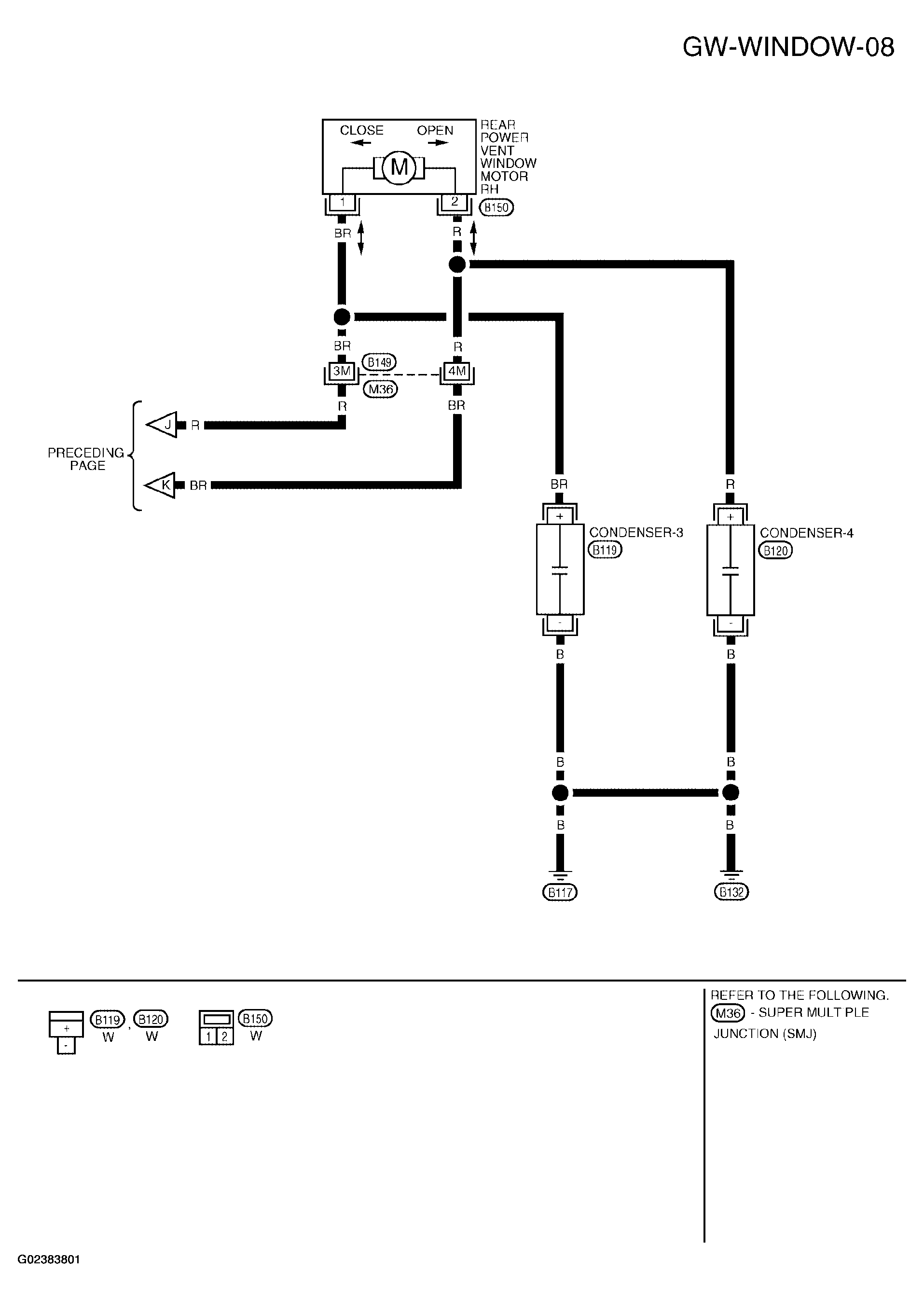

Fig 8: Wiring Diagram - WINDOW - GW-Window-08

Courtesy of NISSAN MOTOR CO., U.S.A.
