Trouble Diagnoses Symptom Chart

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check that other systems using the signal of the following systems operate normally.

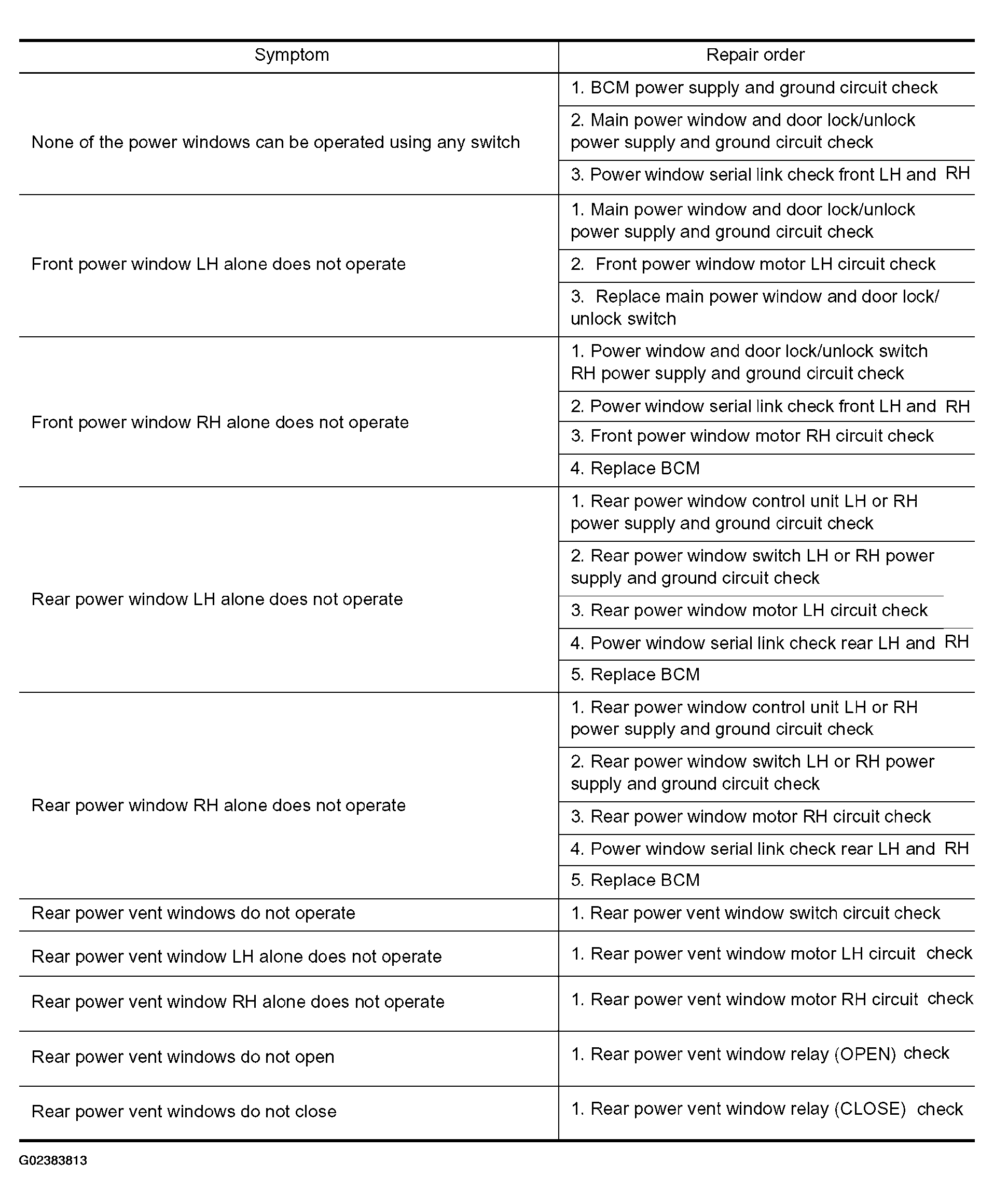

Fig 1: Trouble Diagnoses Symptom Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

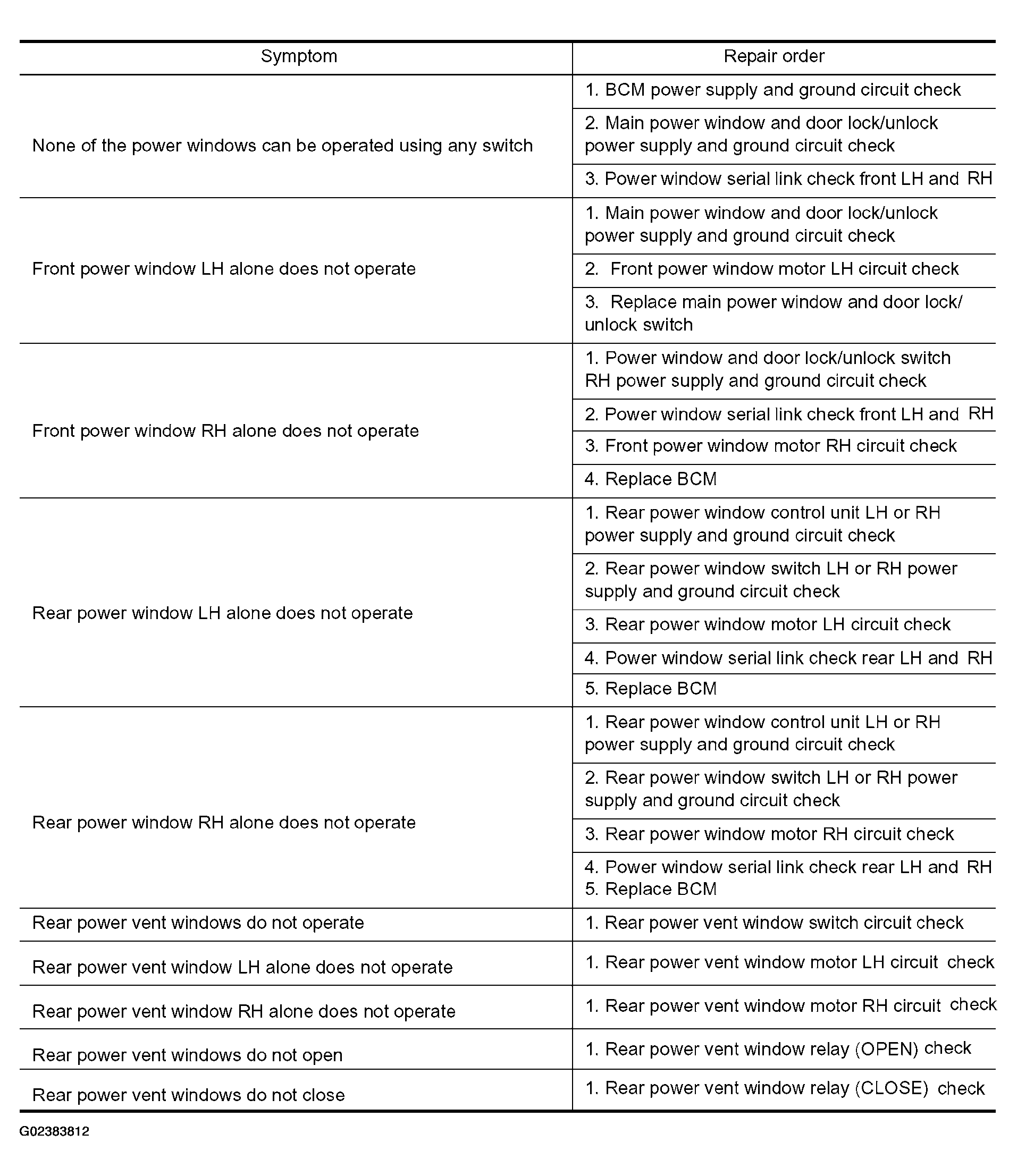

Fig 2: Trouble Diagnoses Symptom Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
