Terminal and Reference Value for Power Window and Door Lock/Unlock Switch RH
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

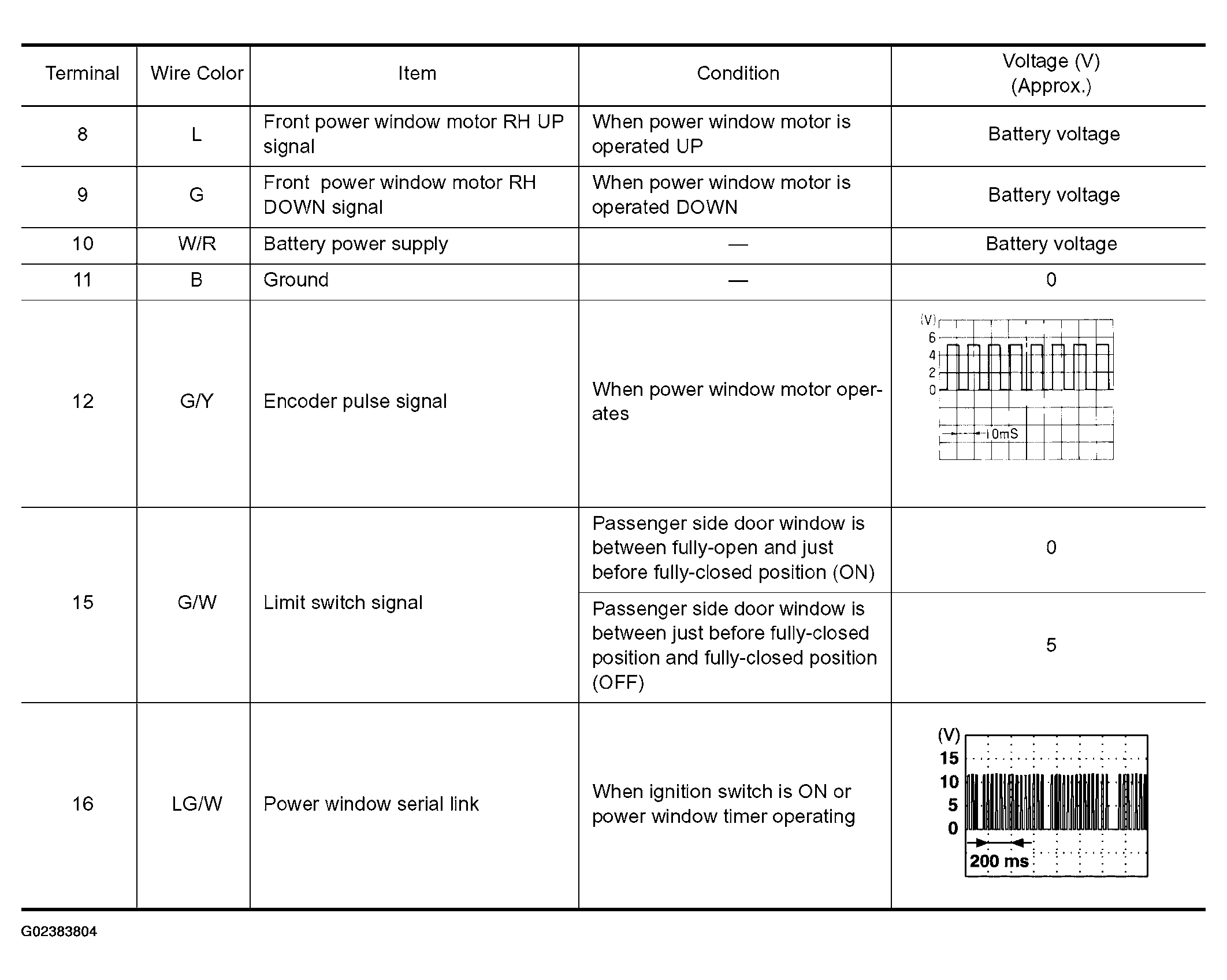

Fig 1: Power Window And Door Lock/Unlock Switch (RH) Voltage Reference (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

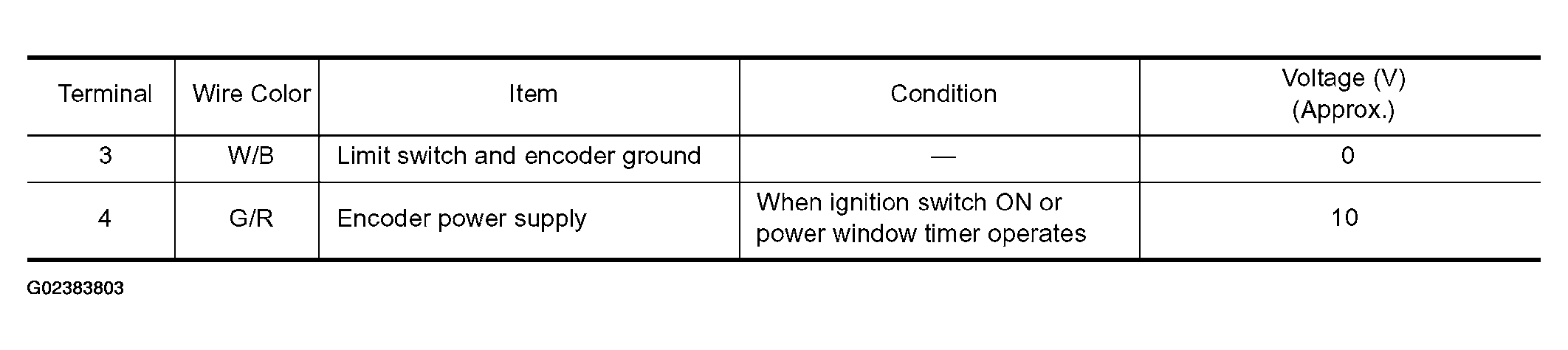

Fig 2: Power Window And Door Lock/Unlock Switch (RH) Voltage Reference (1 Of 2)
