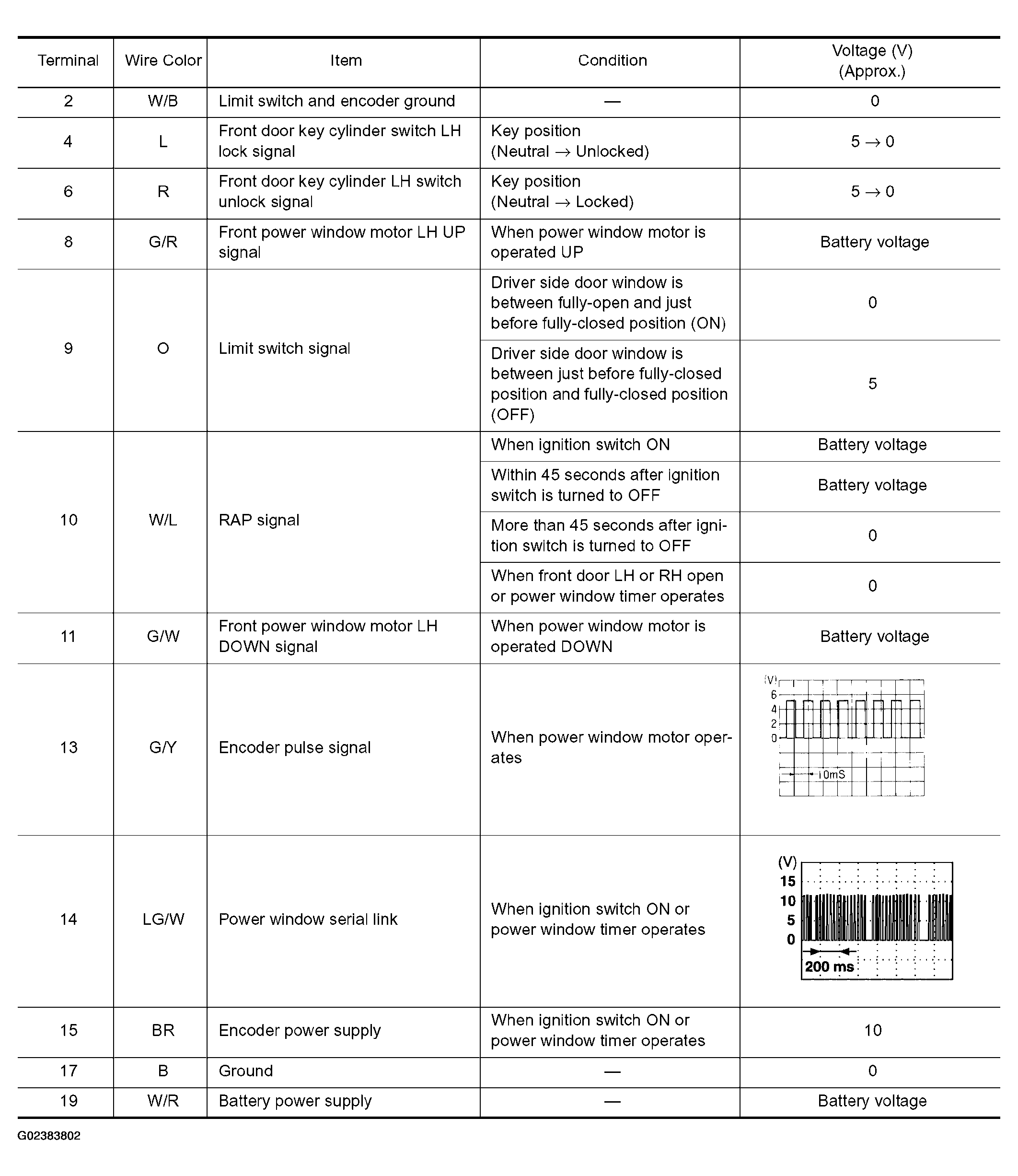

Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
