Rear Power Vent Window Motor RH Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REAR POWER VENT WINDOW SWITCH RH SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power vent window motor RH.
3. Turn ignition switch ON.
4. Check voltage between rear power vent window motor RH connector B150 terminal 1, 2 and ground.

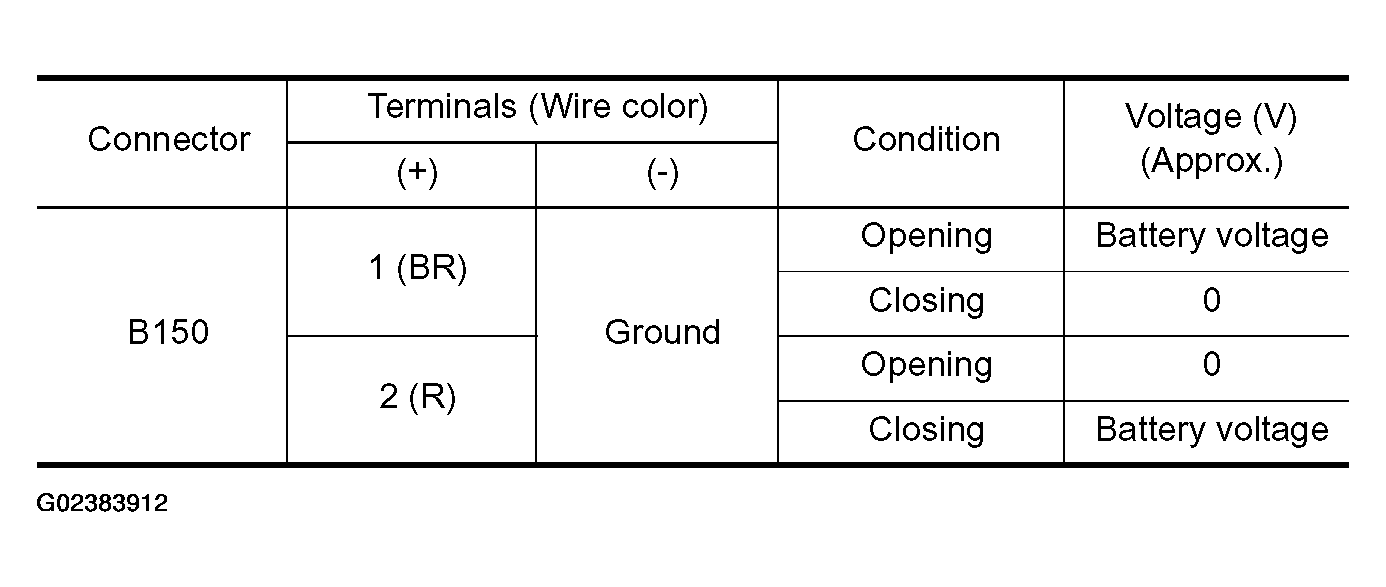

  Fig 1: Rear Power Vent Window Motor RH Connector B150 Terminal 1 And 2 Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace rear power vent window motor RH.
2. NG: Repair or replace harness.

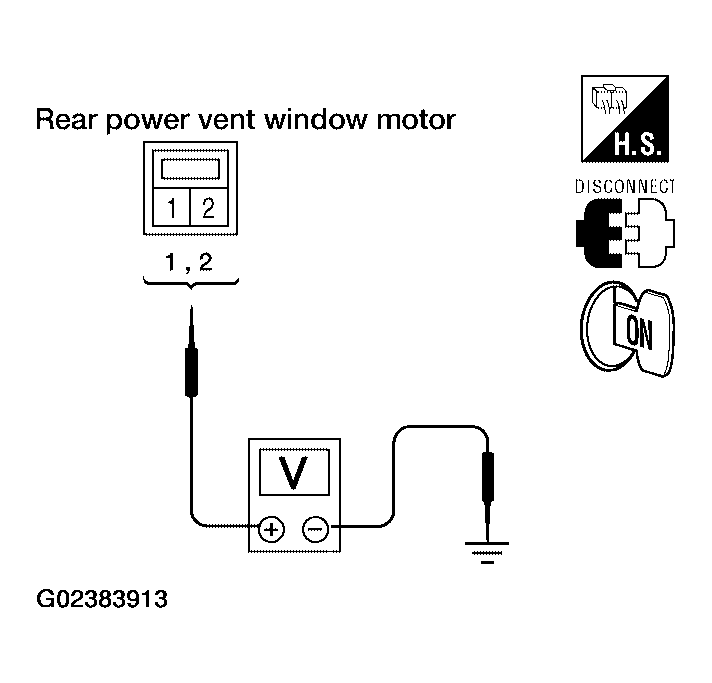

Fig 2: Checking Voltage Between Rear Power Vent Window Motor RH Connector B150 Terminal 1, 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
