Power Window Serial Link Check Rear LH or RH

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REAR POWER WINDOW SWITCH LH OR RH
1. Replace with operative rear power window control unit LH or RH.
2. Does window operate normally?
OK or NG
1. OK: Replace rear power window control unit LH or RH.
2. NG: GO TO 2.
CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch and rear power window control unit LH or RH.
3. Check continuity between main power window and door lock/unlock switch connector D7 terminal 14 and rear power window control unit LH or RH connector D209 (LH) or D309 (RH) terminal 1.
  1. 14 (LG/W) - 1 (W/V): Continuity should exist.
OK or NG
1. OK: Replace main power window and door lock/unlock switch.
2. NG: Repair or replace harness.

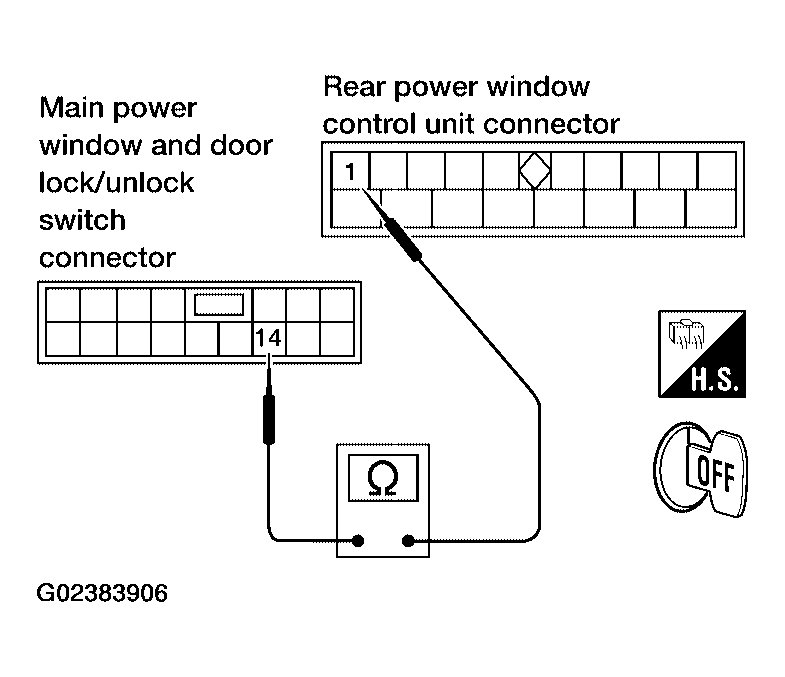

Fig 1: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch Connector D7 Terminal 14 And Rear Power Window Control Unit Connector D209 Or D309 Terminal 1
Courtesy of NISSAN MOTOR CO., U.S.A.
