Fig. 1

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

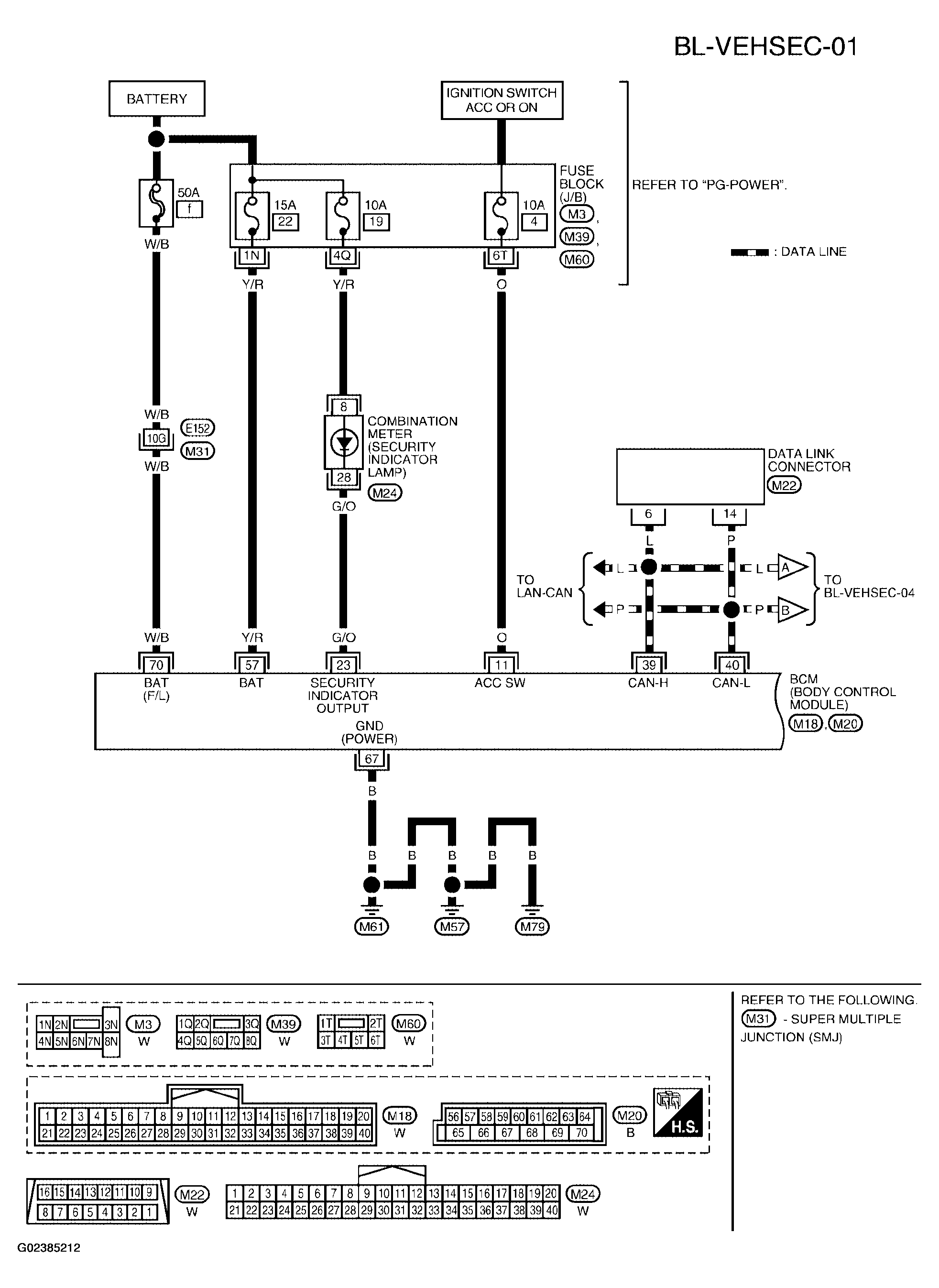

Fig 1: Wiring Diagram - BL-VEHSEC-01
G02385212Courtesy of NISSAN MOTOR CO., U.S.A.
