Hood Switch Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HOOD SWITCH
Check hood switch and hood fitting condition.

OK or NG
1. OK: GO TO 2.
2. NG: Adjust installation of hood switch.
CHECK HOOD SWITCH INPUT SIGNAL
With CONSULT-II

Check "HOOD SW" in "DATA MONITOR" mode with CONSULT-II.
1. When hood is open: HOOD SW ON
2. When hood is closed: HOOD SW OFF

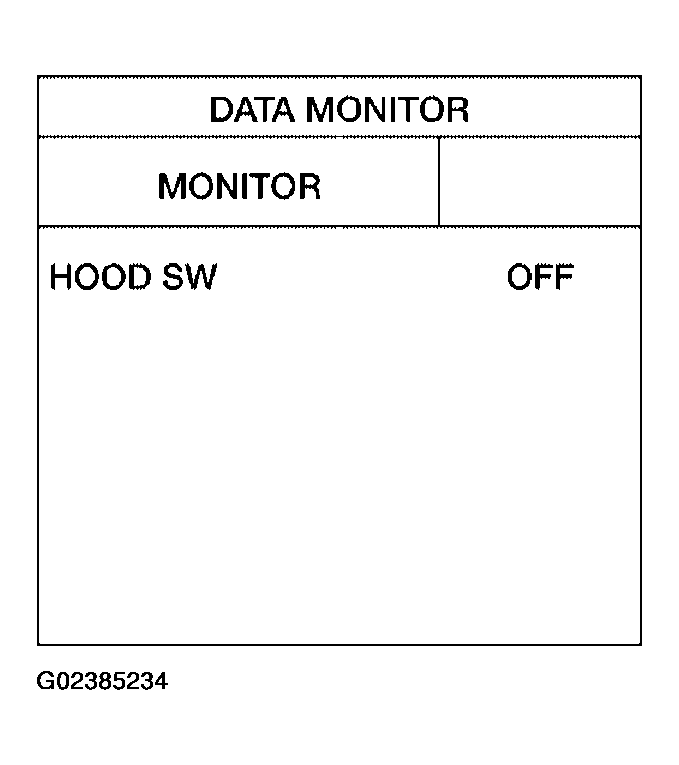

  Fig 1: Identifying "HOOD SW" In Data Monitor Mode
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

Check voltage between IPDM E/R harness connector E122 terminal 41 and ground.

Refer to Fig 2 .

OK or NG
1. OK: Hood switch is OK.
2. NG: GO TO 3.

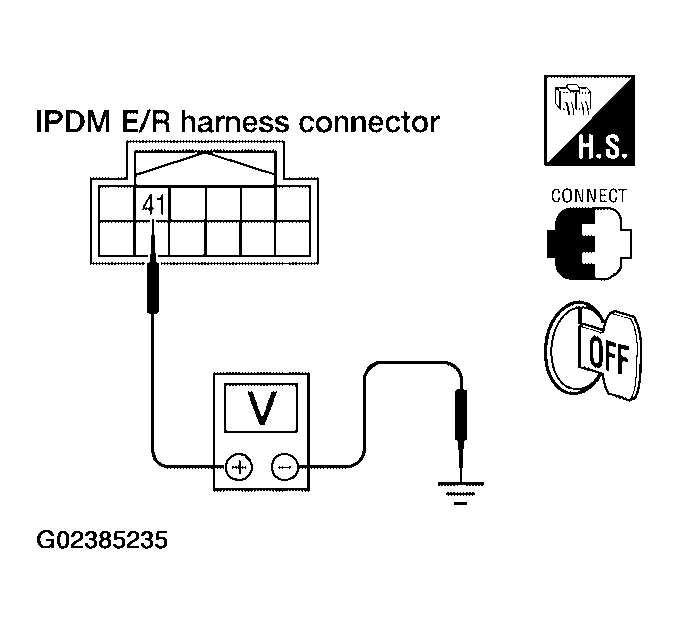

Fig 2: Checking Voltage Between IPDM E/R Harness Connector E122 Terminal 41 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HOOD SWITCH
1. Turn ignition switch OFF.
2. Disconnect hood switch connector.
3. Check continuity between hood switch E6 terminals 1 and 2.

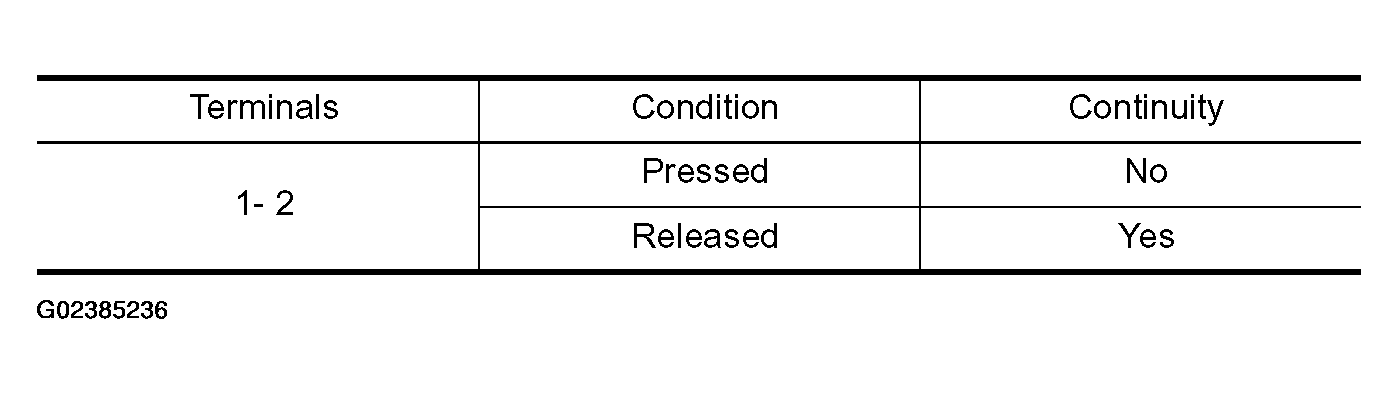

  Fig 3: Hood Switch Terminal Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

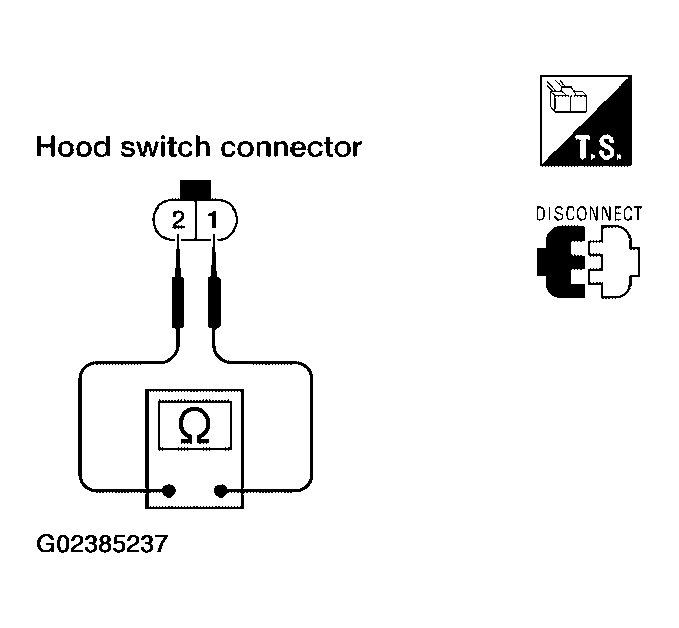

  Fig 4: Checking Continuity Between Hood Switch E6 Terminals 1 And 2
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check the following.
  - Hood switch ground circuit.
  - Harness for open or short between hood switch and IPDM E/R
2. NG: Replace hood switch.
