Symptom Chart

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always check the "Trouble Diagnosis Procedure" before troubleshooting. Refer to "TROUBLE DIAGNOSIS PROCEDURE ".
Always check keyfob battery before replacing keyfob. Refer to "KEYFOB BATTERY AND FUNCTION CHECK ".
The panic alarm operation and power back door opener operation of remote keyless entry system do not activate with the ignition key inserted in the ignition key cylinder.
Use Remote Keyless Entry Tester J-43241 (follow instructions on tester) to check operation of keyfob before replacing keyfob.

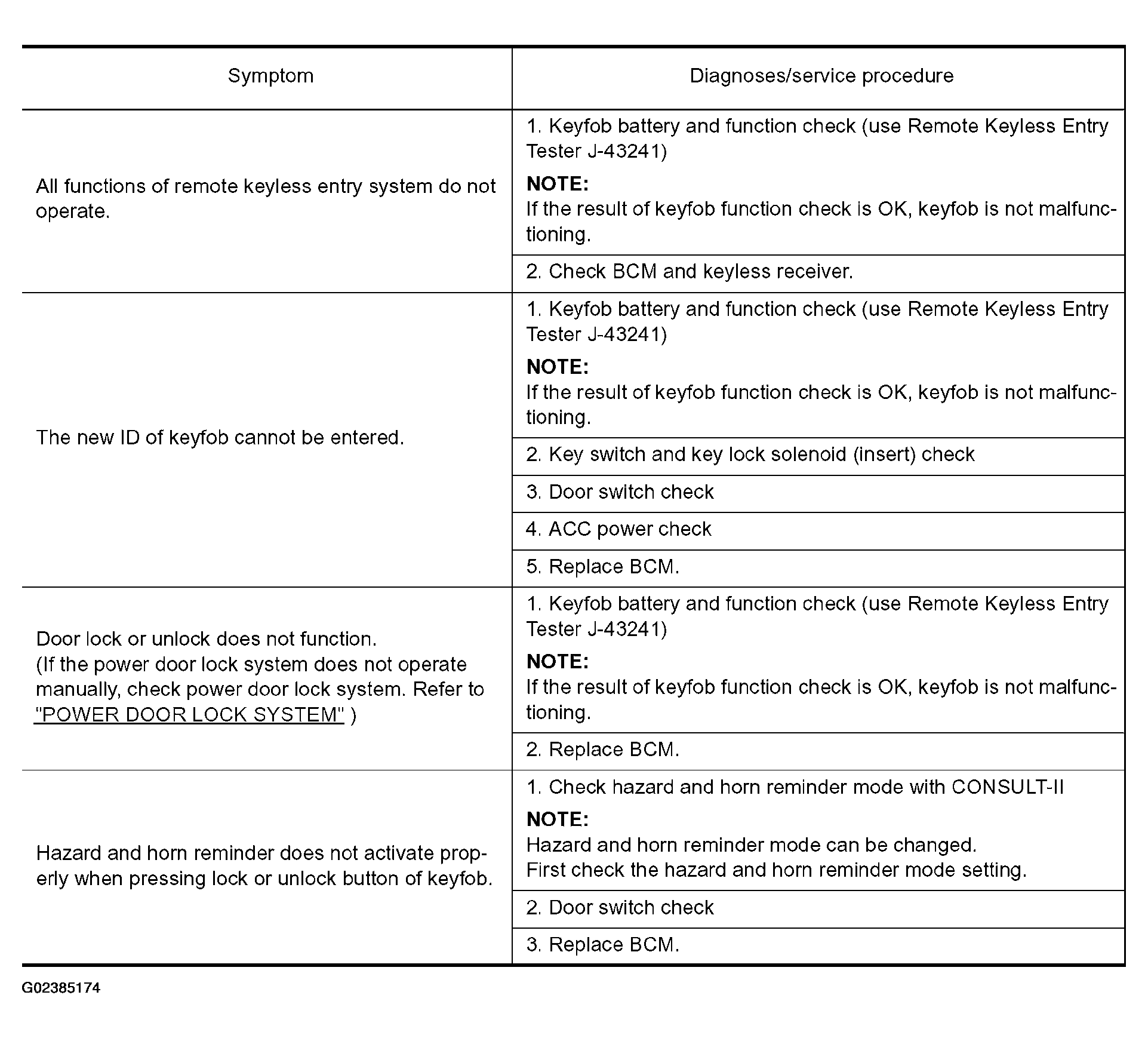

Fig 1: Remote Keyless Entry - Trouble Diagnoses Symptom Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

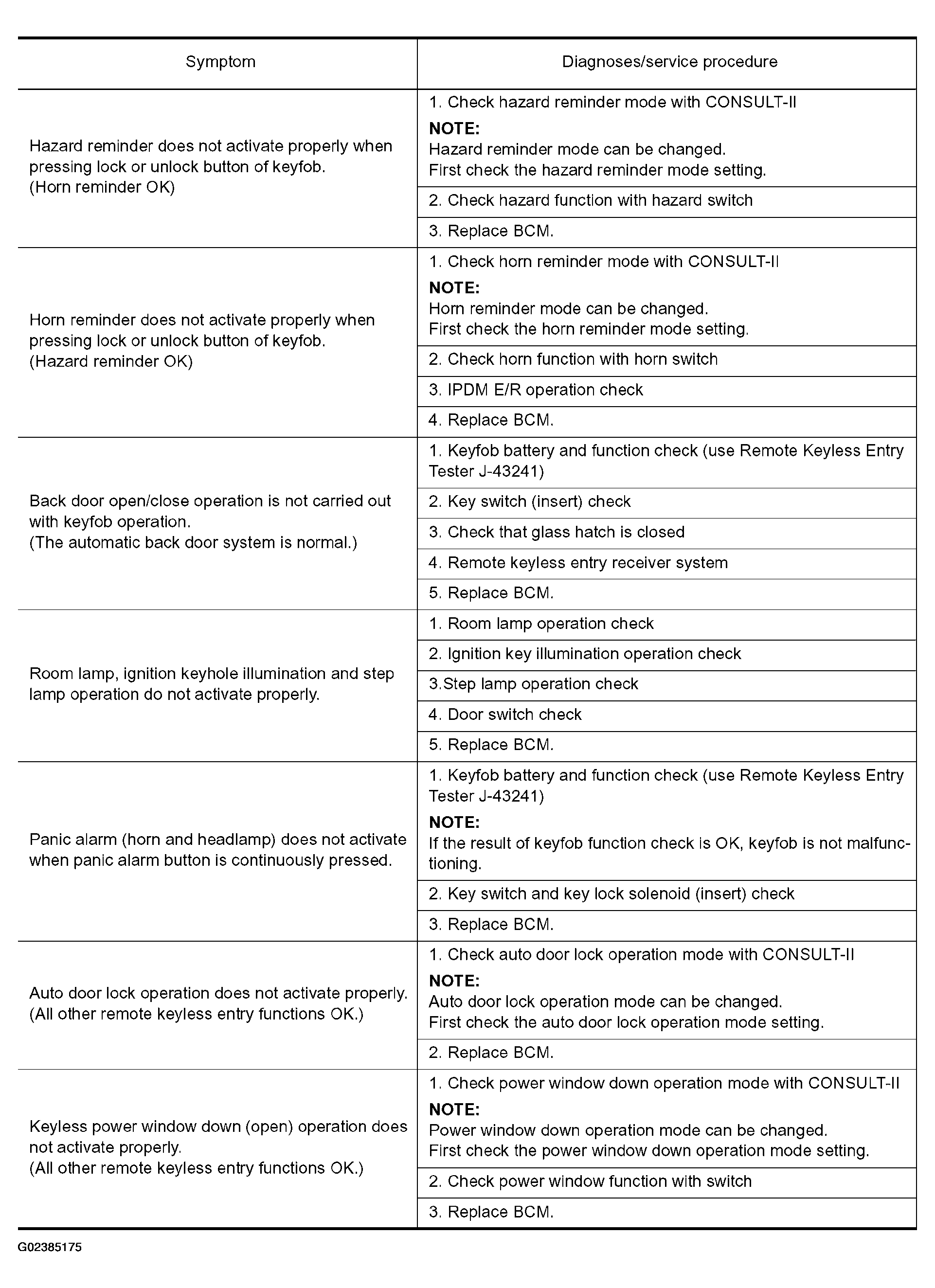

Fig 2: Remote Keyless Entry - Trouble Diagnoses Symptom Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
