Glass Hatch Switch Circuit Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GLASS HATCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect glass hatch switch.
3. Check continuity between glass hatch switch terminal 2 and ground.

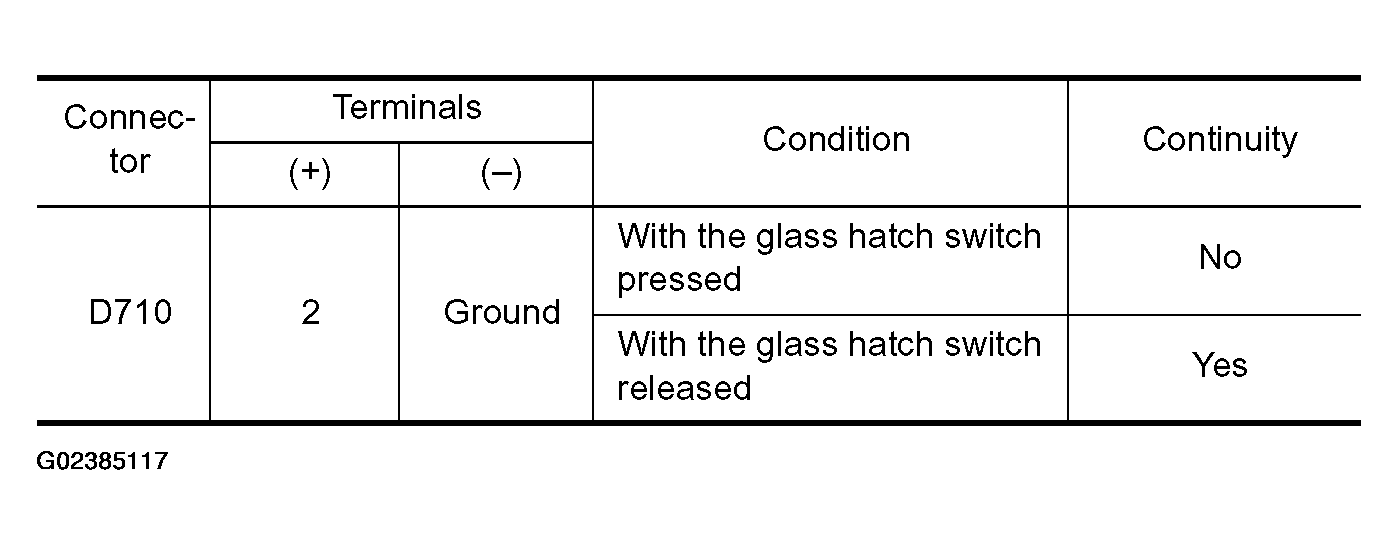

  Fig 1: Glass Hatch Switch Terminal 2 And Ground Continuity Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

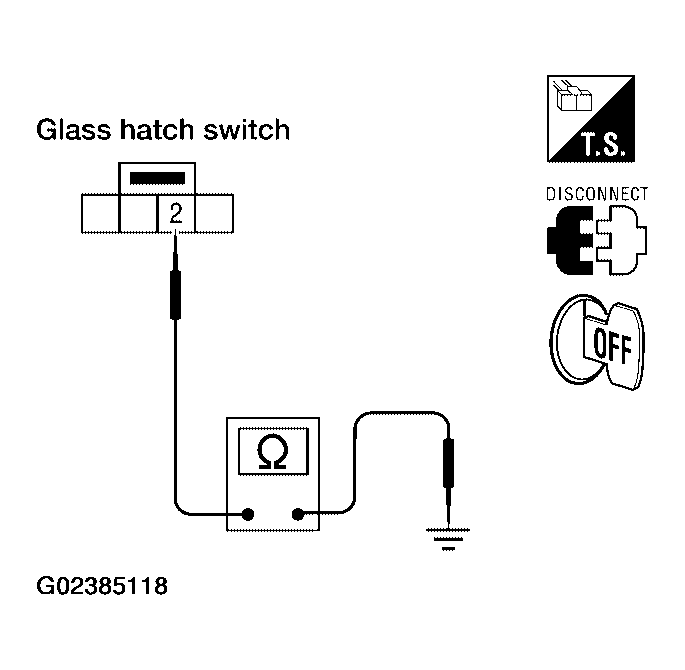

  Fig 2: Checking Continuity Between Glass Hatch Switch Terminal 2 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace glass hatch switch.
CHECK HARNESS CONTINUITY
1. Disconnect BCM.
2. Check continuity between BCM connector M18 terminal 30 and glass hatch switch connector D710 terminal 2.
  1. 30 (Y/R) - 2 (Y/R): Continuity should exist.
3. Check continuity between BCM connector M18 terminal 30 and ground.
  1. 30 (Y/R) - Ground: Continuity should not exist.
OK or NG
1. OK: Glass hatch switch circuit is OK.
2. NG: Repair or replace harness.

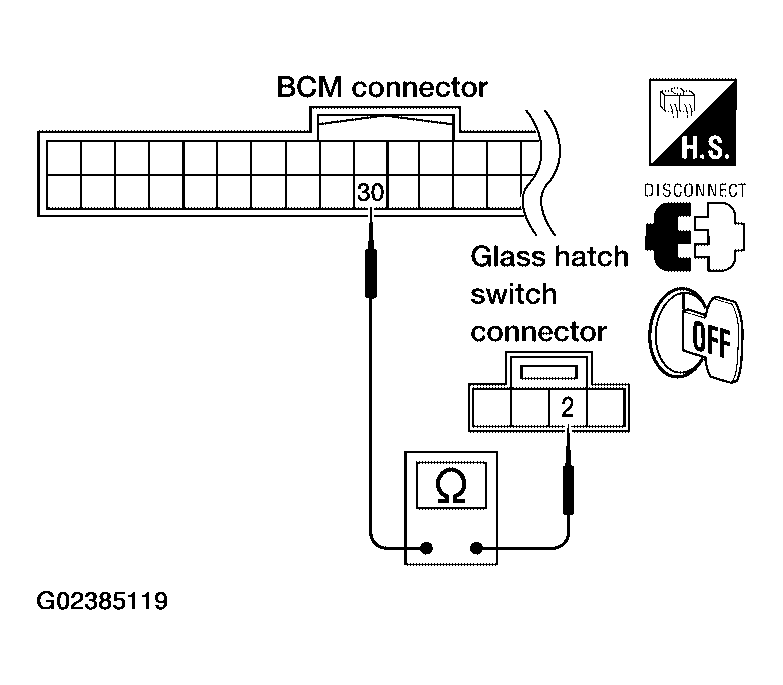

Fig 3: Checking Continuity Between BCM Connector M18 Terminal 30 And Glass Hatch Switch Connector D710 Terminal 2
Courtesy of NISSAN MOTOR CO., U.S.A.
