Glass Hatch Lock Actuator Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GLASS HATCH LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M19 terminal 53 and ground.

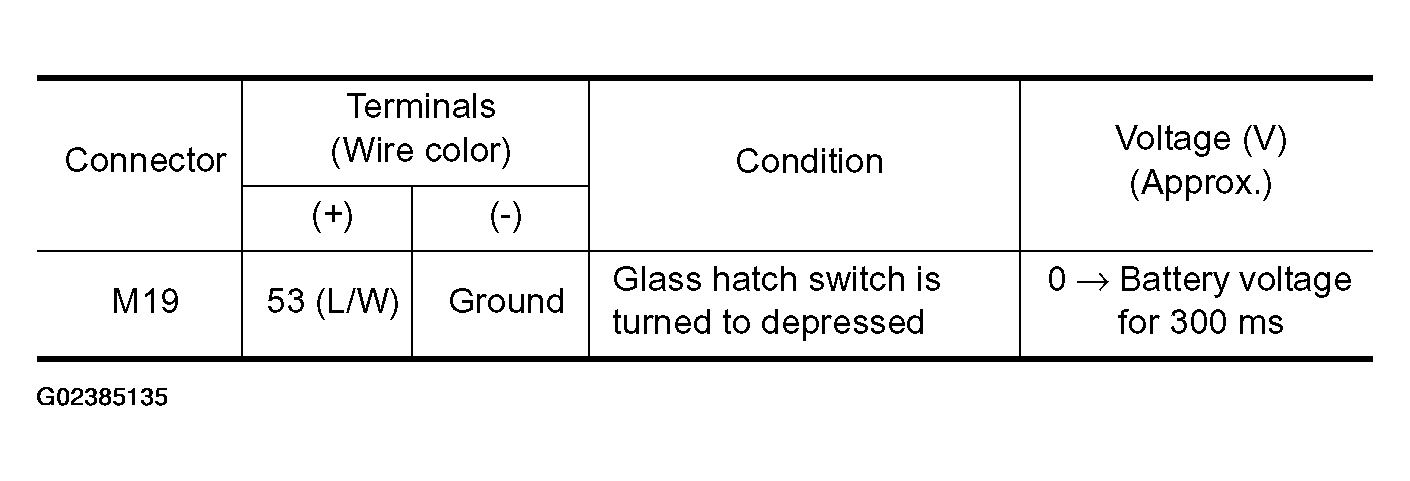

  Fig 1: BCM Connector M19 And Ground Voltage Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

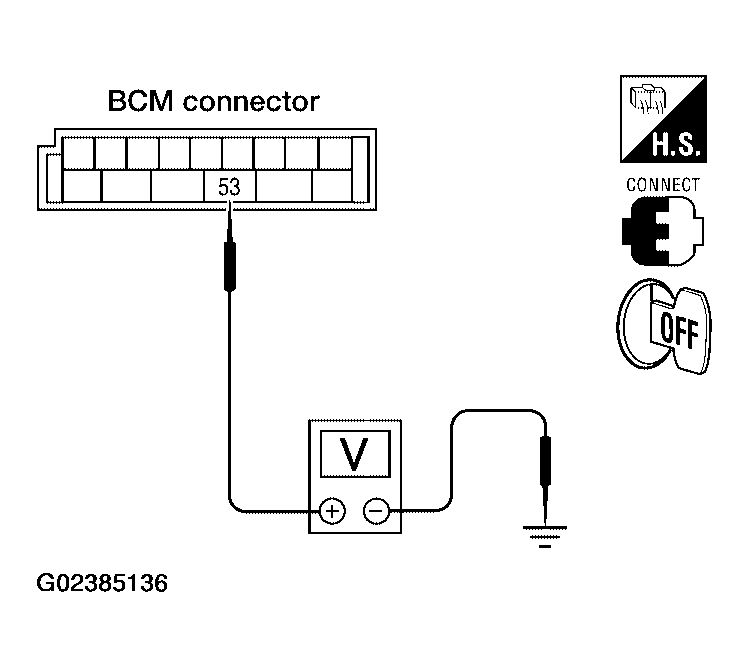

  Fig 2: Checking Voltage Between BCM Connector M19 Terminal 53 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
CHECK GLASS HATCH LOCK ACTUATOR HARNESS
1. Disconnect BCM and glass hatch lock actuator.
2. Check continuity between BCM connector M19 terminal 53 and glass hatch lock actuator connector D711 terminal 3.

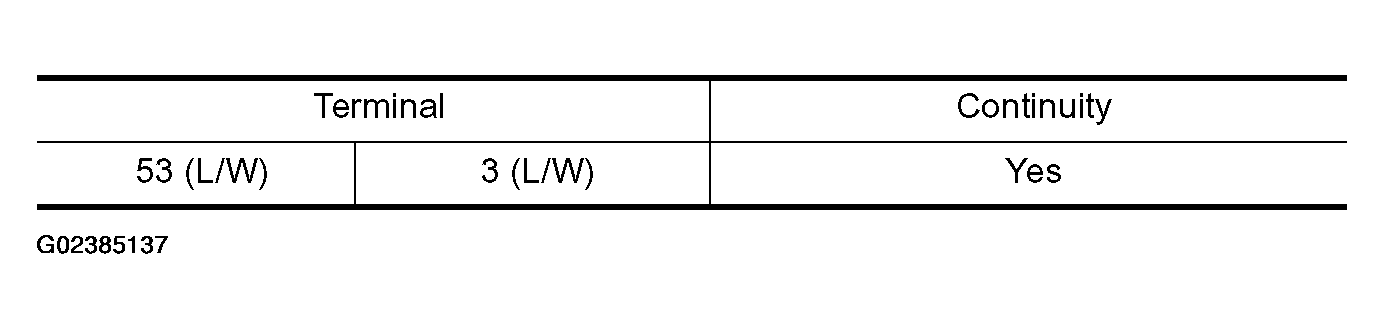

  Fig 3: BCM Terminal 53 And Glass Hatch Lock Actuator Terminal 3 Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between BCM connector M19 terminals 53 and ground.

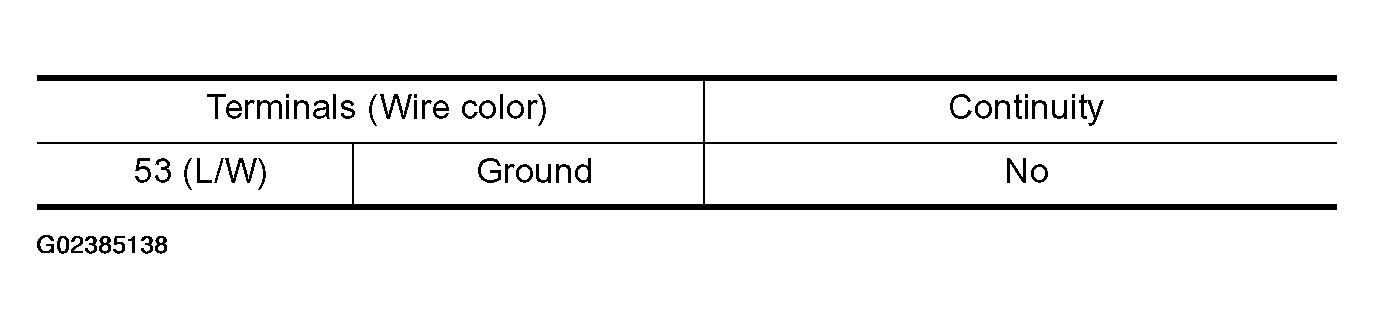

  Fig 4: BCM Terminal 53 And Ground Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness.

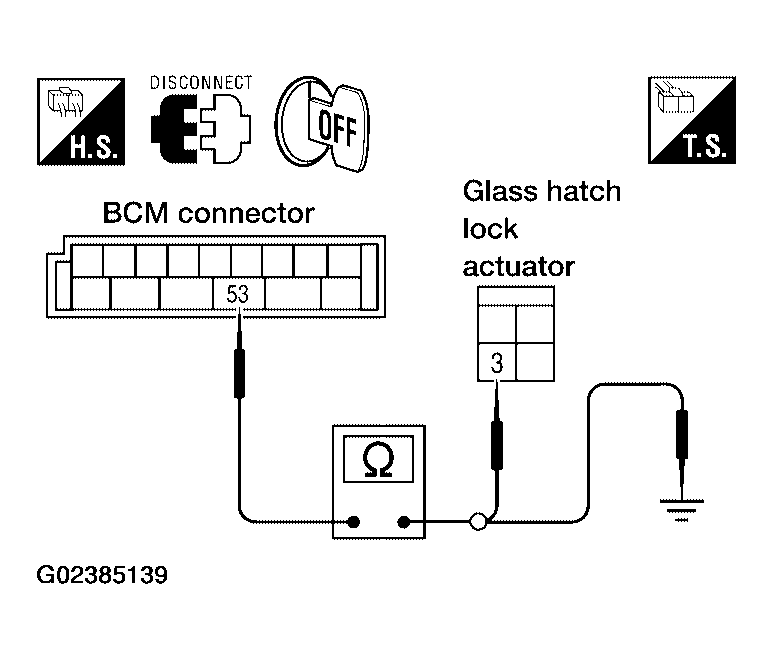

Fig 5: Checking Continuity Between BCM Connector M19 Terminal 53 And Glass Hatch Lock Actuator Connector D711 Terminal 3
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GLASS HATCH LOCK ACTUATOR GROUND CIRCUIT
1. Disconnect glass hatch lock actuator.
2. Check continuity between glass hatch lock actuator connector D711 terminal 1 and ground.

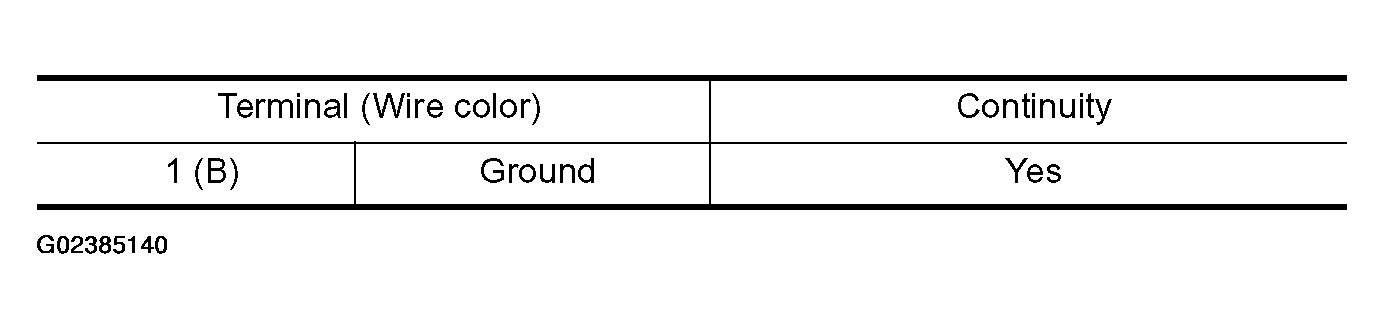

  Fig 6: Glass Hatch Lock Actuator Terminal 1 And Ground Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace glass hatch lock actuator. Refer to "BACK DOOR LOCK ".
2. NG: Repair or replace harness.

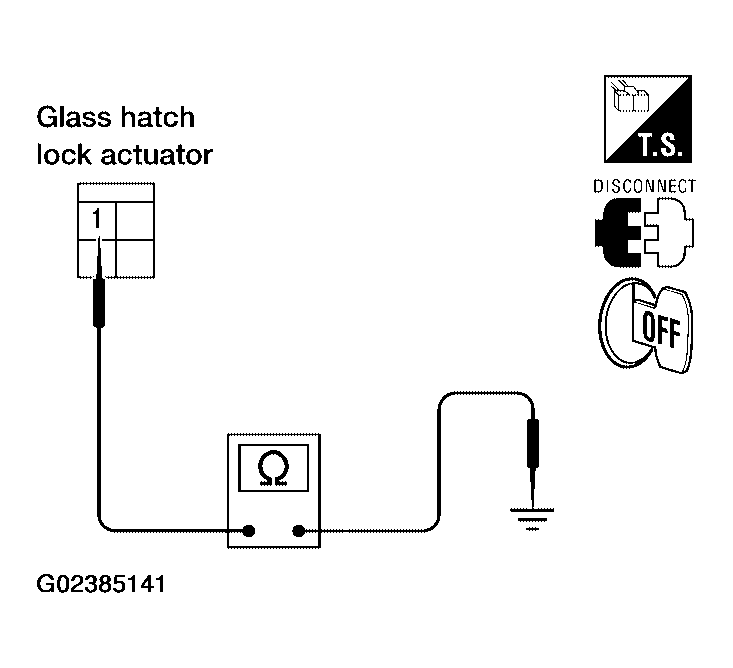

Fig 7: Checking Continuity Between Glass Hatch Lock Actuator Connector D711 Terminal 1 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
