Front Door Lock Actuator RH Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FRONT DOOR LOCK ACTUATOR RH SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 65, 66 and ground.

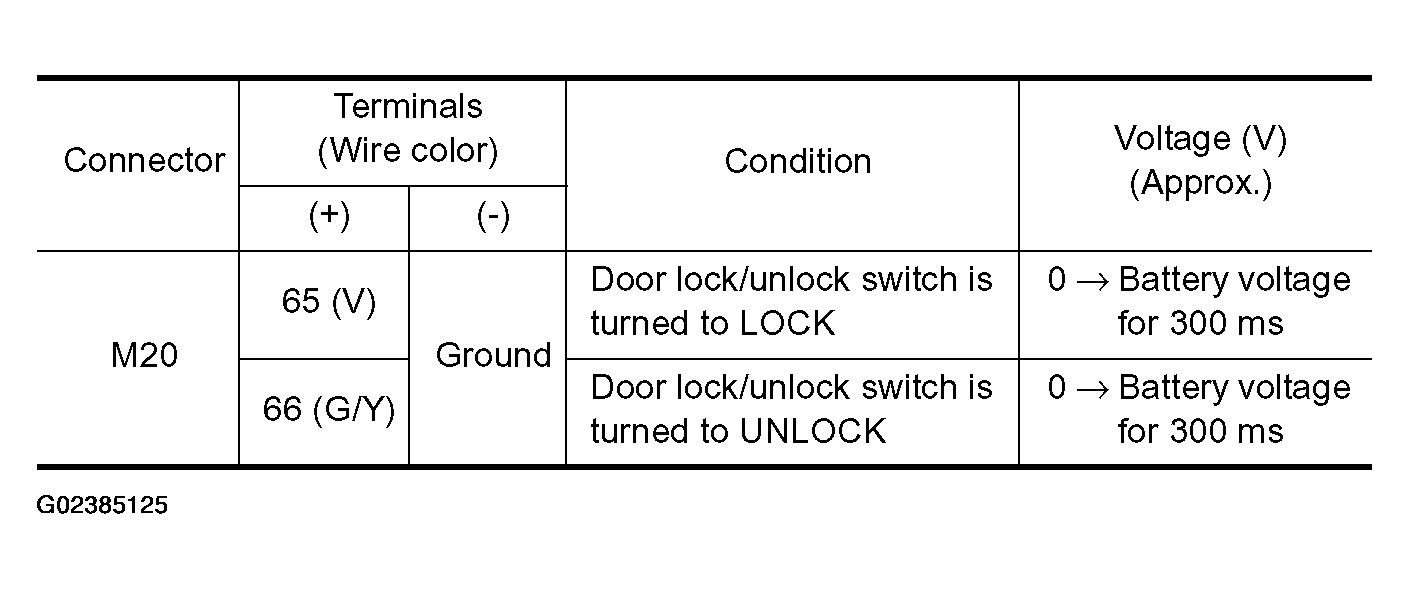

  Fig 1: BCM Connector M20 And Ground Voltage Specifications Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

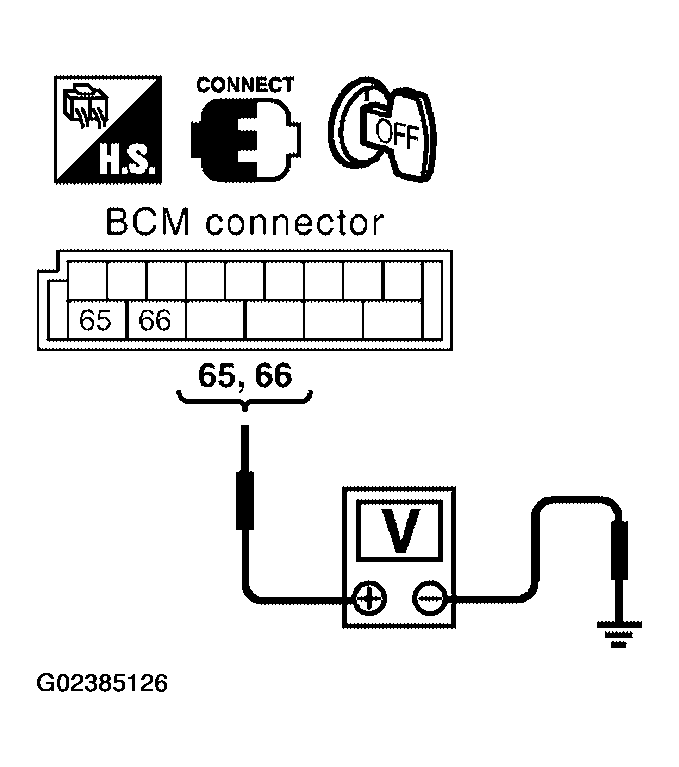

  Fig 2: Checking Voltage Between BCM Connector M20 Terminals 65, 66 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
CHECK FRONT DOOR LOCK ACTUATOR RH HARNESS
1. Disconnect BCM and front door lock actuator RH.
2. Check continuity between BCM connector M20 terminals 65, 66 and front door lock actuator RH D114 terminals 2, 3.

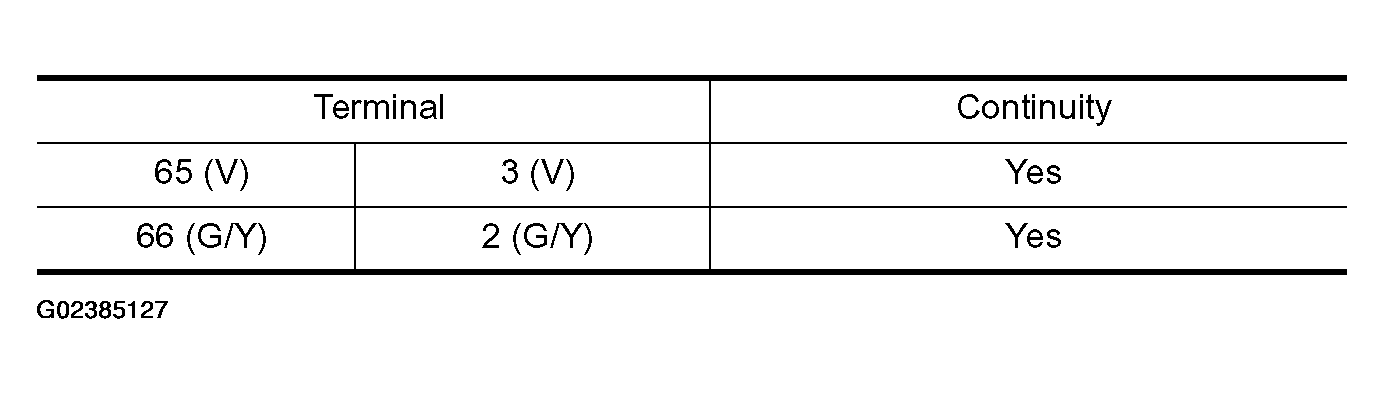

  Fig 3: BCM Connector M20 Terminals 65, 66 And Front Door Lock Actuator RH D114 Terminals 2 And 3 Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between BCM connector M20 terminals 65, 66 and ground.

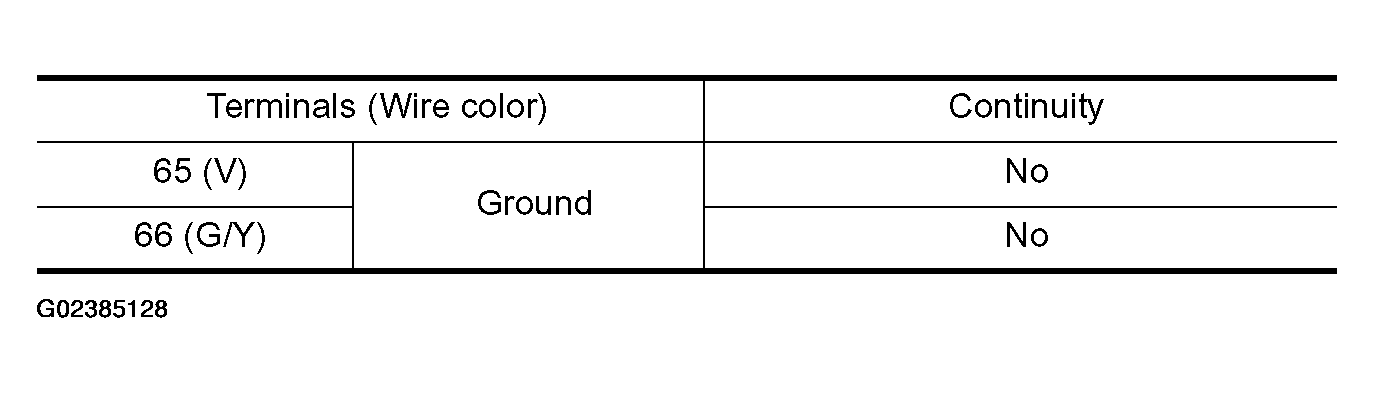

  Fig 4: BCM Connector M20 Terminals 65, 66 And Ground Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace front door lock actuator RH. Refer to "FRONT DOOR LOCK ".
2. NG: Repair or replace harness.

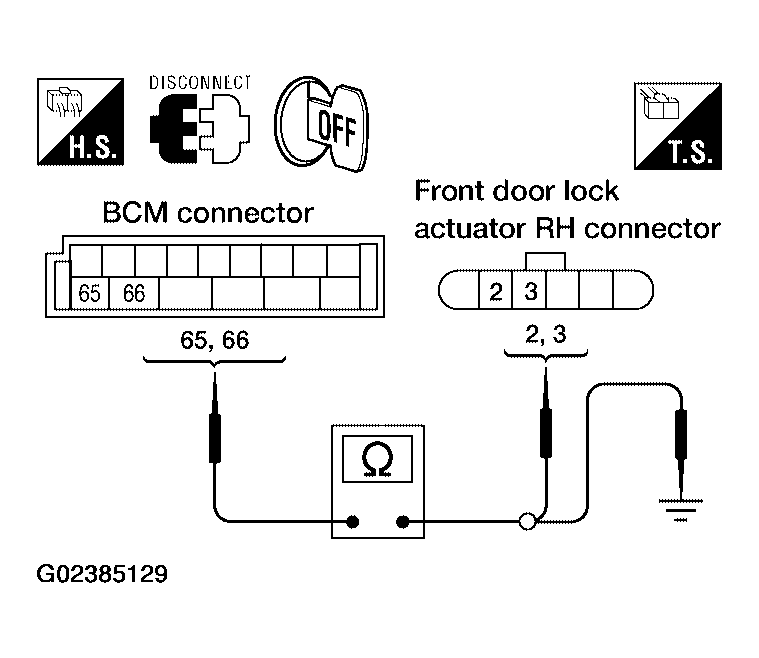

Fig 5: Checking Continuity Between BCM Connector M20 Terminals 65, 66 And Front Door Lock Actuator RH D114 Terminals 2 And 3
Courtesy of NISSAN MOTOR CO., U.S.A.
