Symptom Matrix Chart 1

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Self-diagnosis related item

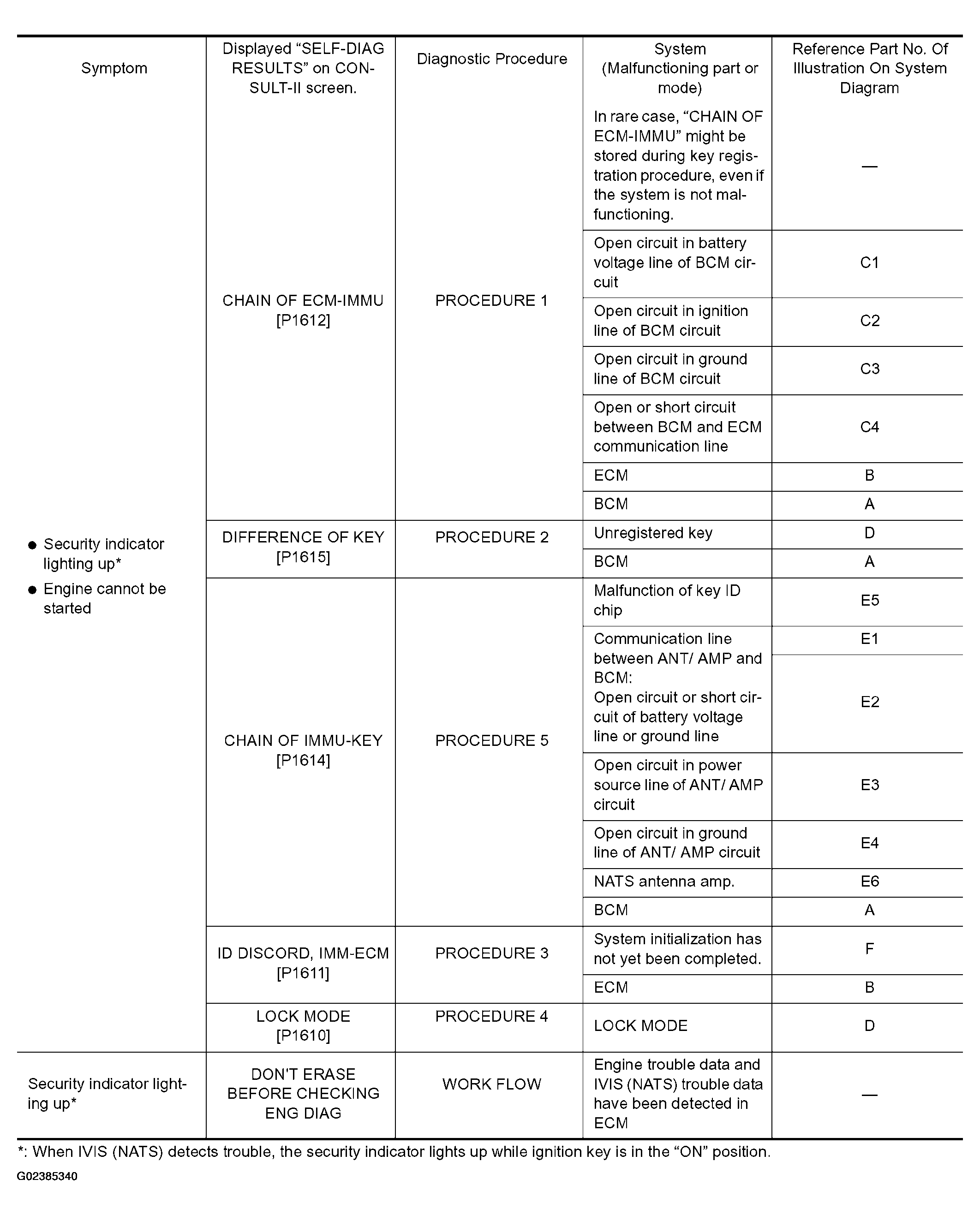

Fig 1: Trouble Diagnoses - Symptom Matrix Chart 1
G02385340Courtesy of NISSAN MOTOR CO., U.S.A.
