Section 1222 (Body, Lock & Security System)
>>
IVIS (INFINITI Vehicle Immobilizer System-NATS)
>>
Trouble Diagnoses
>>
Diagnostic System Diagram
Diagnostic System Diagram
WARNING:
This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

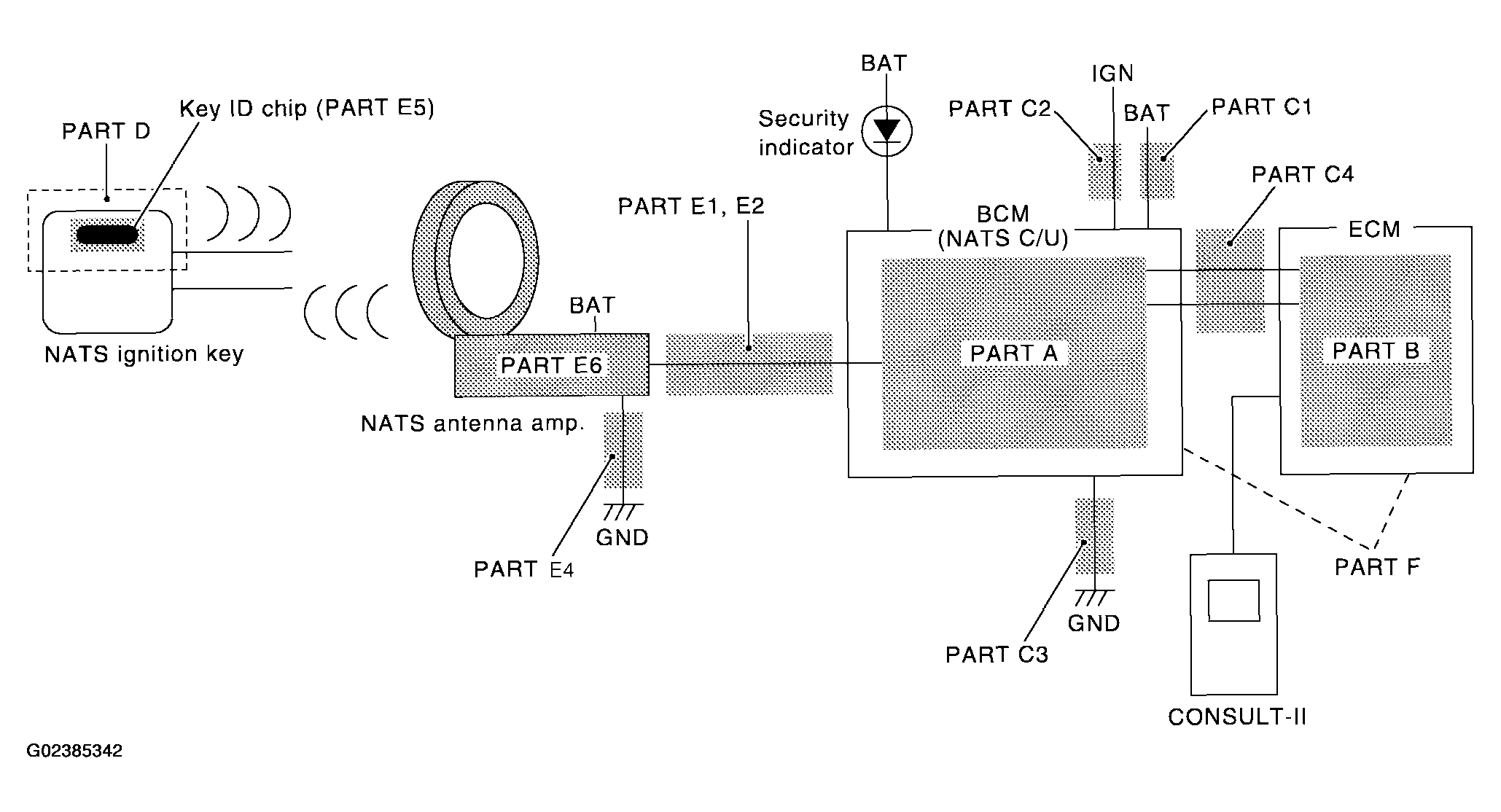

Fig 1: Diagnostic System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
