Removal and Installation of Hood Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the hood striker with proper material to prevent it from falling.
    WARNING: Body injury may occur if no supporting rod is holding the hood open when removing the damper stay.
  2. Remove the hinge nuts from the hood to remove the hood assembly.
    CAUTION: Operate with two workers, because of its heavy weight.

    Installation is in the reverse order of removal.

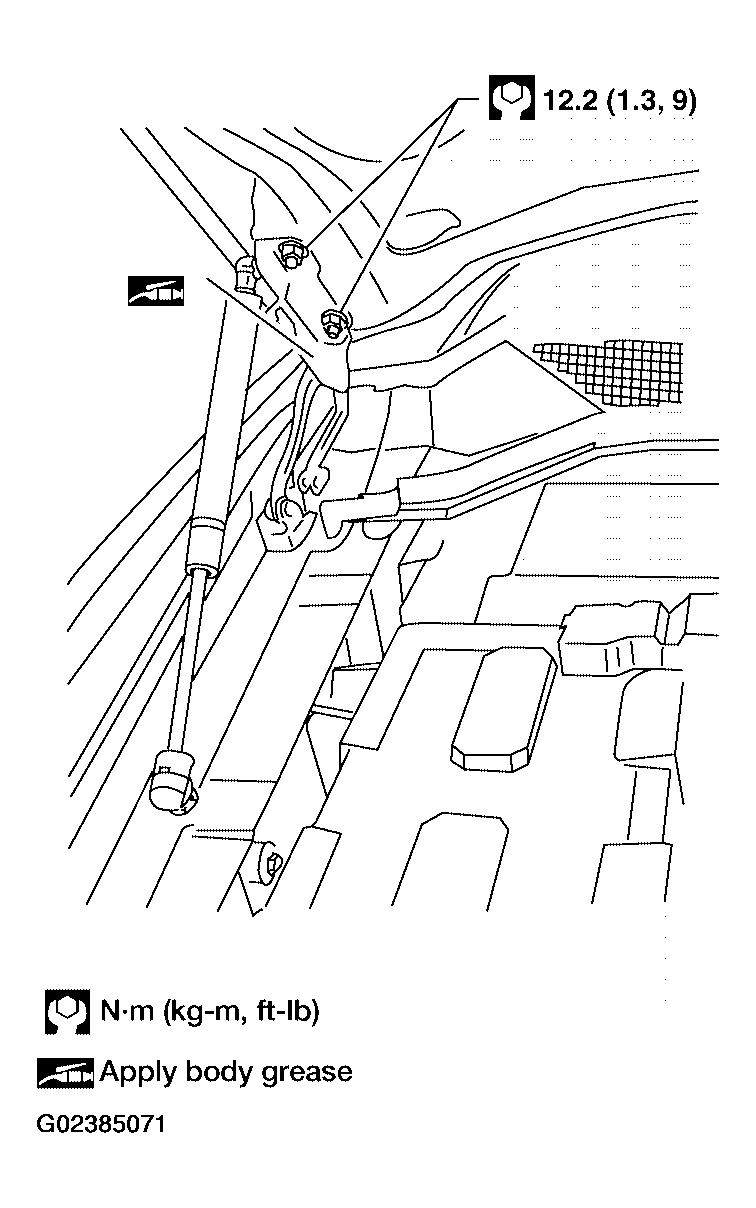

    Fig 1: Hood Assembly Nuts With Torque Specifications
    G02385071Courtesy of NISSAN MOTOR CO., U.S.A.
