Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing and installing the door assembly, support the door with a jack and shop cloth to protect the door and body.
  • When removing and installing door assembly, be sure to carry out the fitting adjustment.
  • Check the hinge rotating part for poor lubrication. If necessary, apply "body grease".
  1. Remove the door window and module assembly. Refer to "FRONT DOOR GLASS AND REGULATOR ".
  2. Remove the door harness.
  3. Remove the check link cover.
  4. Remove the check link bolt from the hinge pillar.

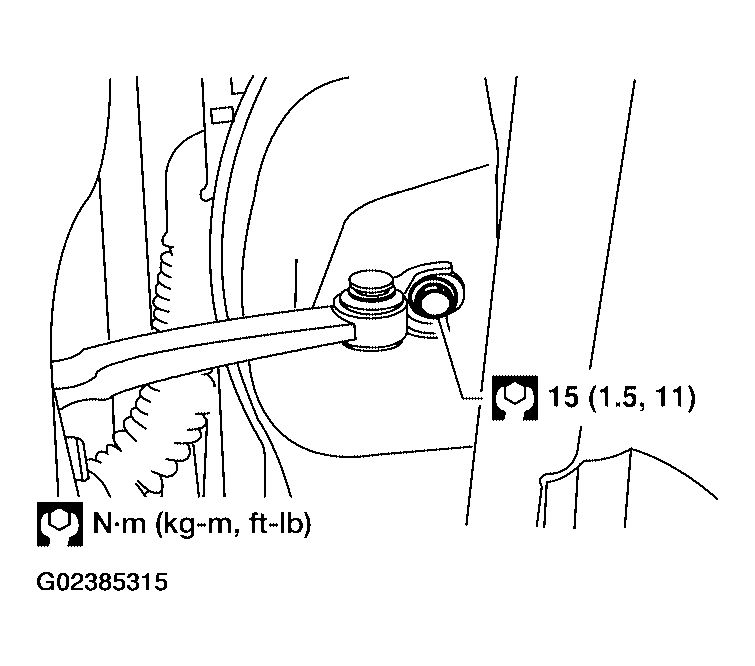

    Fig 1: Check Link Bolt With Torque Specifications
    G02385315Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the door-side hinge nuts and bolts, and remove the door assembly.

    Installation is in the reverse order of removal.

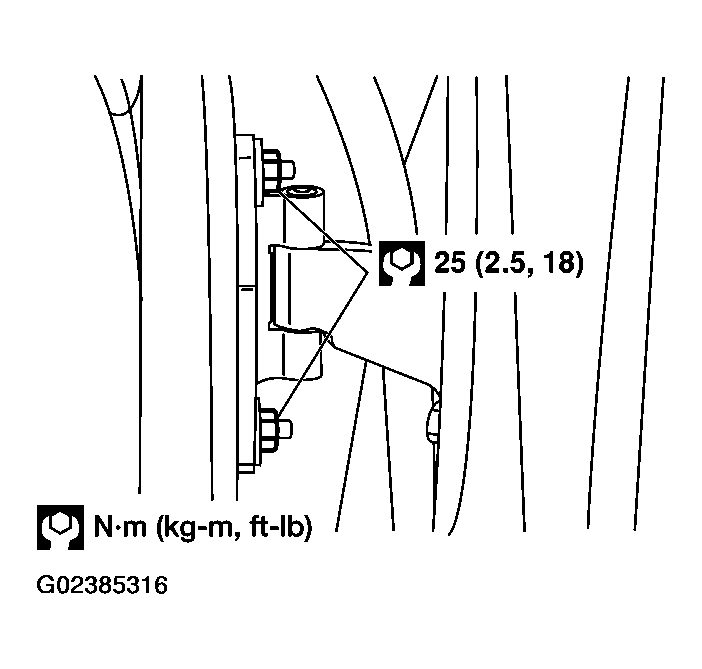

    Fig 2: Door-Side Hinge Nuts With Torque Specifications
    G02385316Courtesy of NISSAN MOTOR CO., U.S.A.
