Striker Adjustment

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the striker so that it becomes parallel with the lock insertion direction.

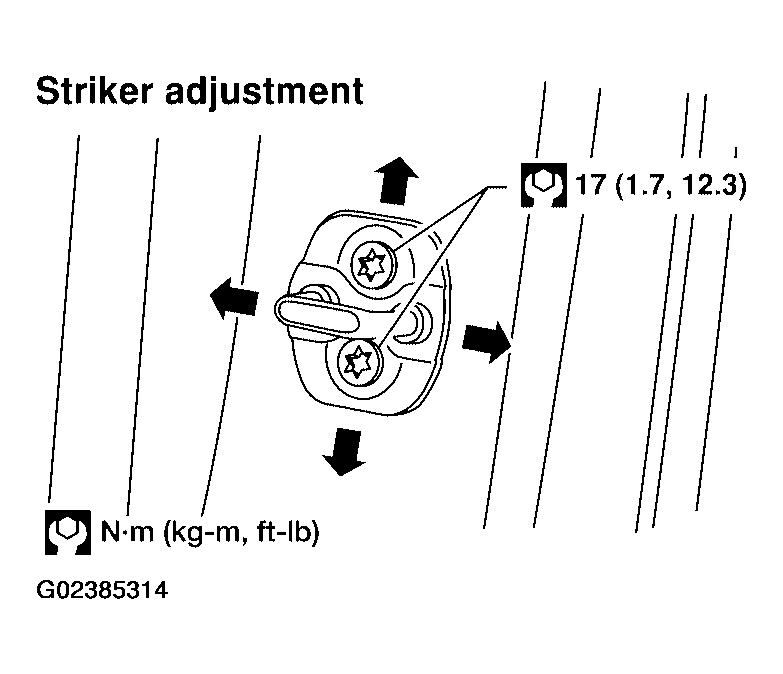

    Fig 1: Striker Adjustment With Torque Specifications
    G02385314Courtesy of NISSAN MOTOR CO., U.S.A.
