Outer Sill

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Service Joint

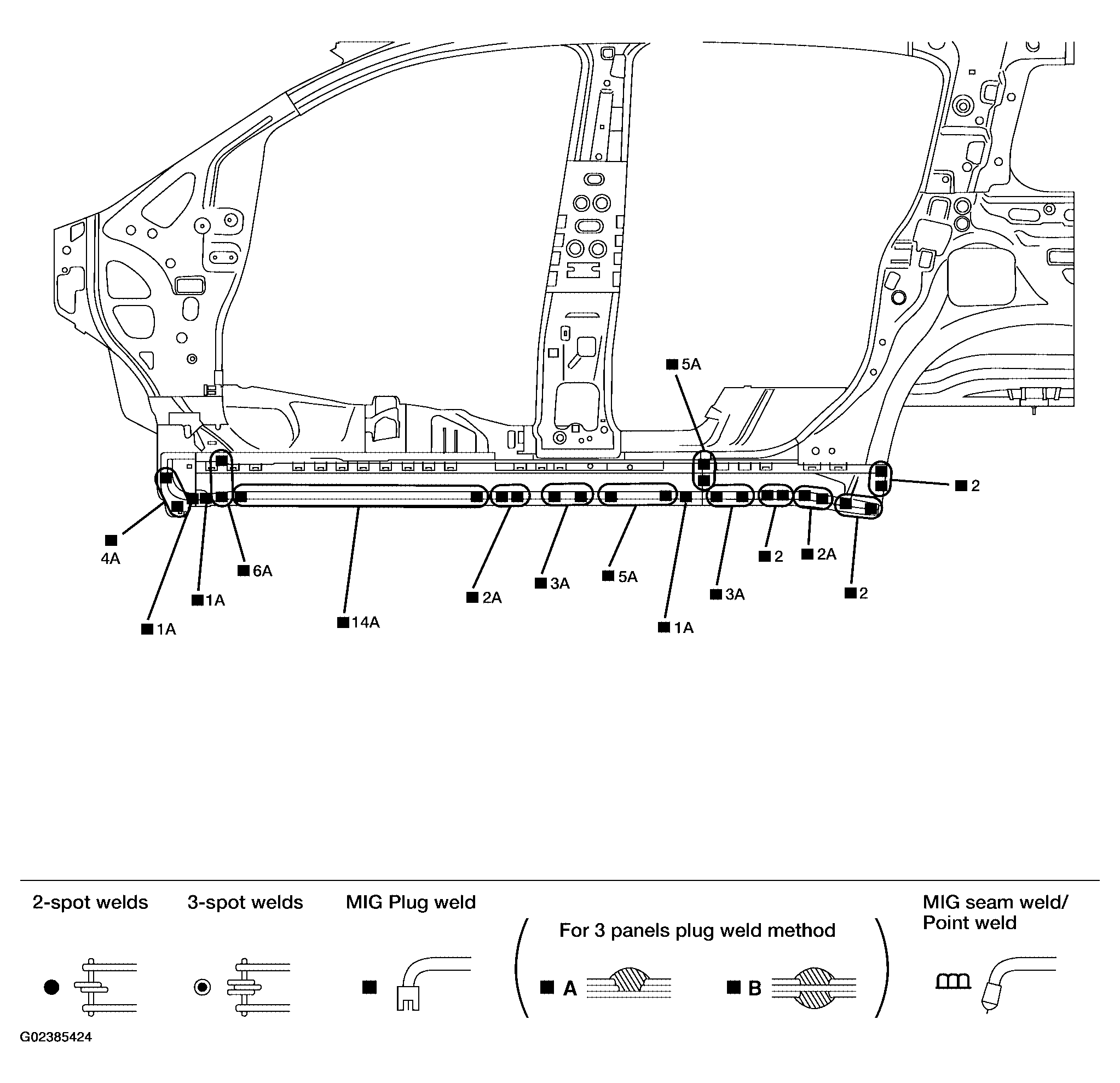

Fig 1: Identifying Outer Sill Service Joint
G02385424Courtesy of NISSAN MOTOR CO., U.S.A.
