Crush Horn: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Work after 1st crossmember has been removed.
Service Joint

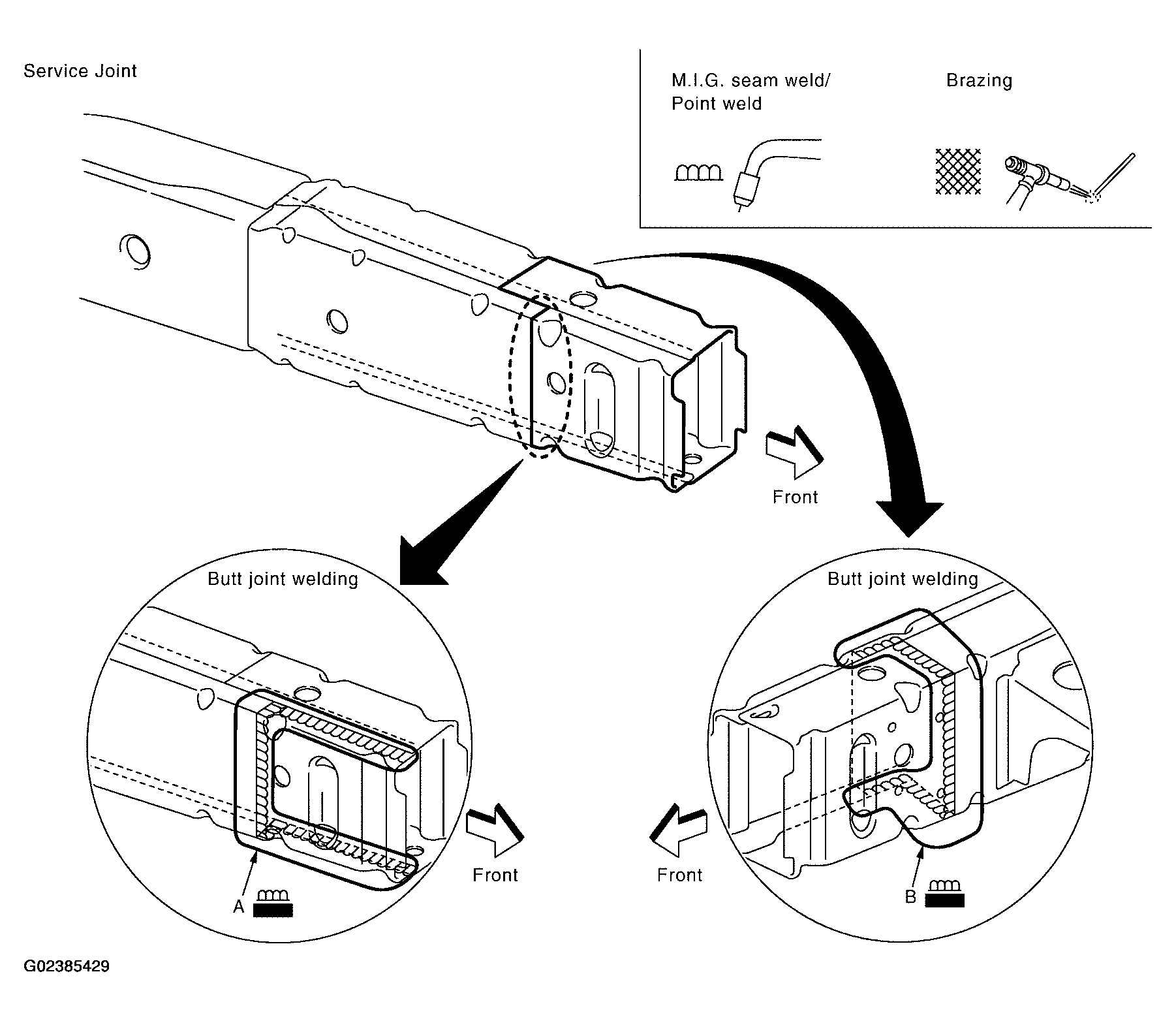

Fig 1: Identifying Crush Horn Service Joint
Courtesy of NISSAN MOTOR CO., U.S.A.

Portions to be welded:

Inner side rail crush horn, inner side rail crush horn and outer side rail crush horn.
Outer side rail crush horn, outer side rail crush horn and inner side rail crush horn.
