Installation Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

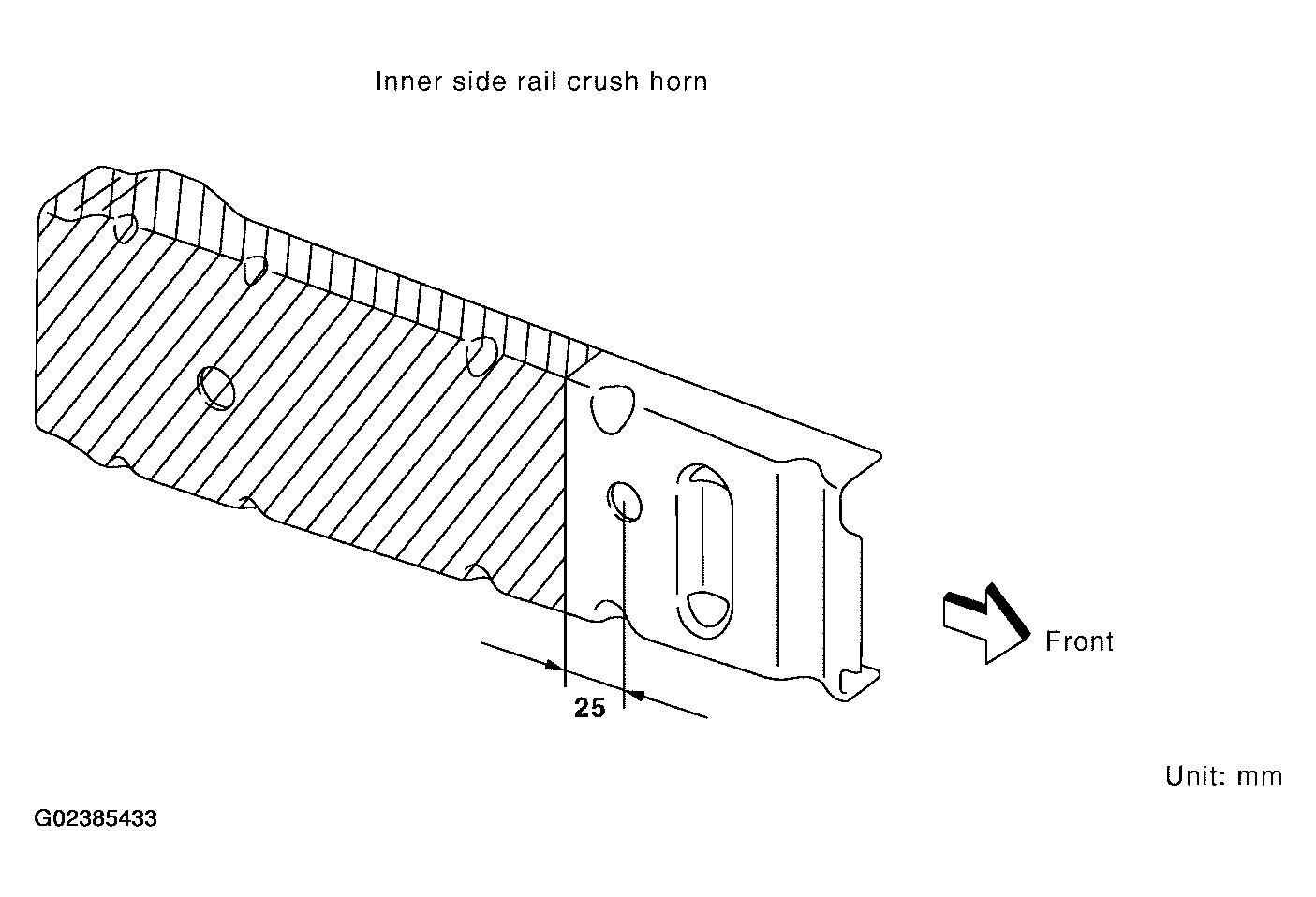

Fig 1: Scribing A Straight Line On The Inner Side Rail Crush Horn Along The Hole Center

Courtesy of NISSAN MOTOR CO., U.S.A.

Scribe a straight line on the inner side rail crush horn along the hole center as shown in the figure. Cut off inner side rail crush horn along scribed line.

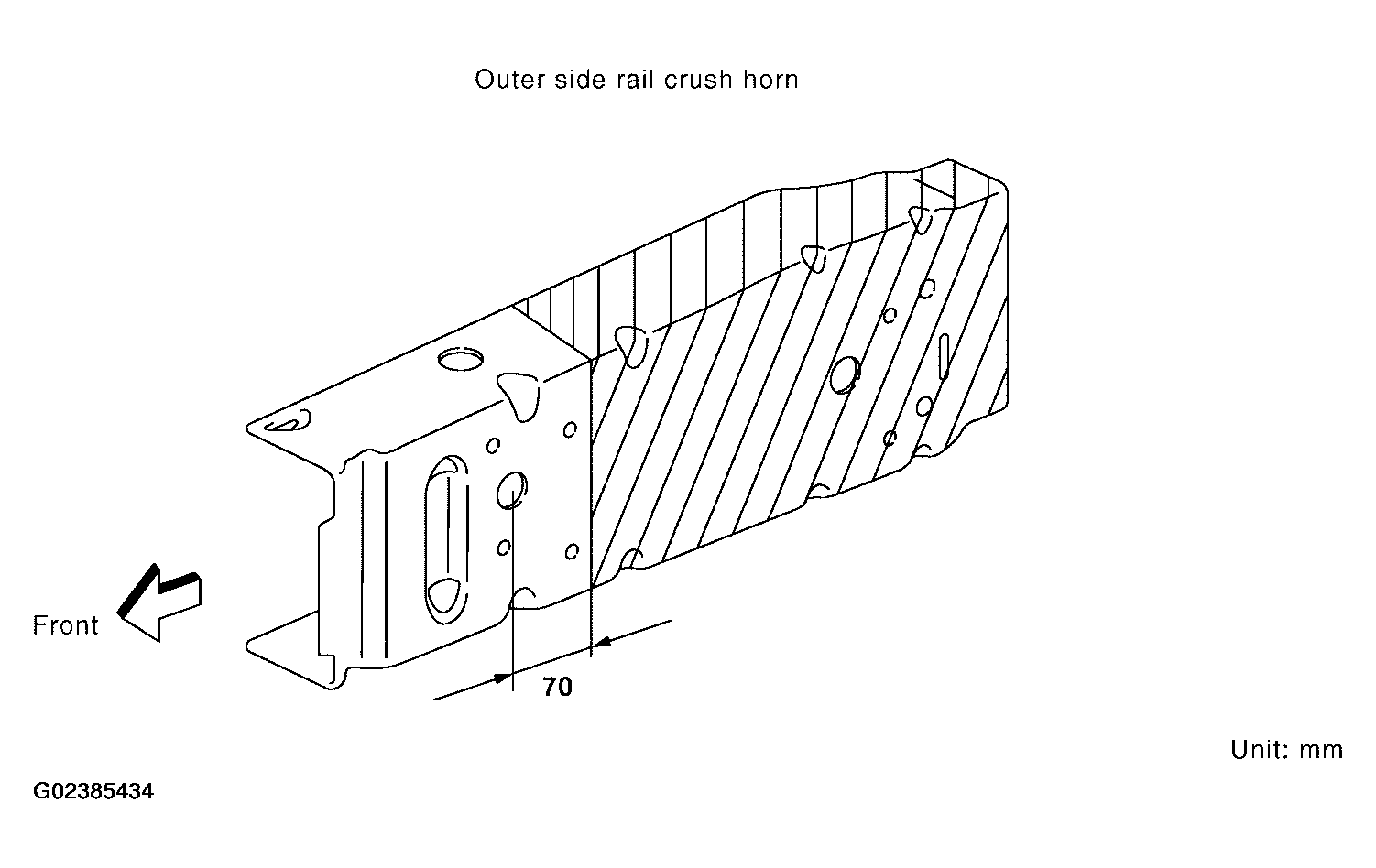

Fig 2: Scribing A Straight Line On The Outer Side Rail Crush Horn Along The Hole Center
Courtesy of NISSAN MOTOR CO., U.S.A.
Scribe a straight line on the outer side rail crush horn along the hole center as shown in the figure. Cut off outer side rail crush horn along scribed line.

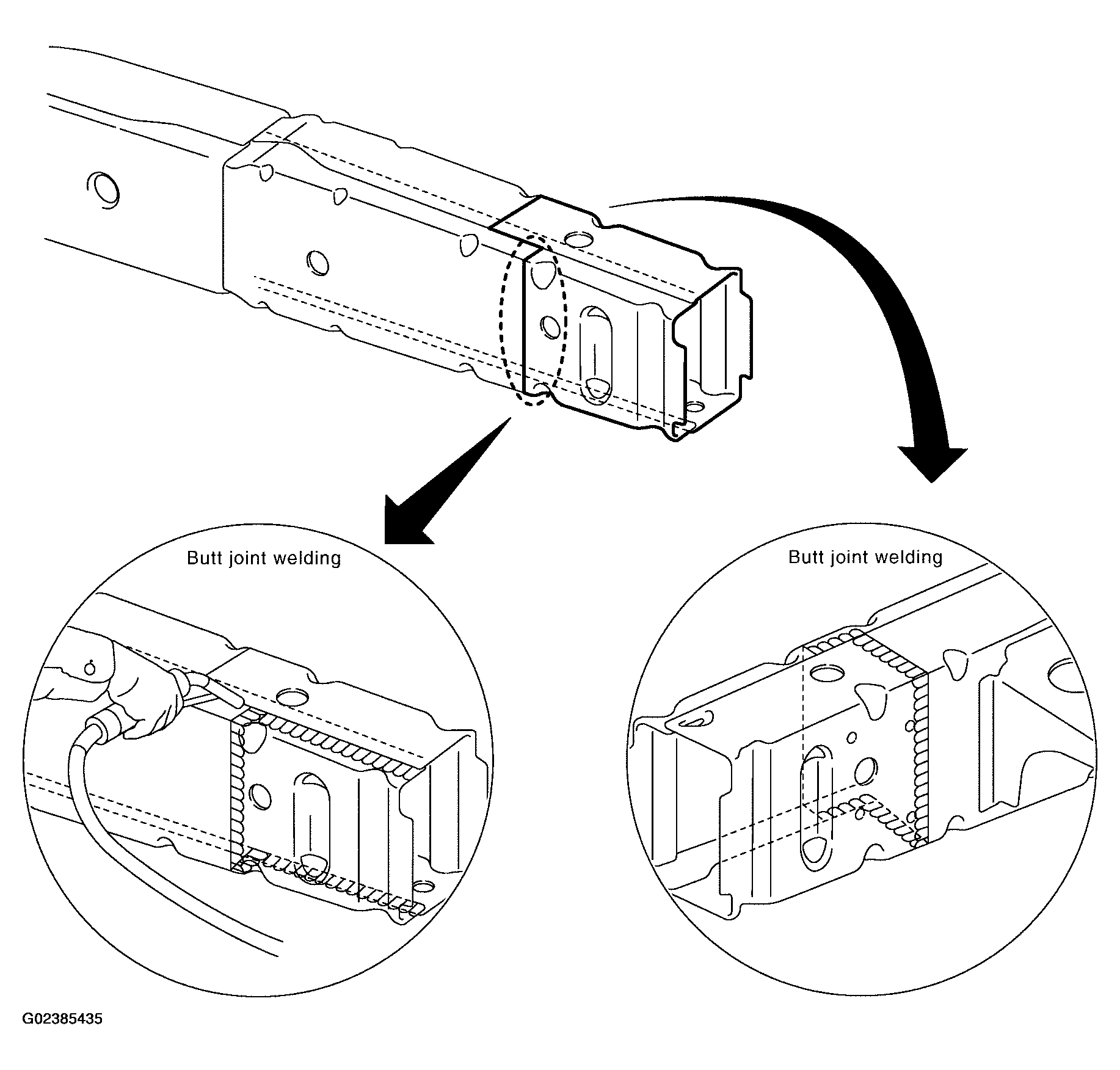

Weld part to be butt-welded and seam-welded corner to corner as shown in the figure.

Fig 3: Welding Part To Be Butt-Welded And Seam-Welded Corner To Corner
Courtesy of NISSAN MOTOR CO., U.S.A.
