Power Back Door Opener: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

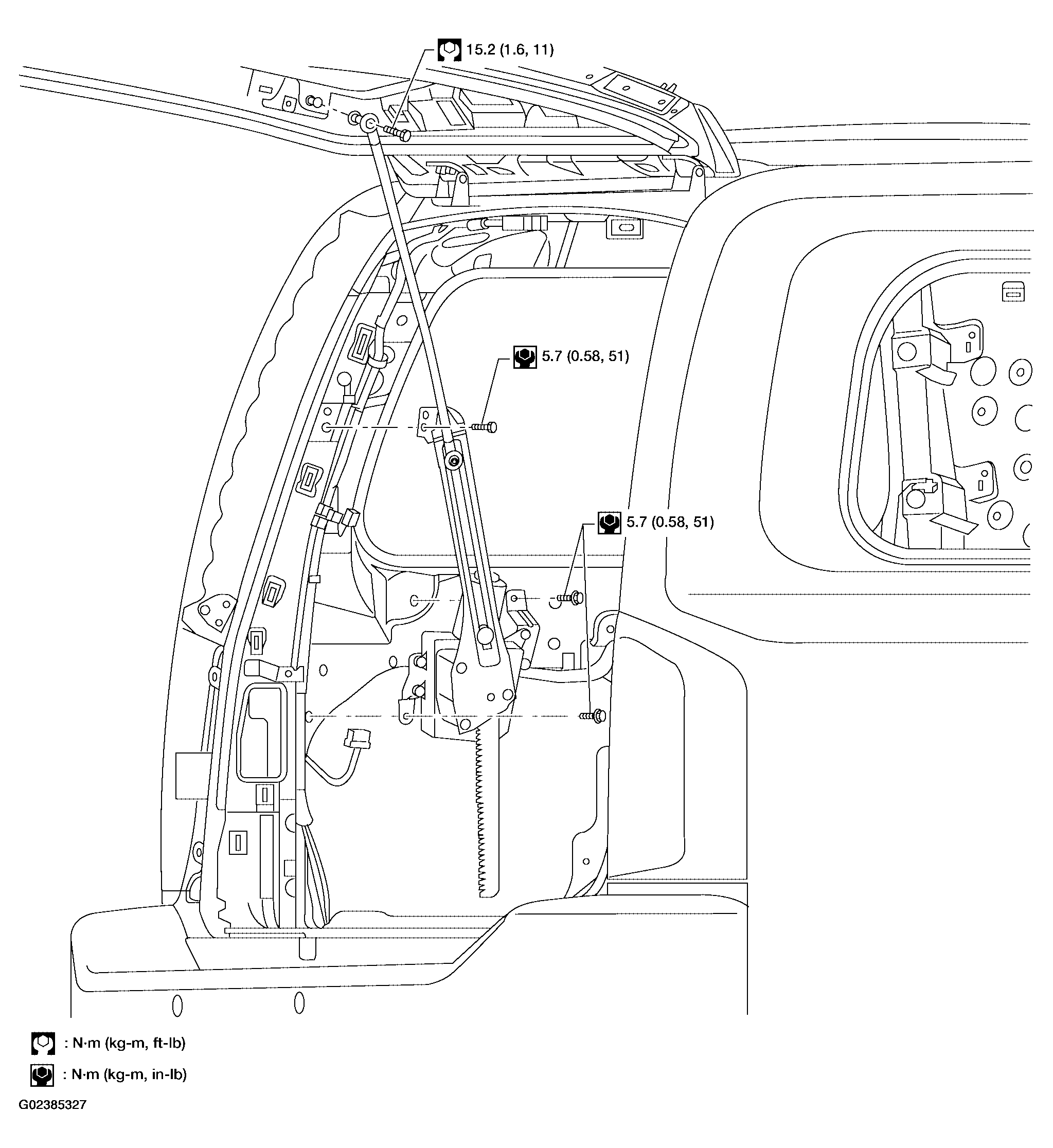

Fig 1: Exploded View Of Power Back Door Opener With Torque Specifications
G02385327Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the LH luggage side upper. Refer to "LUGGAGE FLOOR TRIM ".
  2. Disconnect the power back door motor electrical connector.
  3. Disconnect the ball socket from the back door.
  4. Remove the power back door motor assembly.
