Door Lock Assembly: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

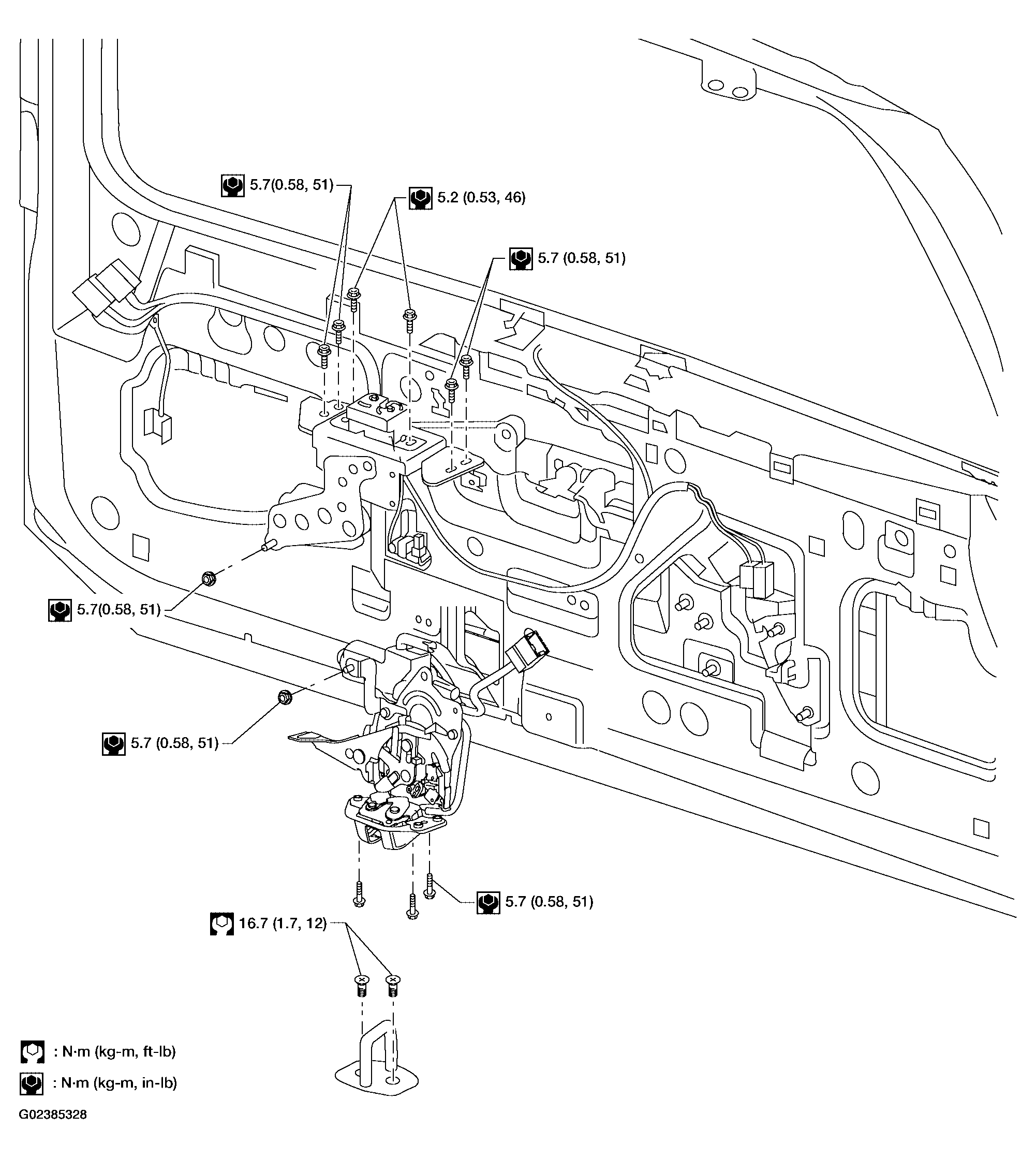

Fig 1: Exploded View Of Door Lock Assembly With Torque Specifications
G02385328Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the lower back door trim panel. Refer to "BACK DOOR TRIM ".
  2. Remove the weathershields.
  3. Disconnect the back door lock electrical connectors.
  4. Remove the back door lock assembly.
  5. Disconnect the back door glass lock electrical connector.
  6. Remove the back door glass lock.
