BACK DOOR WARNING CHIME CIRCUIT INSPECTION
1. Disconnect back door warning chime and back door control unit.
2. Check continuity between back door warning chime connector D514 terminal 1 and back door control unit connector B55 terminal 6.
  1. 1 (R) - 6 (R): Continuity should exist.
OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace harness.

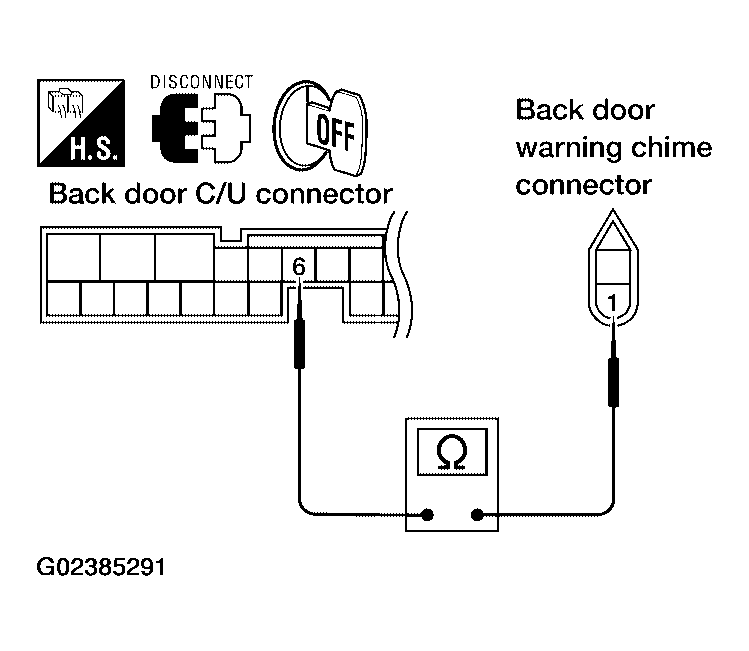

Fig 1: Checking Continuity Between Back Door Warning Chime Connector D514 Terminal 1 And Back Door Control Unit Connector B55 Terminal 6
Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING CHIME CIRCUIT INSPECTION
1. Connect back door control unit connector.
2. Check continuity between warning chime connector D514 terminal 2 and ground.
  1. 2 (L) - Ground: Continuity should exist.
OK or NG
1. OK: Replace warning chime.
2. NG: Repair or replace harness.

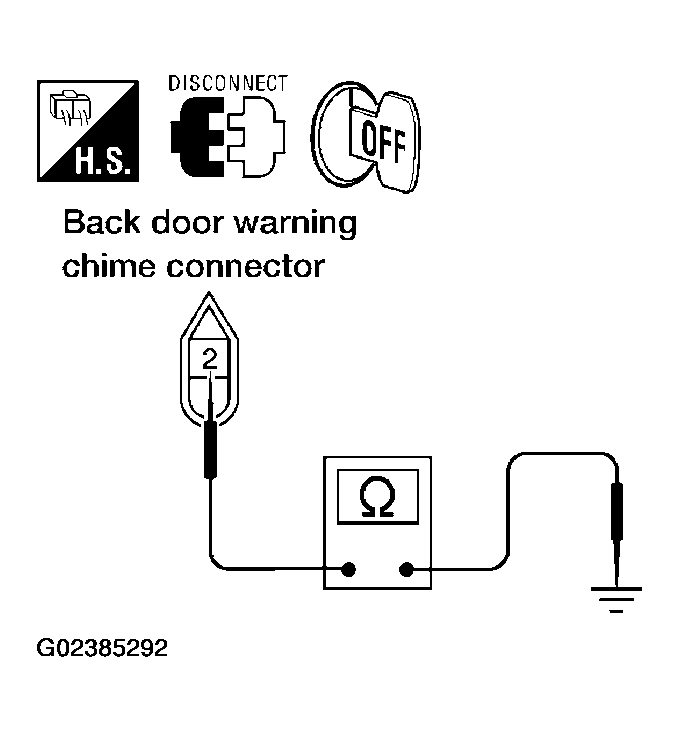

Fig 2: Checking Continuity Between Warning Chime Connector D514 Terminal 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
