Back Door Handle Switch System Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

BACK DOOR HANDLE SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. While operating the back door handle switch, check voltage between back door control unit connector B55 terminal 26 and ground.

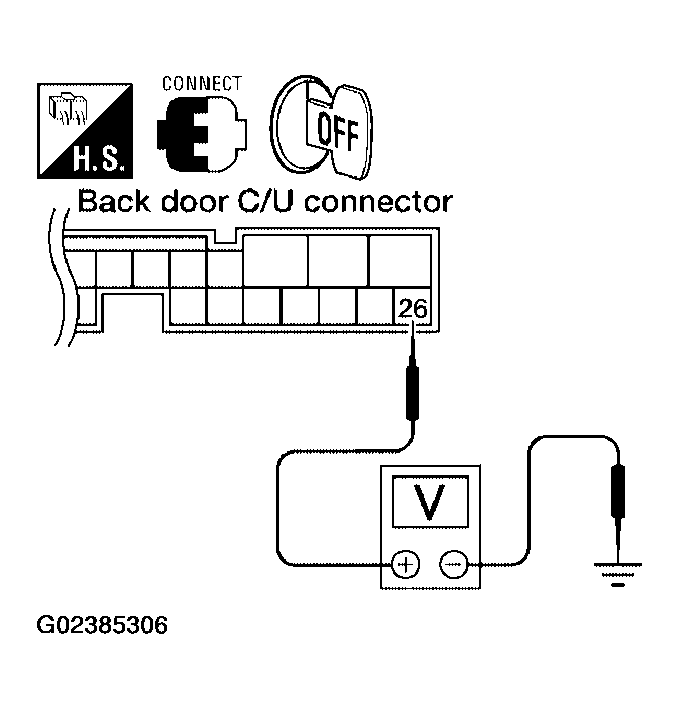

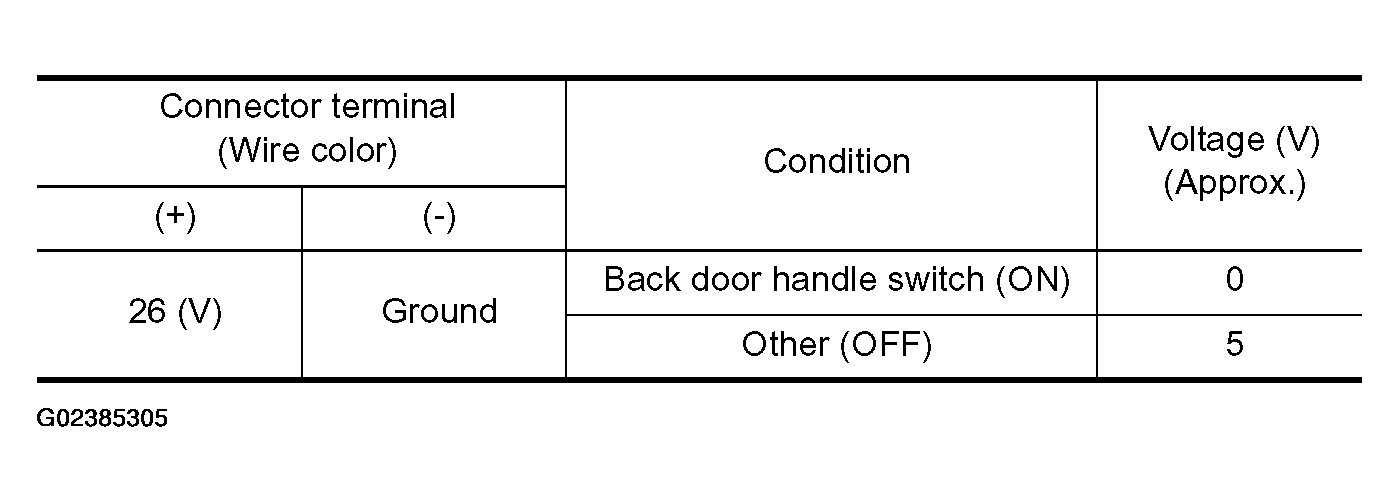

  Fig 1: Back Door Control Unit Terminal 26 And Ground Voltage Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Switch is OK.
2. NG: GO TO 2.
Fig 2: Checking Voltage Between Back Door Control Unit Connector B55 Terminal 26 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
BACK DOOR HANDLE SWITCH CIRCUIT INSPECTION
1. Disconnect back door handle switch and back door control unit.
2. Check continuity between back door handle switch connector D706 terminal 3 and back door control unit connector B55 terminal 26.
  1. 3 (V) - 26 (V): Continuity should exist.
OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace harness.

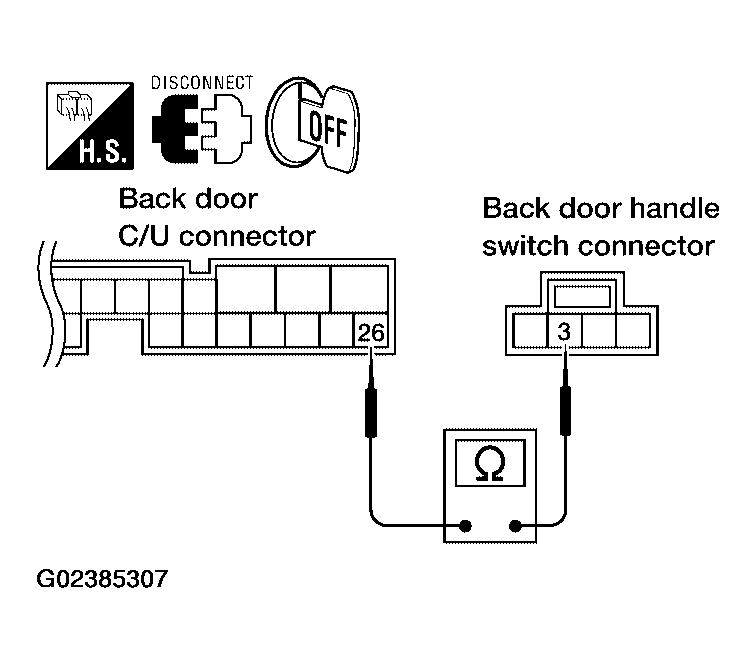

Fig 3: Checking Continuity Between Back Door Handle Switch Connector D706 Terminal 3 And Back Door Control Unit Connector B55 Terminal 26
Courtesy of NISSAN MOTOR CO., U.S.A.
BACK DOOR HANDLE SWITCH GROUND INSPECTION
Check continuity between back door handle switch connector D706 terminal 4 and ground.
1. 4 (B) - Ground: Continuity should exist.
OK or NG
1. OK: Replace the back door handle switch.
2. NG: Repair or replace harness.

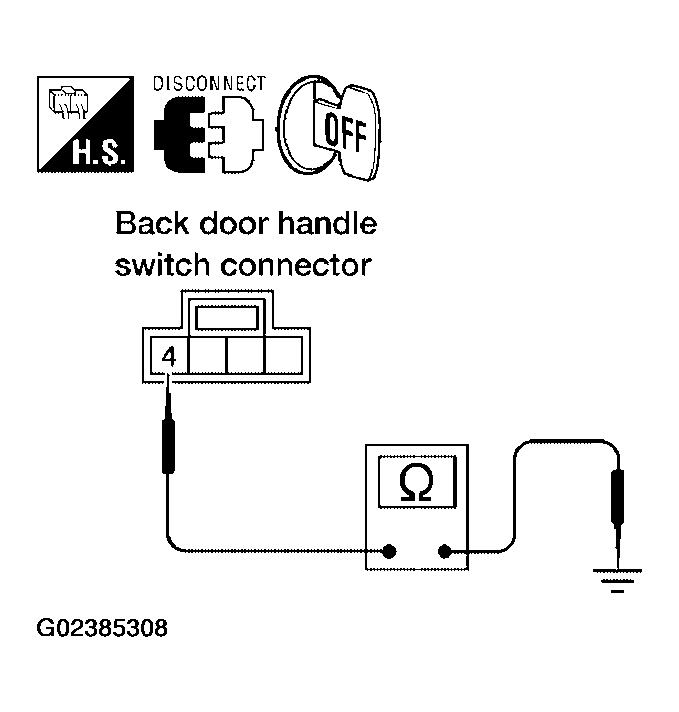

Fig 4: Checking Continuity Between Back Door Handle Switch Connector D706 Terminal 4 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
