Diagnostic Procedure 6

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONDITION OF AIR BAG MODULE
Inspect for any deployed air bag modules or seat belt pre-tensioners.

Are any air bag modules or seat belt pre-tensioners deployed?
1. Yes: Refer to "COLLISION DIAGNOSIS ".
2. No: GO TO 2.
CHECK THE AIR BAG FUSE
Check 10A fuse [No. 13, located in the fuse block (J/B)].

Refer to "POWER SUPPLY ROUTING CIRCUIT ".

OK or NG
1. OK: GO TO 4.
2. NG: GO TO 3.
CHECK AIR BAG FUSE AGAIN
Replace 10A fuse [No. 13, located in the fuse block (J/B)] and turn ignition switch ON.

Does the fuse blow again?
1. Yes: Repair main harness.
2. No: Inspection End.
CHECK AIR BAG DIAGNOSIS SENSOR UNIT
Connect CONSULT-II and touch "START".

Is "AIR BAG" displayed on CONSULT-II?
1. Yes: GO TO 5.
2. No: Visually inspect the air bag diagnosis sensor unit harness connections. If the connections are OK, replace the air bag diagnosis sensor unit. Refer to "REMOVAL AND INSTALLATION ".

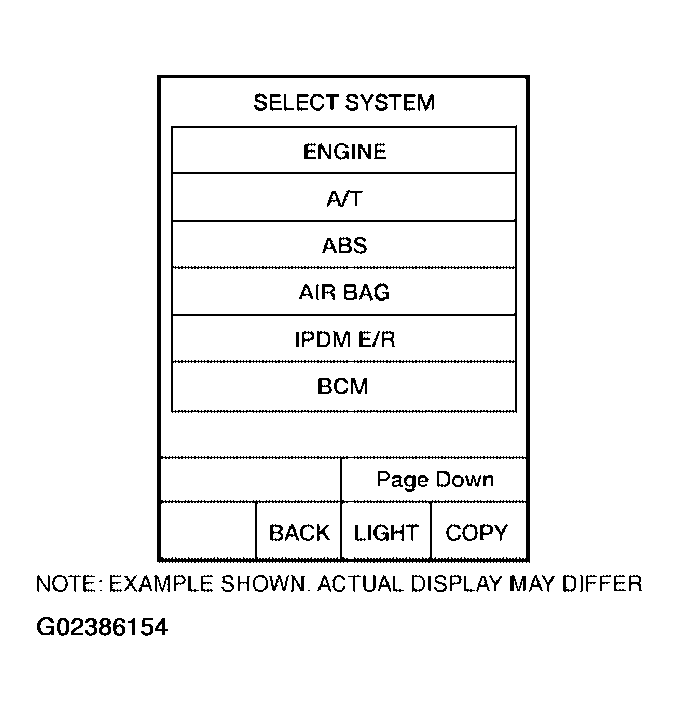

Fig 1: Identifying Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONNECTION
Check for loose connections between the combination meter and the air bag diagnosis sensor unit.

OK or NG
1. OK: Replace air bag diagnosis sensor unit. Refer to "REMOVAL AND INSTALLATION ".
2. NG: Properly connect the combination meter and air bag diagnosis sensor unit harness connectors. If "AIR BAG" warning lamp still does not turn off, replace the wiring harness.
