Warning Lamp Flash Code Chart
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

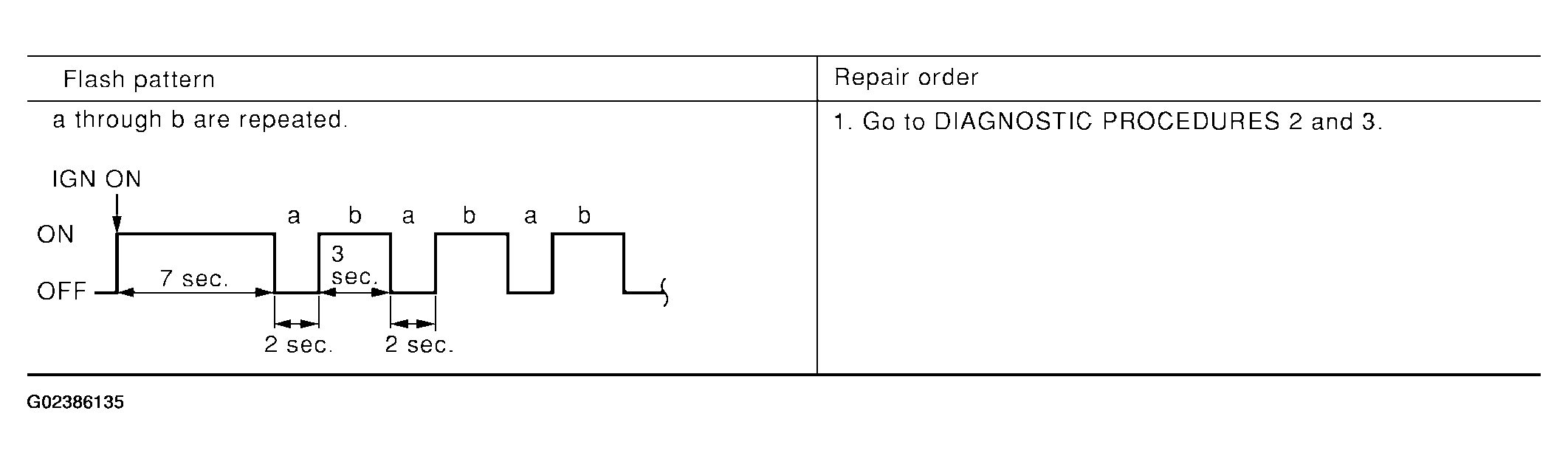

< Diagnosis results (previously stored in the memory) might not be erased after repair or intermittent malfunctions have been detected in the past. >
Courtesy of NISSAN MOTOR CO., U.S.A.

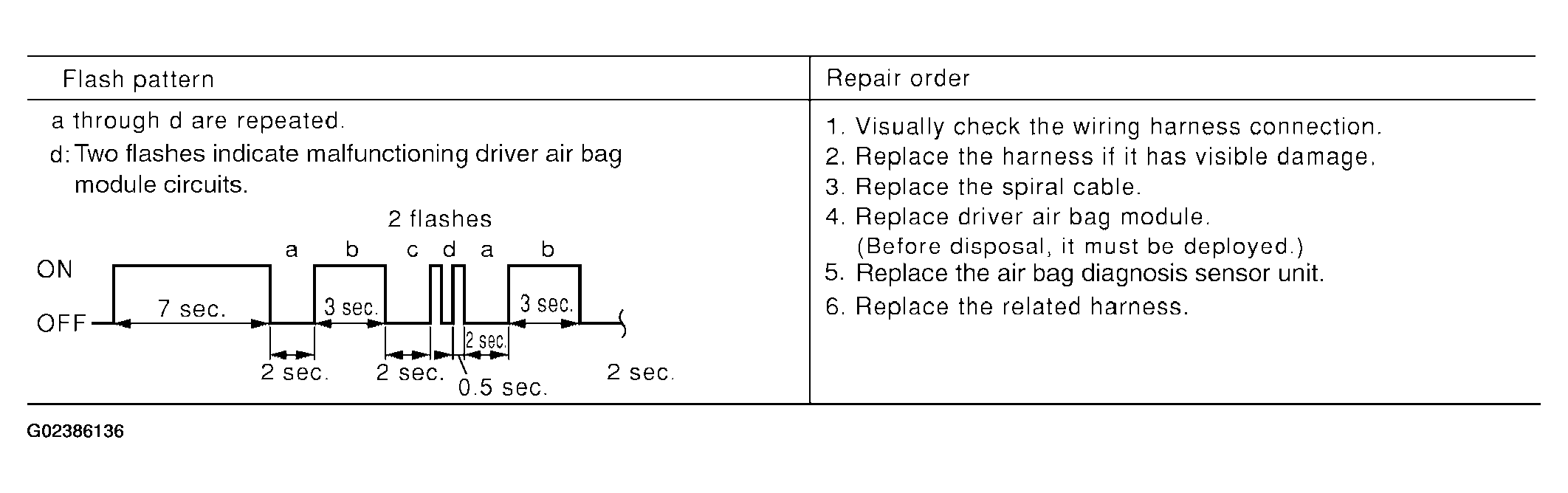

< Driver air bag module >
Courtesy of NISSAN MOTOR CO., U.S.A.

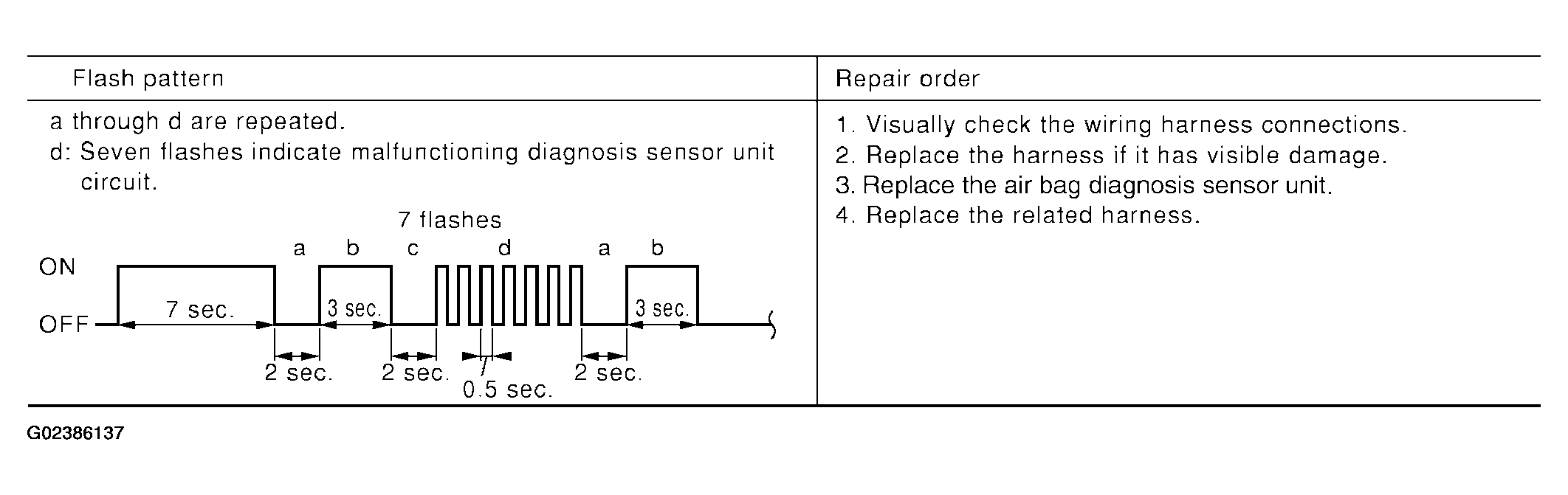

< Air bag diagnosis sensor unit >
Courtesy of NISSAN MOTOR CO., U.S.A.

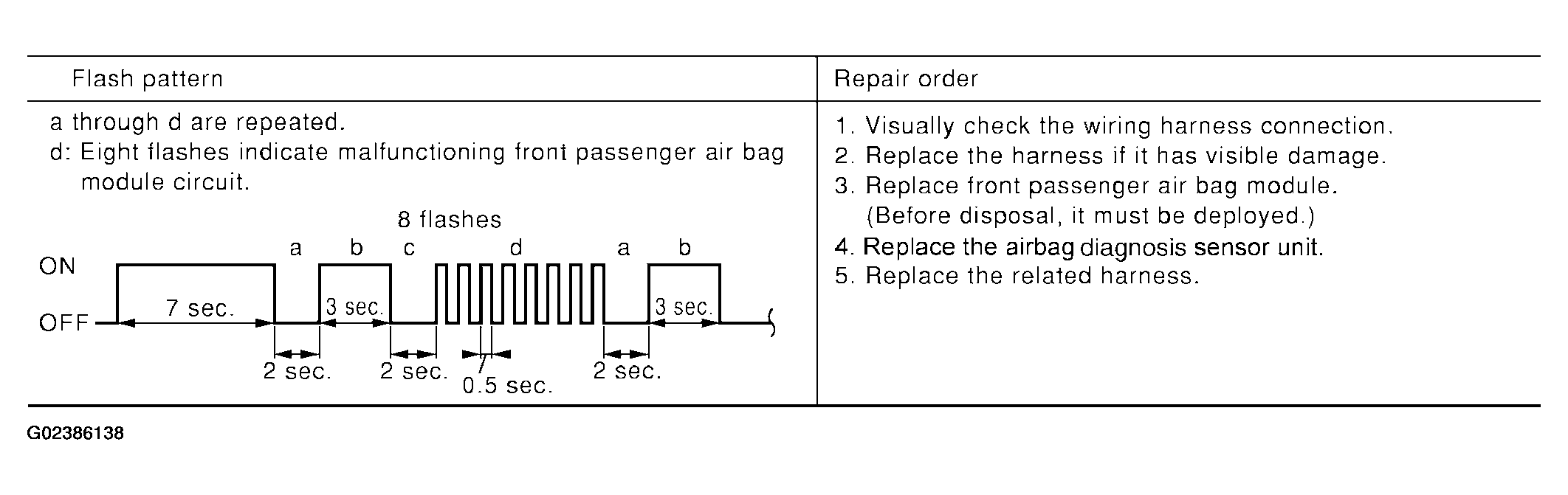

< Front passenger air bag module >
Courtesy of NISSAN MOTOR CO., U.S.A.

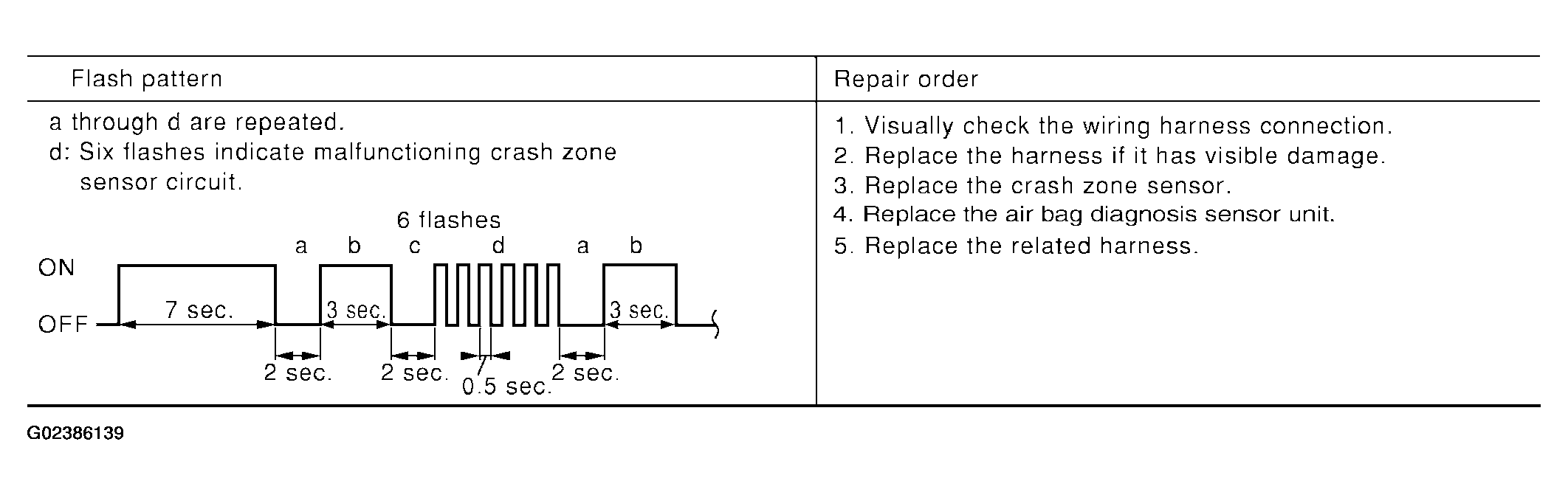

< Crash zone sensor >
Courtesy of NISSAN MOTOR CO., U.S.A.

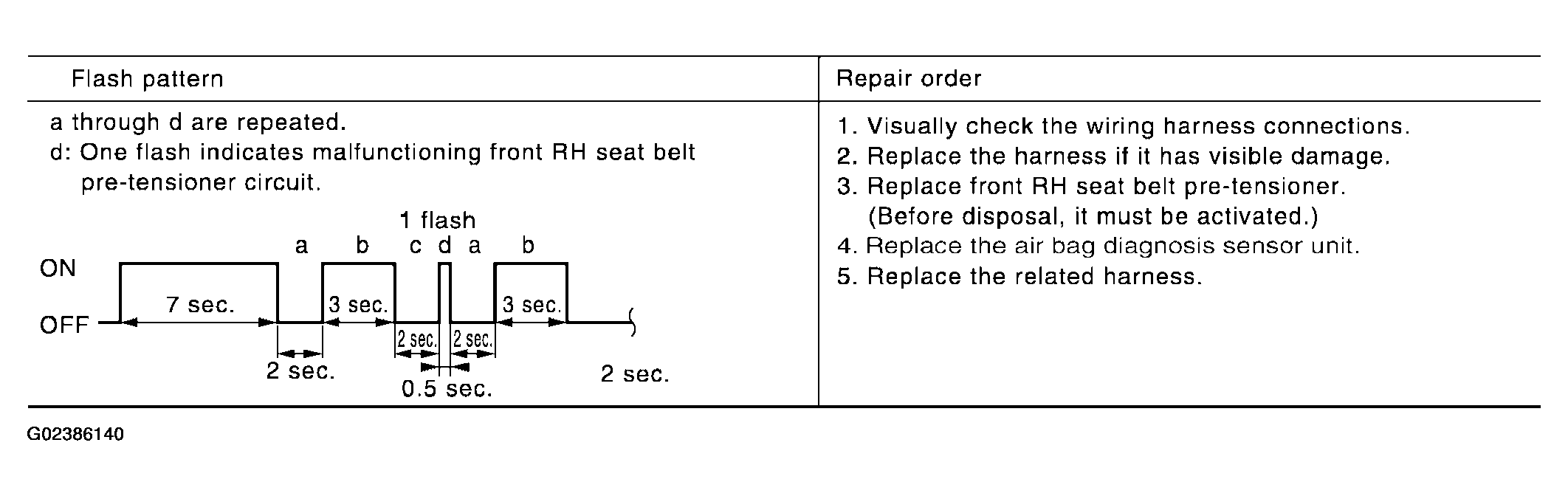

< Front RH seat belt pre-tensioner >
Courtesy of NISSAN MOTOR CO., U.S.A.

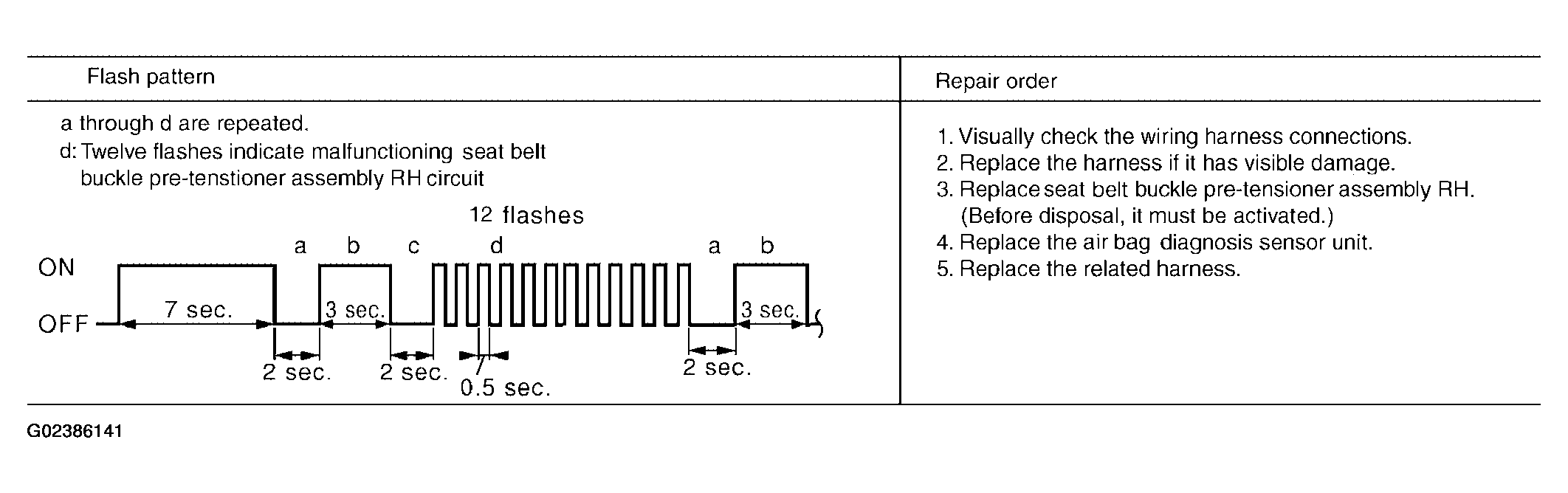

< Seat belt buckle pre-tensioner assembly RH>
Courtesy of NISSAN MOTOR CO., U.S.A.

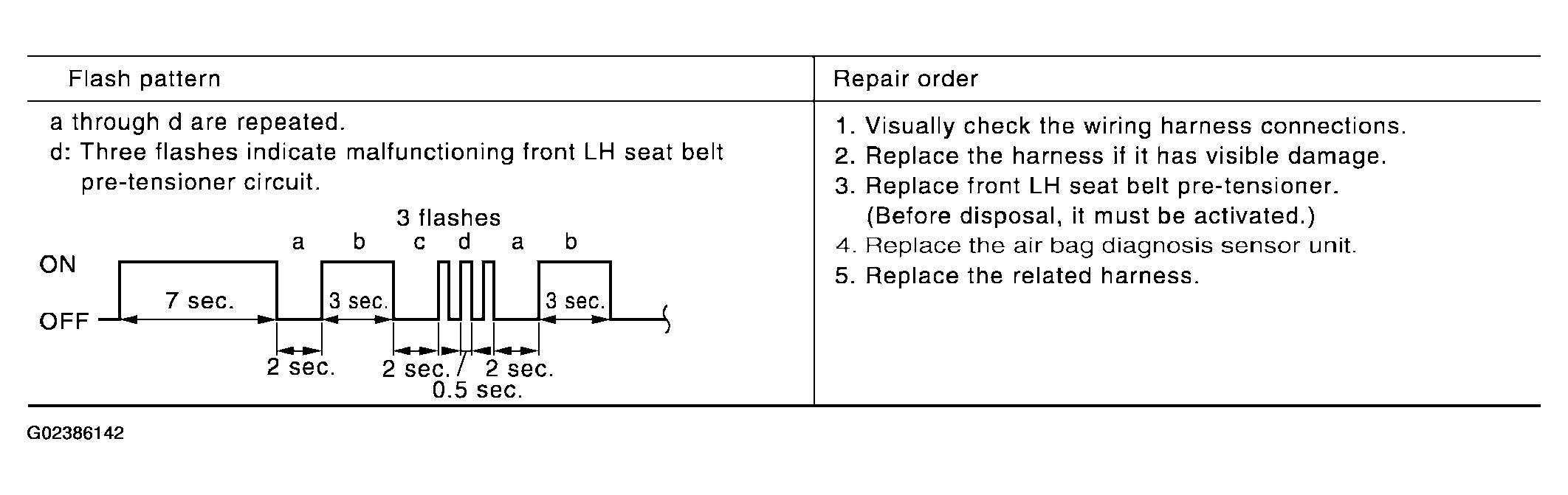

< Front LH seat belt pre-tensioner >
Courtesy of NISSAN MOTOR CO., U.S.A.

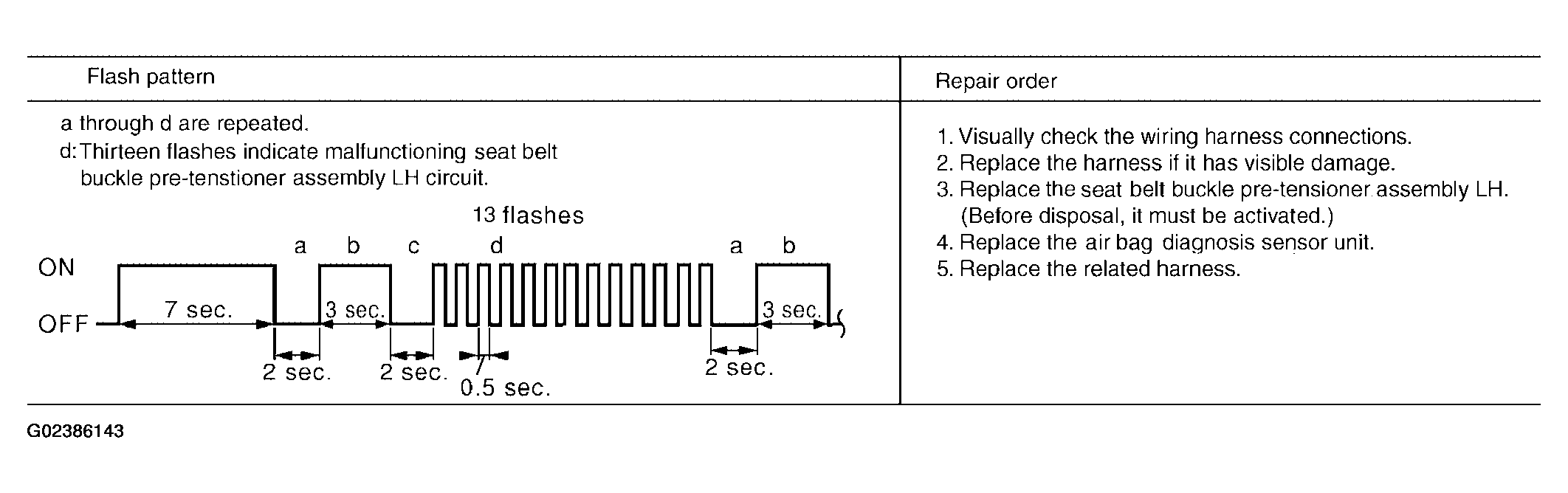

< Seat belt buckle pre-tensioner assembly LH >
Courtesy of NISSAN MOTOR CO., U.S.A.

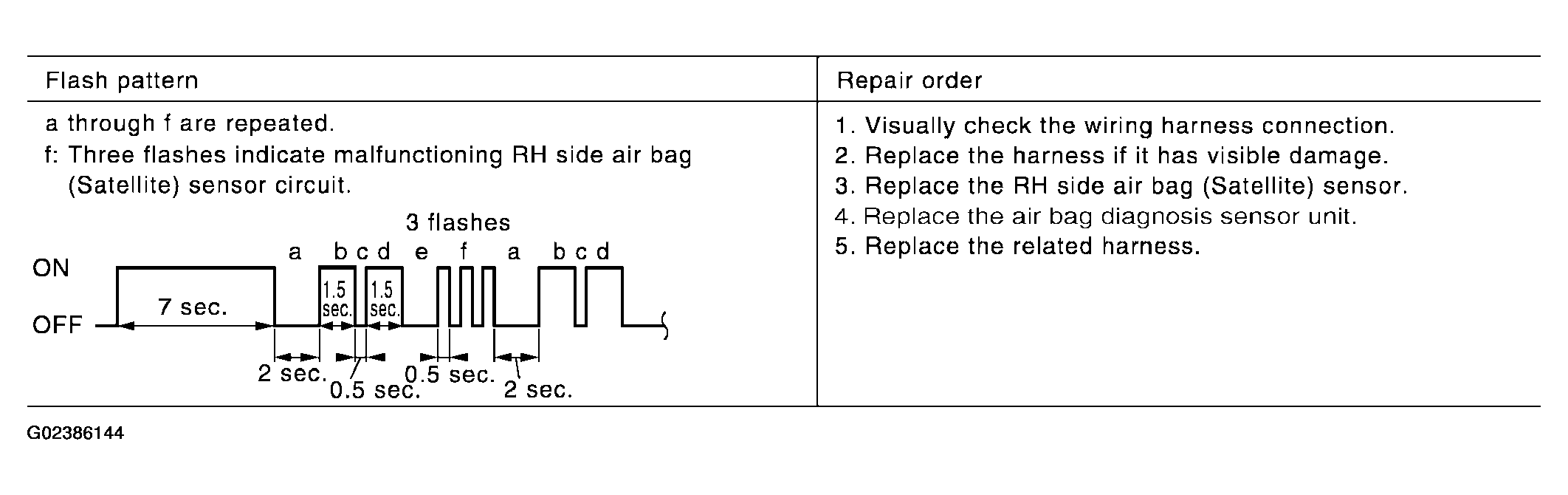

< RH side air bag (Satellite) sensor >
Courtesy of NISSAN MOTOR CO., U.S.A.

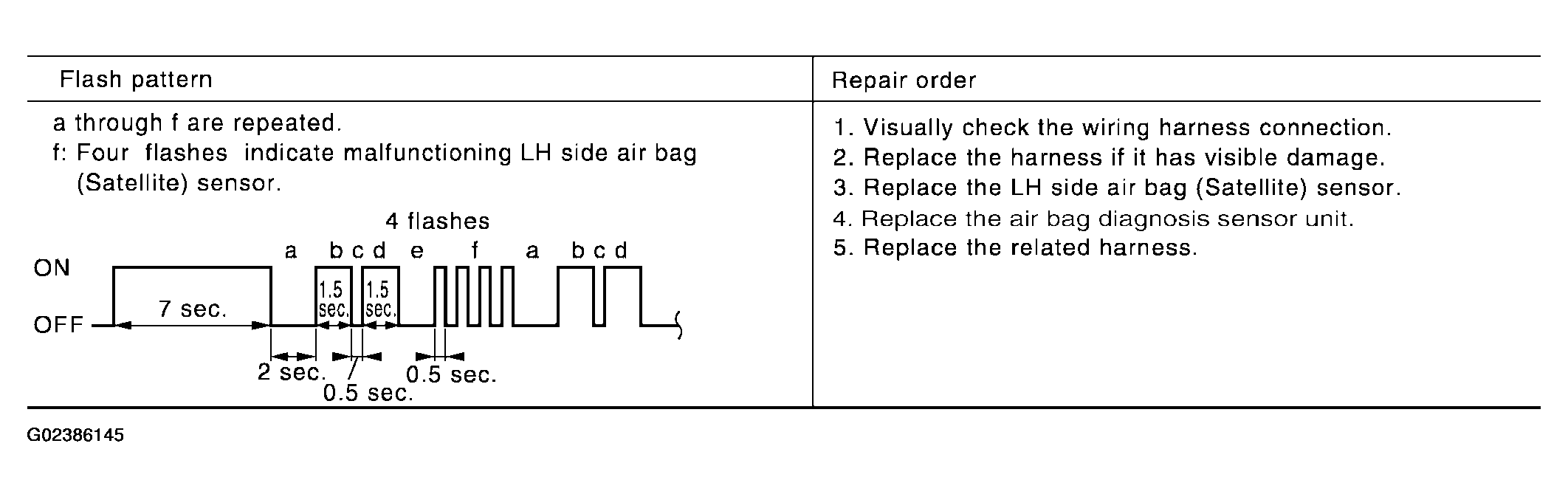

< LH side air bag (Satellite) sensor >
Courtesy of NISSAN MOTOR CO., U.S.A.

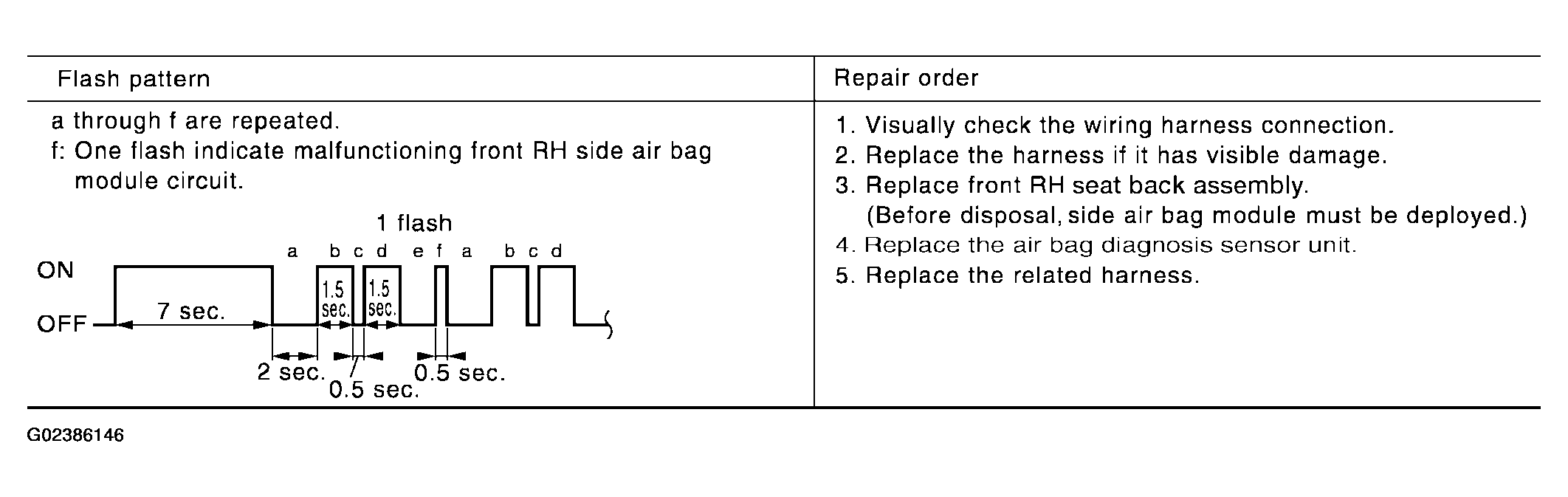

< Front RH side air bag module >
Courtesy of NISSAN MOTOR CO., U.S.A.

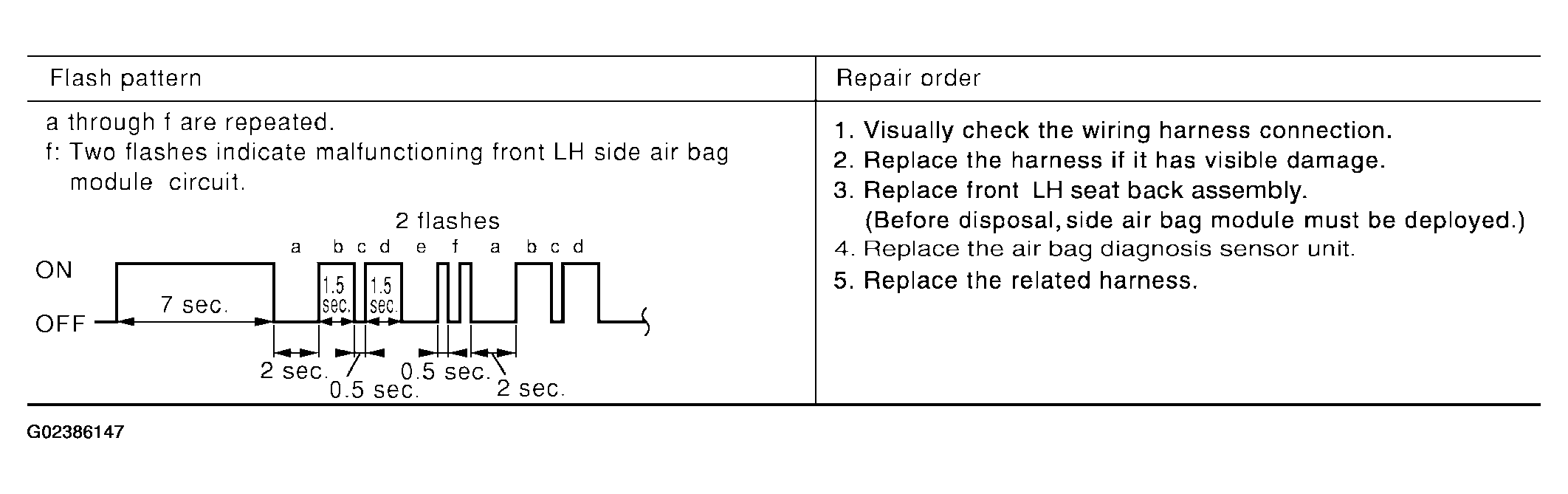

< Front LH side air bag module >
Courtesy of NISSAN MOTOR CO., U.S.A.

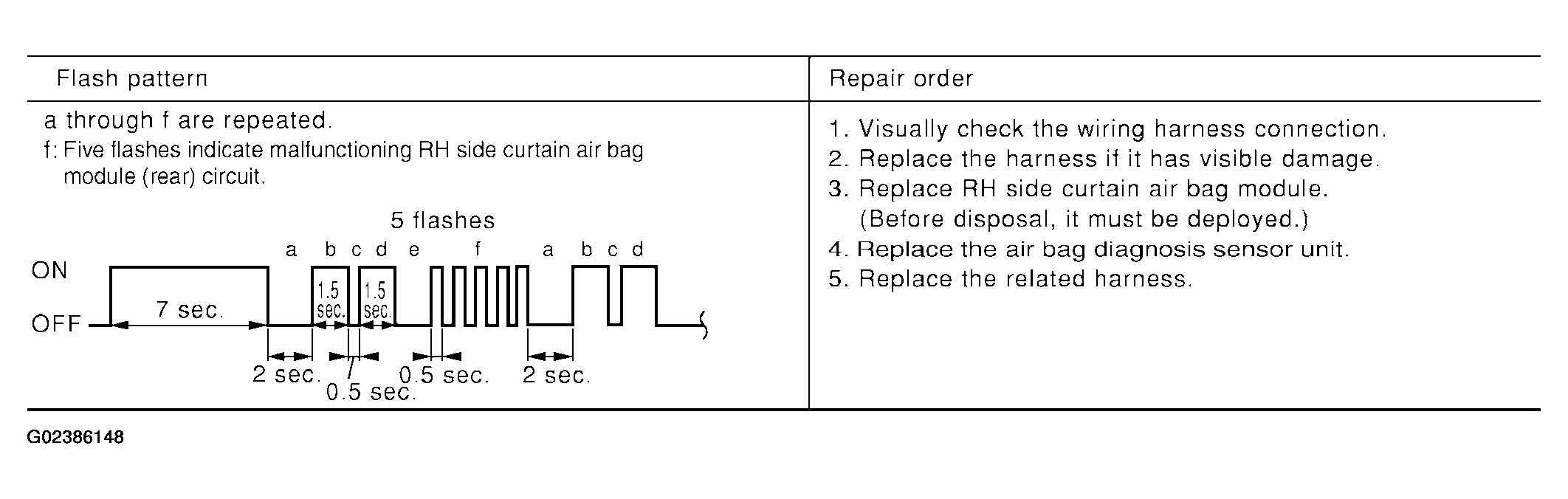

< RH side curtain air bag module (rear) >
Courtesy of NISSAN MOTOR CO., U.S.A.

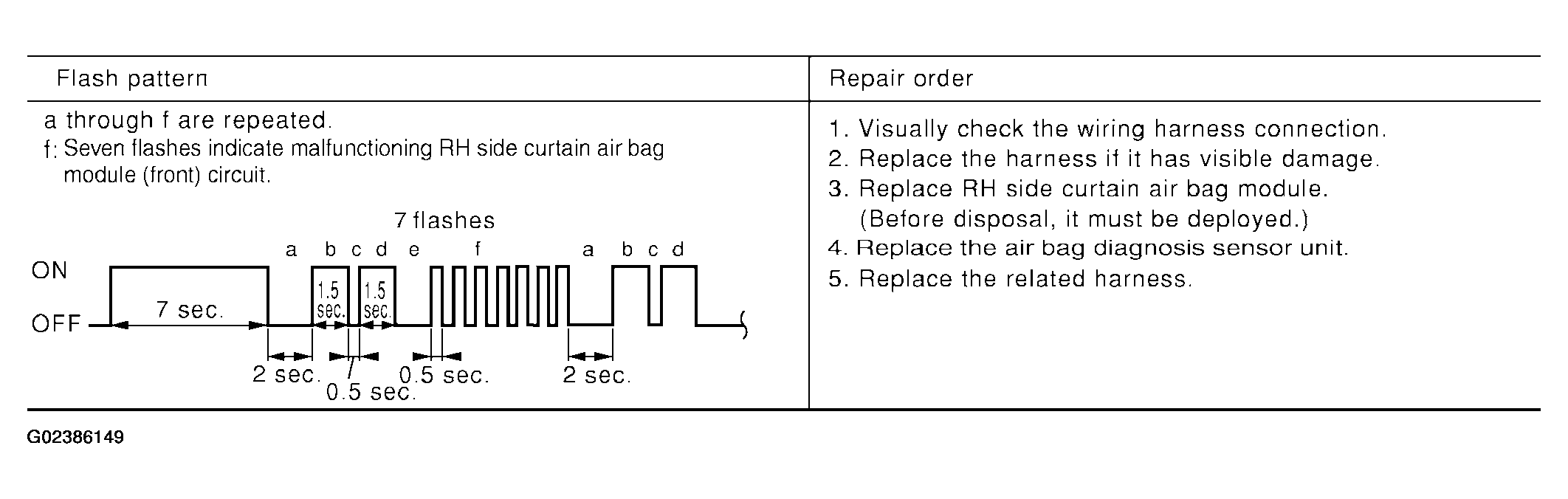

< RH side curtain air bag module (front) >
Courtesy of NISSAN MOTOR CO., U.S.A.

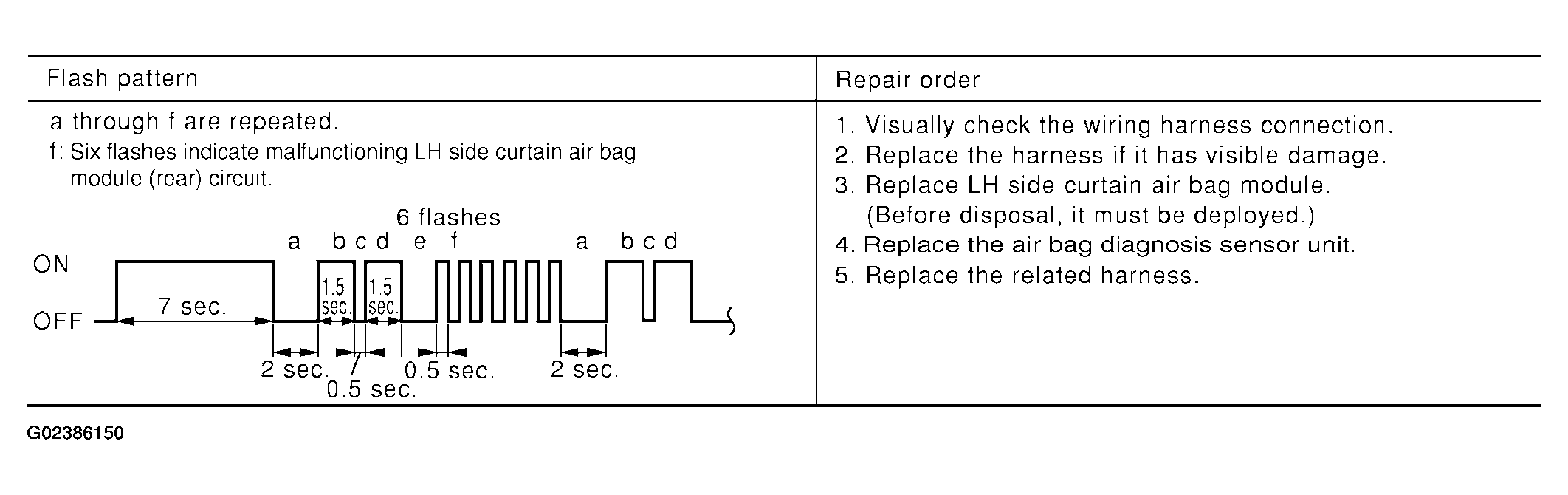

< LH side curtain air bag module (rear) >
Courtesy of NISSAN MOTOR CO., U.S.A.

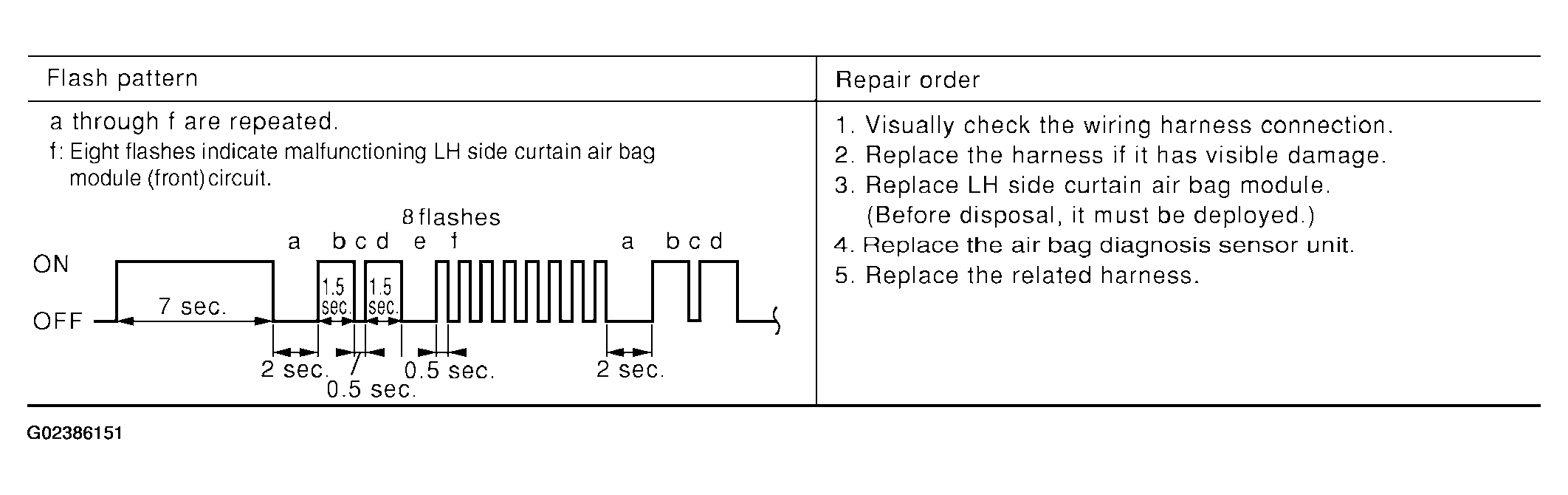

< LH side curtain air bag module (front) >
Courtesy of NISSAN MOTOR CO., U.S.A.

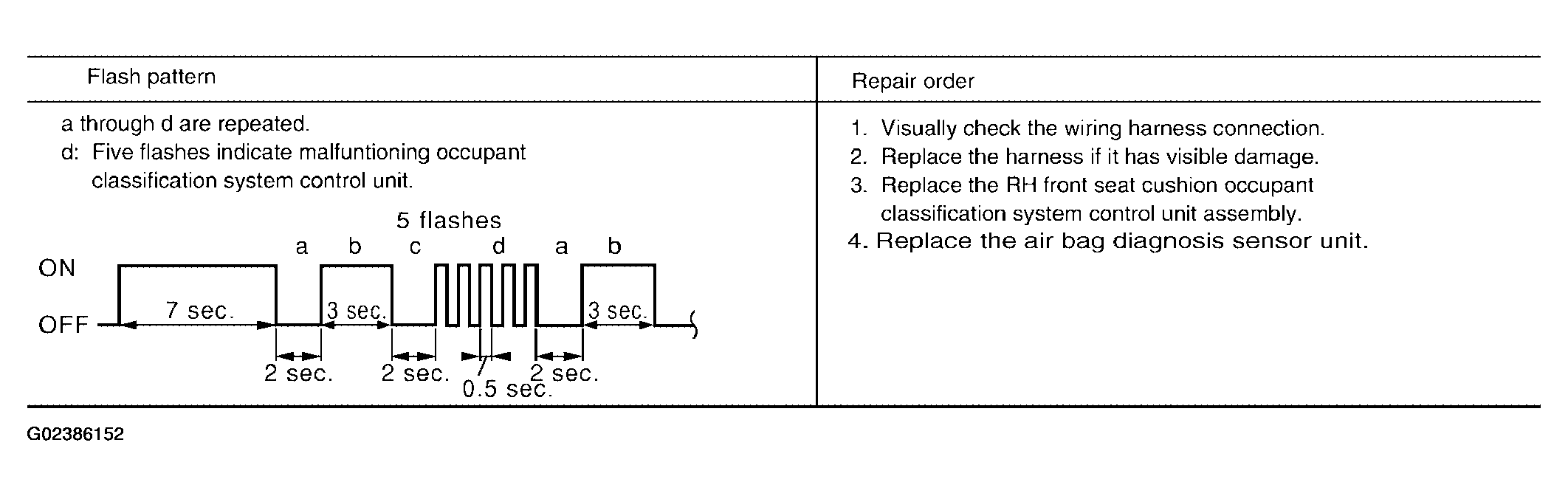

< Occupant classification system >
Courtesy of NISSAN MOTOR CO., U.S.A.

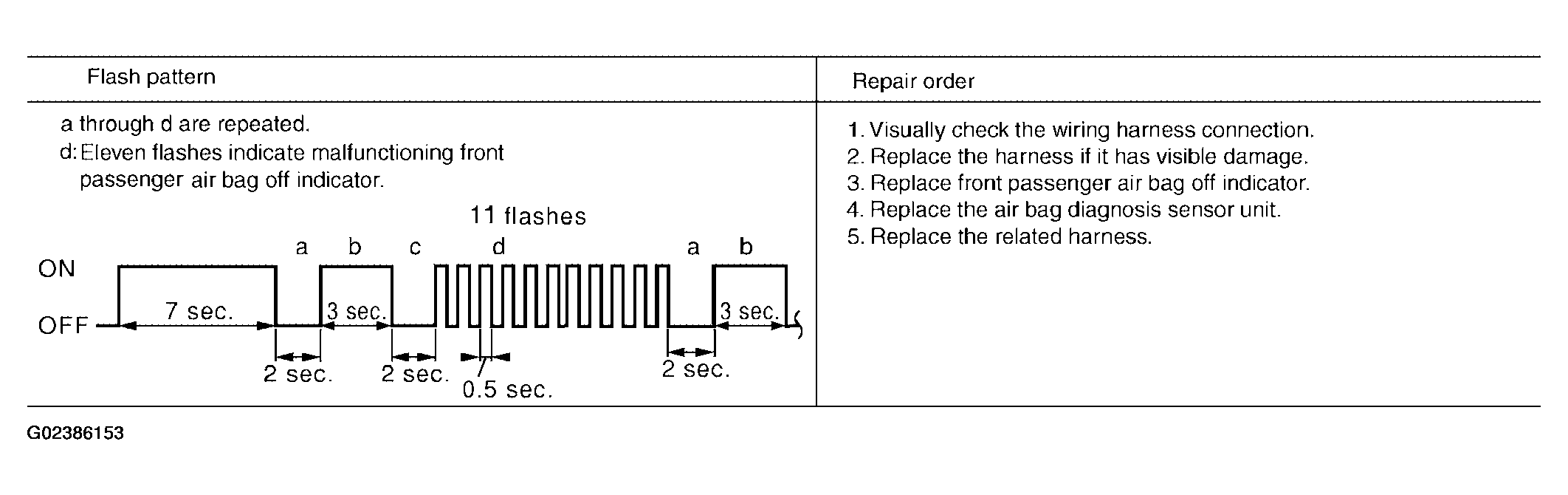

< Front passenger air bag off indicator >
Courtesy of NISSAN MOTOR CO., U.S.A.
