Checking SRS Operation Using "AIR BAG" Warning Lamp-User Mode

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.
  2. Compare the SRS air bag warning lamp blinking pattern with the examples.
    Fig 1: Identifying SRS Air Bag Warning Lamp
    G02386101Courtesy of NISSAN MOTOR CO., U.S.A.

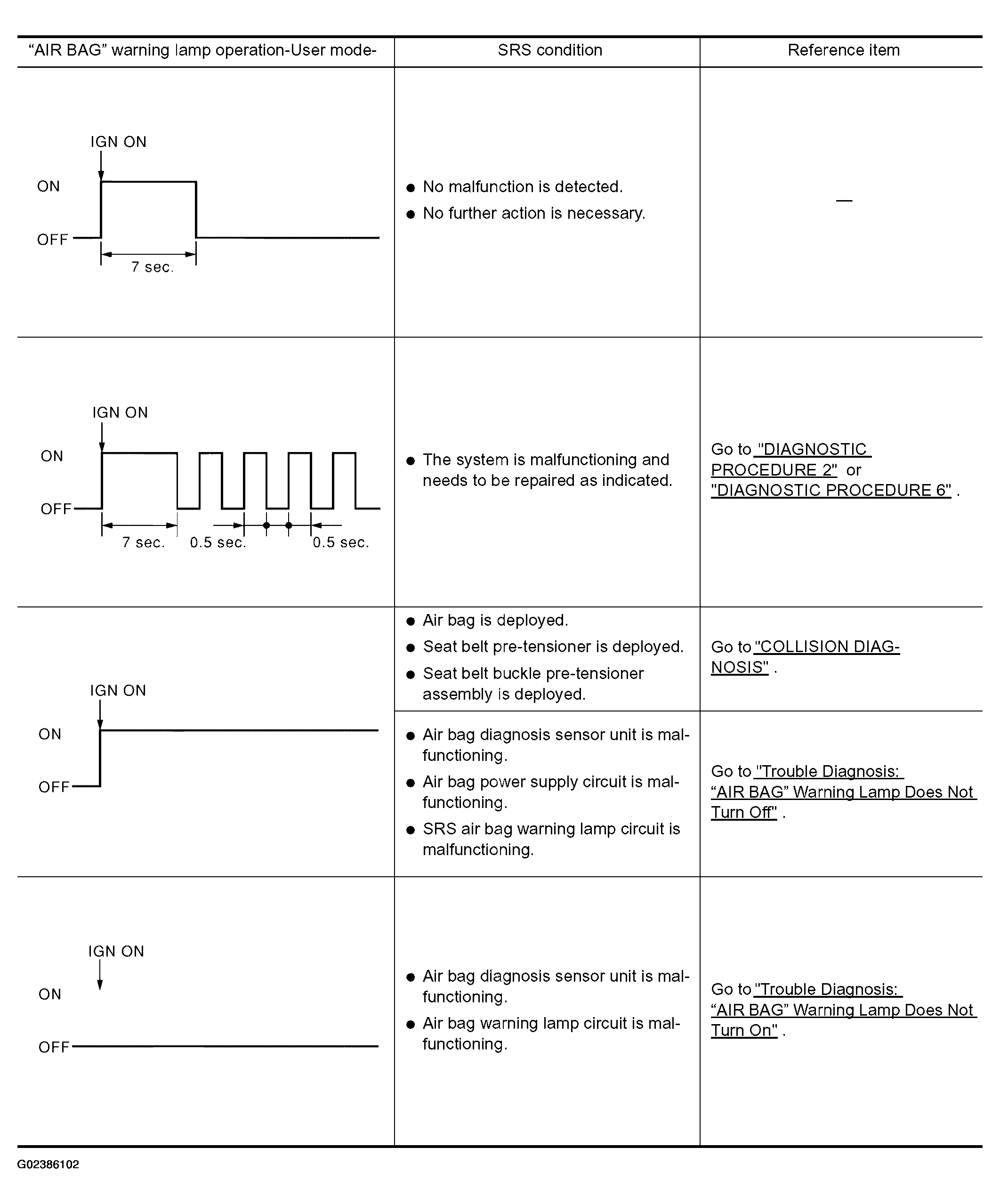

    Warning lamp examples

    Fig 2: Warning Lamp Examples
    G02386102Courtesy of NISSAN MOTOR CO., U.S.A.
