From User Mode to Diagnosis Mode

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

After selecting "AIR BAG" on the "SELECT SYSTEM" screen, User mode automatically changes to Diagnosis mode.

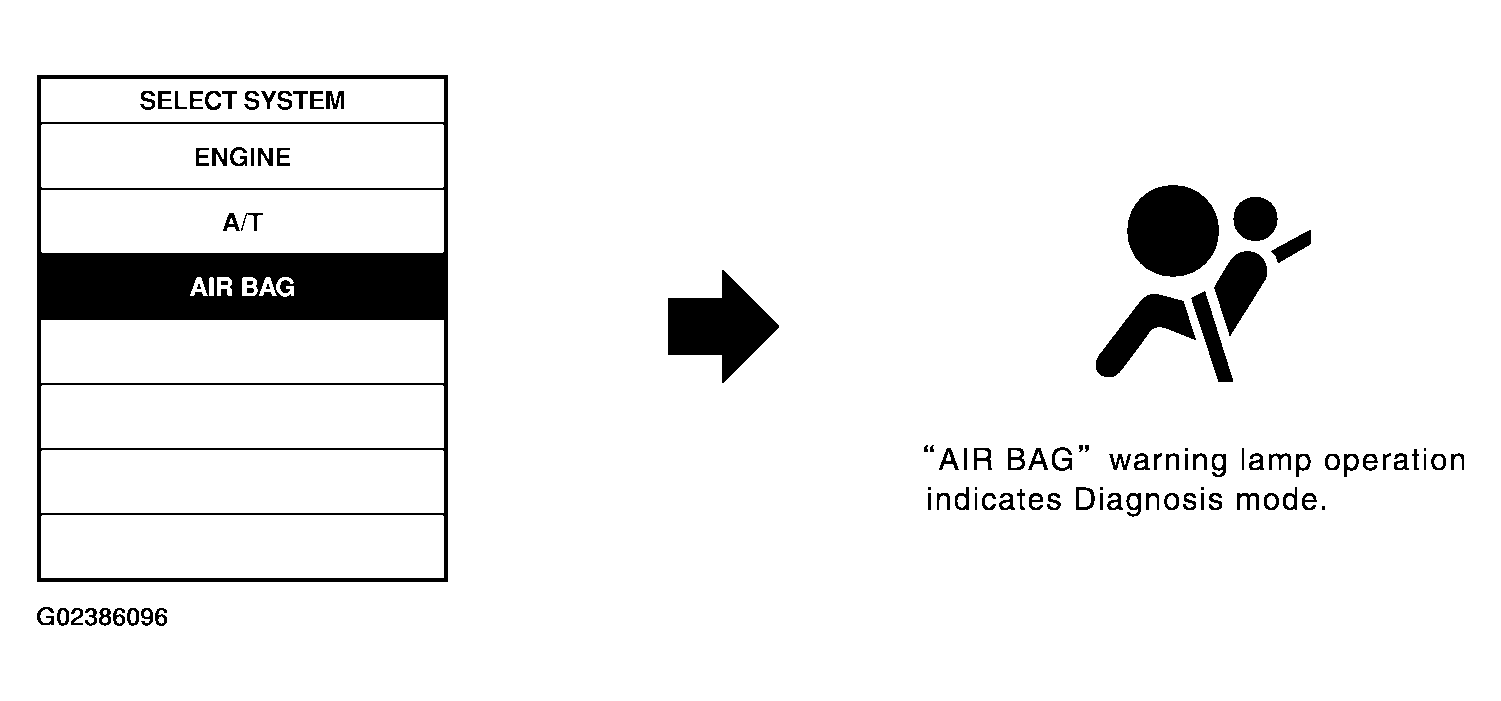

Fig 1: Identifying "AIR BAG" On "SELECT SYSTEM" Screen
G02386096Courtesy of NISSAN MOTOR CO., U.S.A.
