Direct-connect SRS Component Connectors
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
The following SRS components use direct-connect style harness connectors.
- Driver air bag module
- Front passenger air bag module
- LH side front curtain air bag module
- LH side rear curtain air bag module
- RH side front curtain air bag module
- RH side rear curtain air bag module
- Front LH seat belt pre-tensioner
- Front RH seat belt pre-tensioner
- Seat belt buckle pre-tensioner assembly LH
- Seat belt buckle pre-tensioner assembly RH

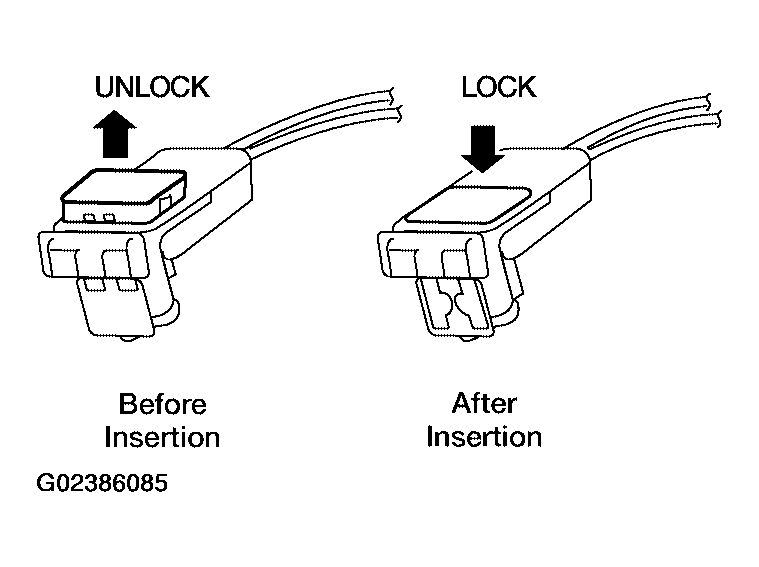

Always pull up to release black locking tab prior to removing connector from SRS component. Always push down to lock black locking tab after installing connector to SRS component. When locked, the black locking tab is level with the connector housing.
