Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
When servicing the SRS, do not work from directly in front of air bag module.

Set the front wheels in the straight-ahead position.
Remove driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
Remove the steering wheel center nut.
Remove the steering wheel using Tool.
1. Tool number: A: J-1859A
2. B: J-42578
Remove the column cover upper and lower.

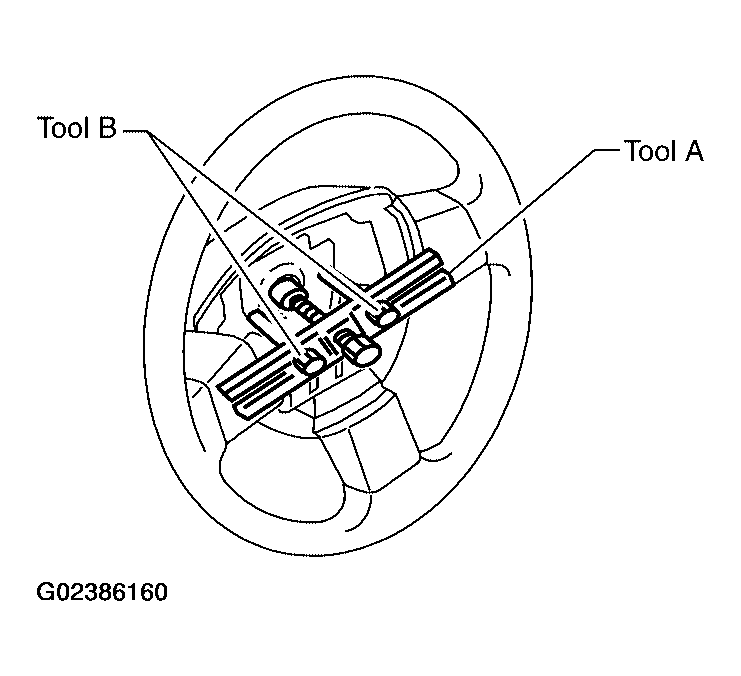

Fig 1: Removing Steering Wheel Using Specified Tools
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove wiper washer switch connector, then pinch the tabs at wiper and washer switch base and slide switch away from steering column to remove.

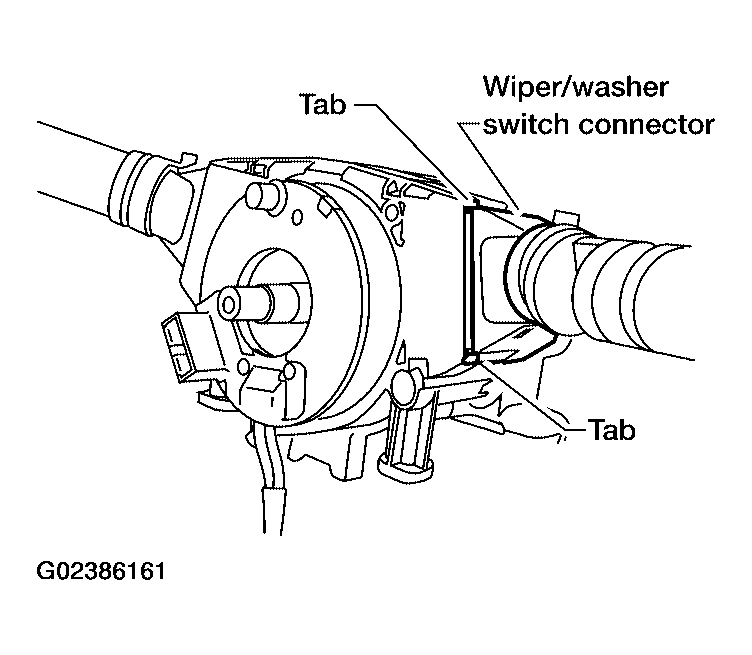

Fig 2: Identifying Wiper Washer Switch Connector And Tabs
Courtesy of NISSAN MOTOR CO., U.S.A.
While pressing tabs, pull lighting and turn signal switch toward driver door and disconnect from base.

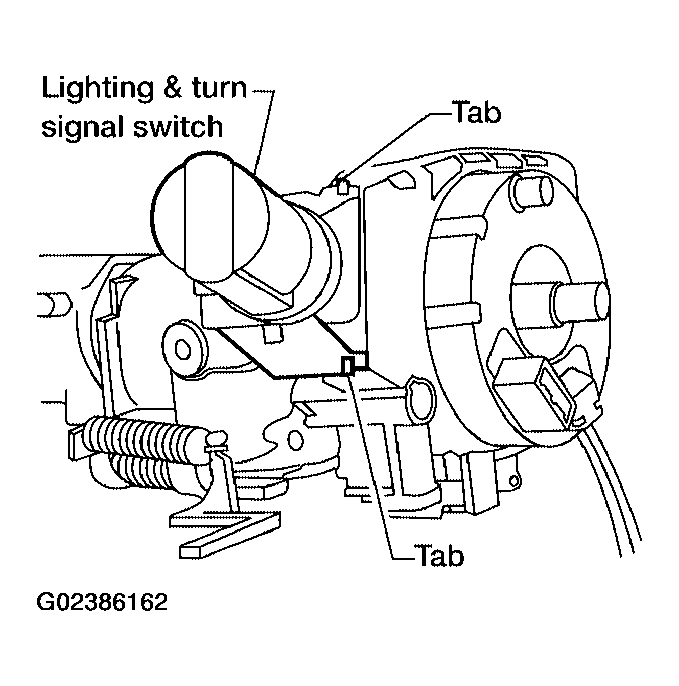

Fig 3: Identifying Lighting And Turn Signal Switch And Tabs
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the screws, release the clip, and remove the spiral cable.
CAUTION:
- Do not disassemble spiral cable.
- Do not apply lubricant to the spiral cable.

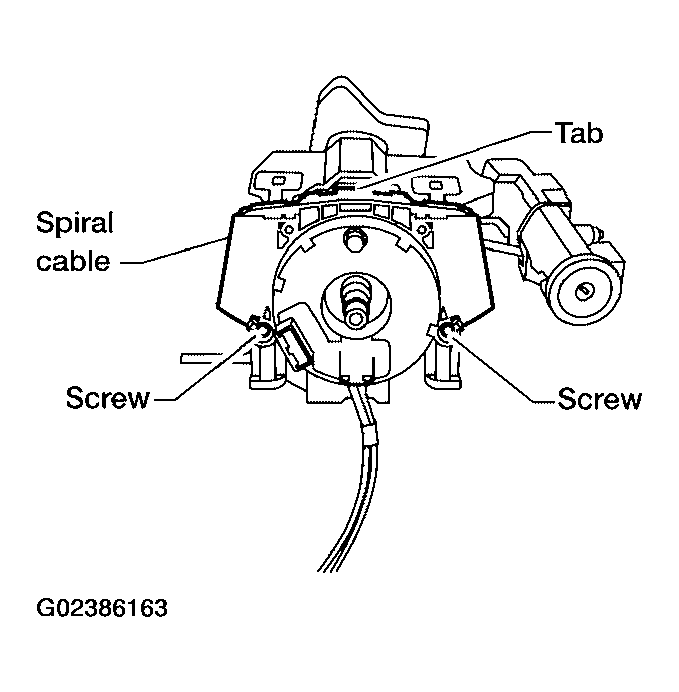

Fig 4: Identifying Spiral Cable Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the spiral cable connectors.
CAUTION: With the steering linkage disconnected, the spiral cable may snap by turning the steering wheel beyond the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns from the neutral position.
