Deployment Procedures For Seat Belt Pre-TENSIONER (Outside Of Vehicle)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

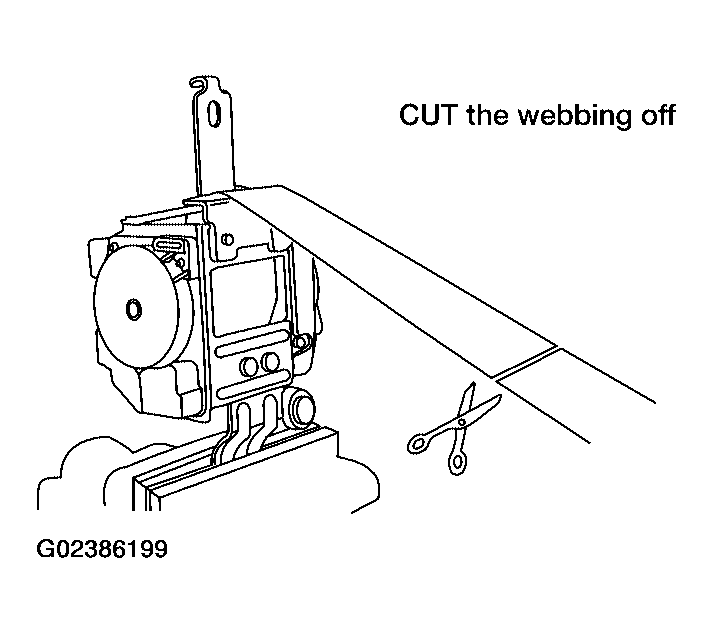

Firmly grip pre-tensioner in a vise and cut off the webbing.

Fig 1: Firmly Gripping Pre-Tensioner In Vise And Cutting Off Webbing
Courtesy of NISSAN MOTOR CO., U.S.A.

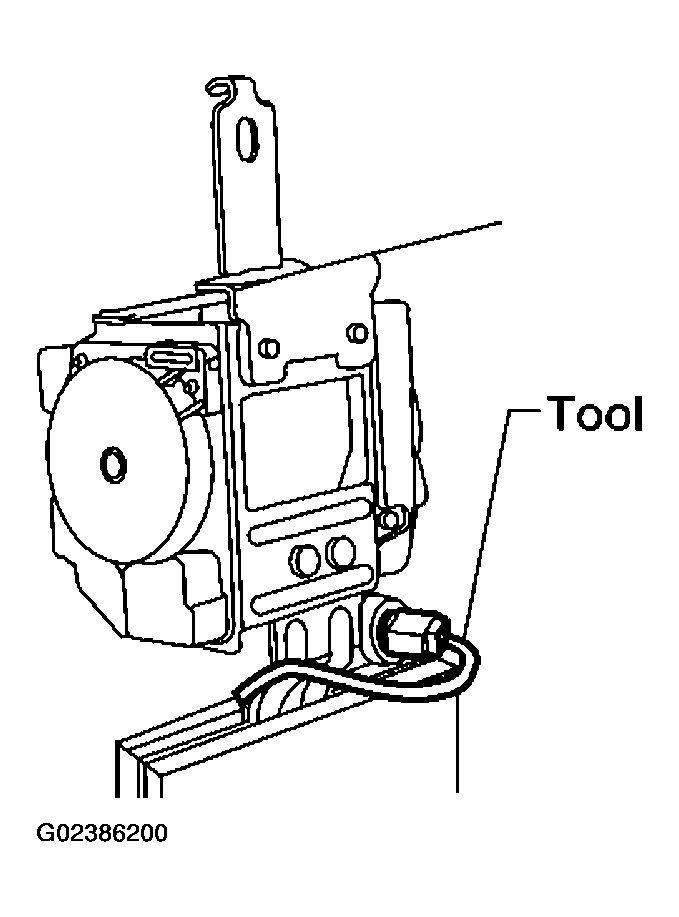

Connect deployment tool [SST: KV99106400 (J-38381)] connector to front seat belt pre-tensioner using deployment tool adapter (J-38381-80).

Fig 2: Connecting Deployment Tool Connector To Front Seat Belt Pre-Tensioner Using Deployment Tool Adapter
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect red clip of deployment tool to battery positive terminal and black clip to negative terminal.
The lamp on the right side of the tool, marked "deployment tool power", should glow green, not red.
Press the button on the deployment tool. The left side lamp on the tool, marked "seat belt pre-tensioner connector voltage", will illuminate and the seat belt pre-tensioner will deploy.
CAUTION: When deploying the front seat belt pre-tensioner, stand at least 5 m (16 ft) away from the seat belt pre-tensioner.

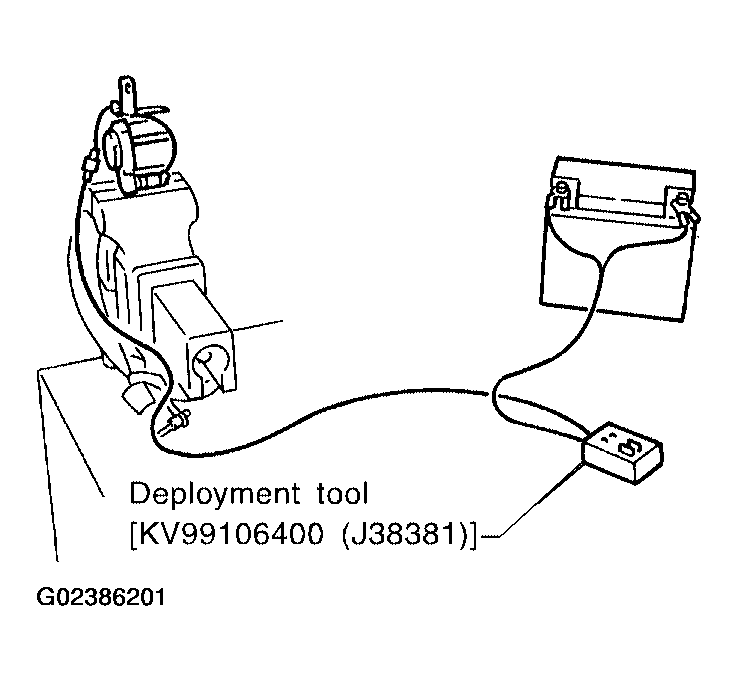

Fig 3: Connecting Red Clip Of Deployment Tool To Battery Positive Terminal And Black Clip To Negative Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
