Deployment of Front Passenger Air Bag Module (Outside of vehicle): Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Firmly secure the Tool A in a vise, then secure Tool B to Tool A.
1. Tool number: A: KV99105300 (J-41246)
2. B: J-39401-100

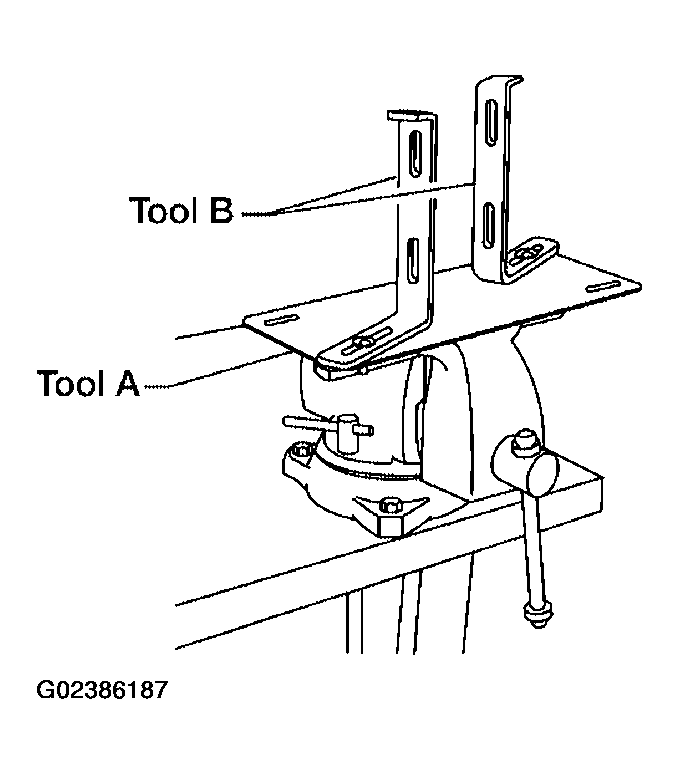

Fig 1: Securing Tool "A" In Vise, And Securing Tool "B" To Tool "A"
Courtesy of NISSAN MOTOR CO., U.S.A.
Match the two holes in the Tool and front passenger air bag module and fix them with two bolts.
1. Tool number: J-39401-100

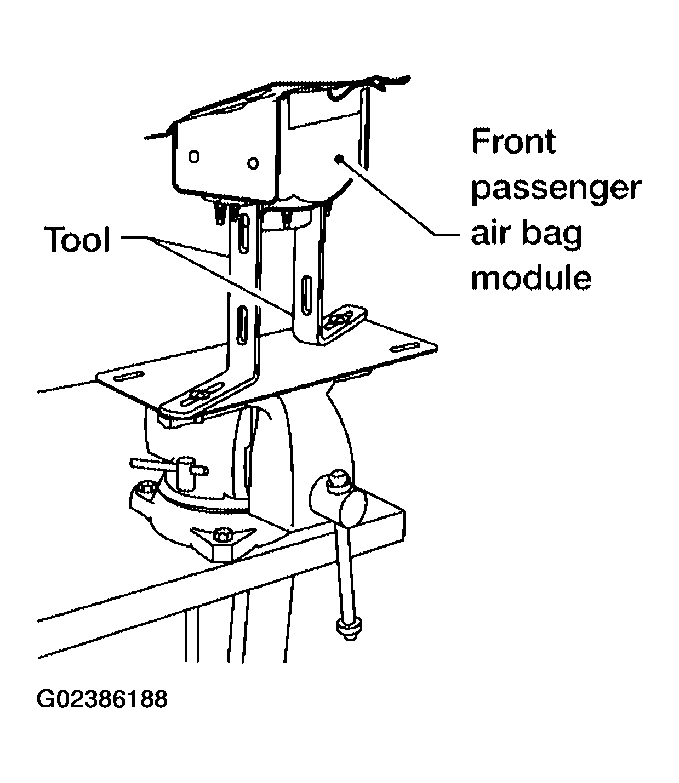

Fig 2: Matching Holes In Tool (J-39401-100) And Front Passenger Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect deployment Tool A to front passenger air bag module using Tool B.
1. Tool number: A: KV99106400 (J-38381)
2. B: KV99105300 (J-38381-80)

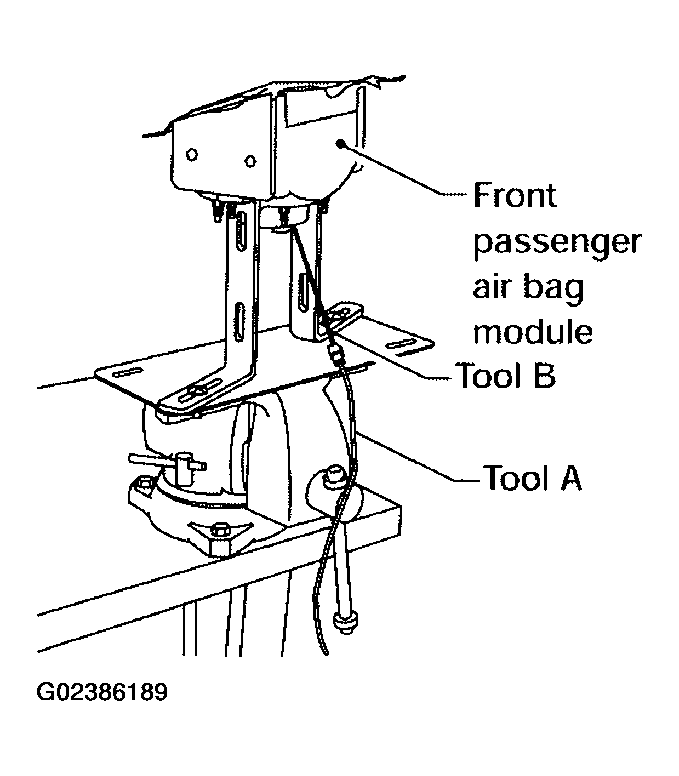

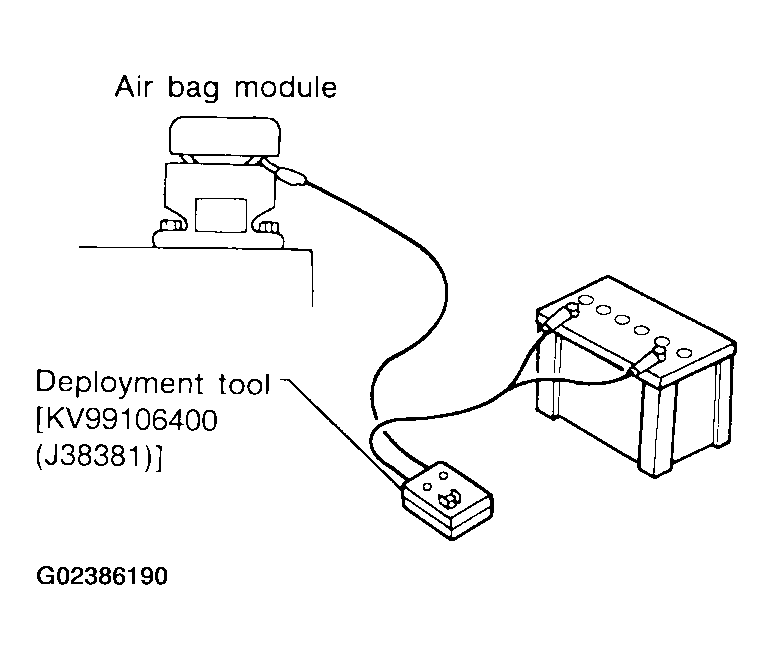

Fig 3: Connecting Deployment Tool "A" To Front Passenger Air Bag Module Using Tool "B"
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect red clip of the Tool to battery positive terminal and black clip to negative terminal.
1. Tool number: KV99106400 (J-38381)
Fig 4: Connecting Red Clip Of Tool (KV99106400) To Battery Positive Terminal And Black Clip To Negative Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
The lamp on the right side of the Tool, marked "deployment tool power", should glow green, not red.
Press the button on the Tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module will deploy.

CAUTION:

When deploying the front passenger air bag module, do not stand on the deploying side.
Stand at least 5 m (16 ft) away from the air bag module.
