Deployment of Front Side Air Bag Module (Outside of vehicle)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make 6.5 mm (0.256 in) diameter holes in air bag module bracket [SST: KV99105300 (J-41246)] at the positions shown.

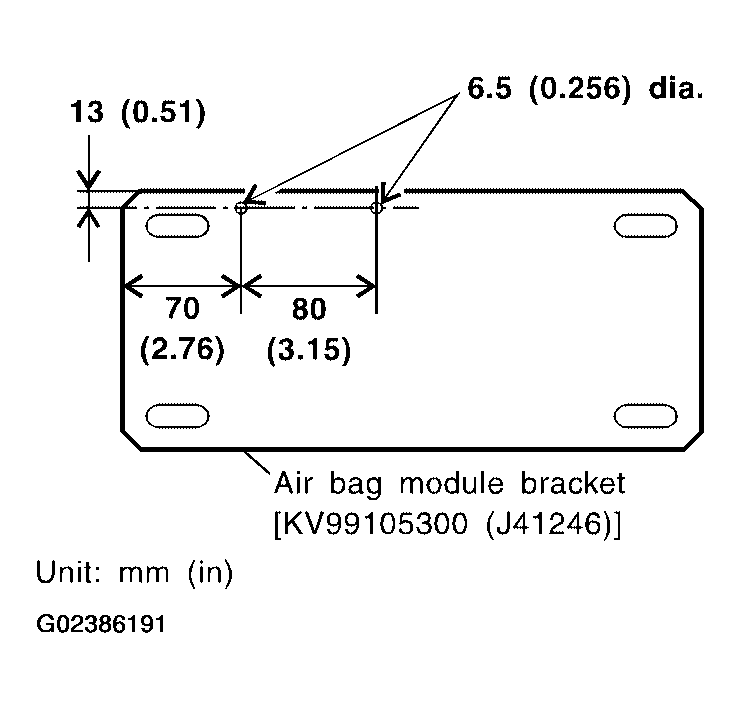

    Fig 1: Making 6.5 Mm (0.256 In) Diameter Holes In Air Bag Module Bracket At Specified Positions
    G02386191Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Firmly secure air bag module bracket [SST: KV99105300 (J-41246)] in a vise.
  3. Insert the stud bolts of side air bag module into the two holes in air bag module bracket (held in vise) and fix them with two M6 nuts.
    CAUTION: Side air bag module should be secured to air bag module bracket [SST: KV99105300 (J41246)] in a vise with stud bolt side facing down.

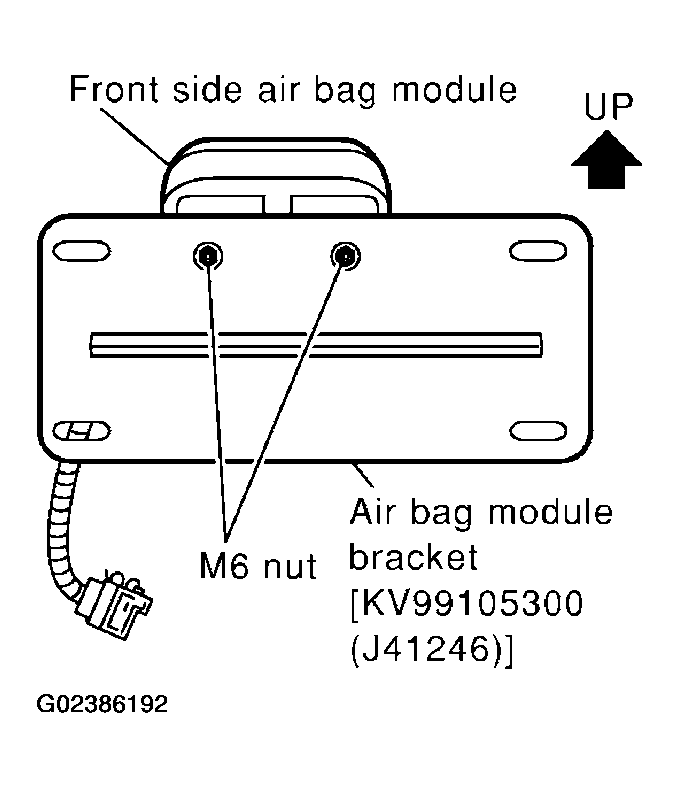

    Fig 2: Inserting Stud Bolts Of Side Air Bag Module Into Holes In Air Bag Module Bracket (Held In Vise) And Fixing Them With M6 Nuts
    G02386192Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Connect deployment tool [SST: KV99106400 (J-38381)] connector to connector on air bag module using deployment tool adapter [SST: KV99109000 (J-44230)].

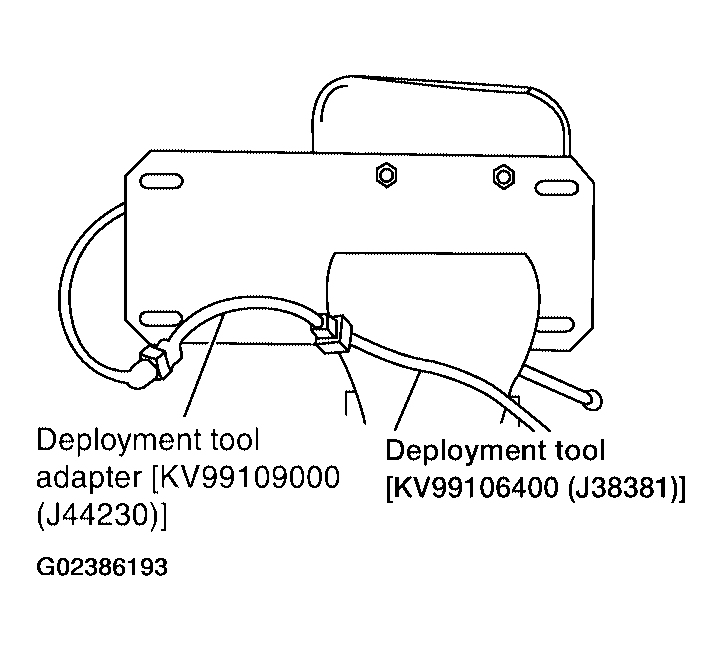

    Fig 3: Identifying Deployment Tool Adapter And Deployment Tool
    G02386193Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Connect red clip of deployment tool to battery positive terminal and black clip to negative terminal.
  6. The lamp on the right side of the tool, marked "deployment tool power", should glow green, not red.
  7. Press the button on the deployment tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module will deploy.
    CAUTION: When deploying the front side air bag module, stand at least 5 m (16 ft) away from the air bag module.

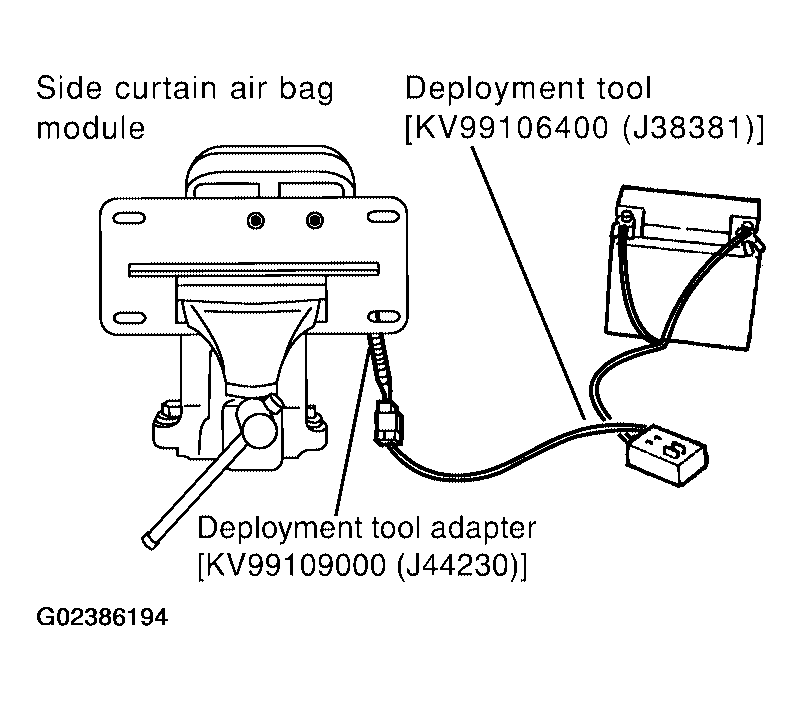

    Fig 4: Connecting Red Clip Of Deployment Tool To Battery Positive Terminal And Black Clip To Negative Terminal
    G02386194Courtesy of NISSAN MOTOR CO., U.S.A.
