Deployment of Driver Air Bag Module (Outside of vehicle)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Using wire, secure air bag module to the Tool at two places.
1. Tool number: KV99105300 (J-41246)
CAUTION: Use wire of at least 1 mm (0.04 in) diameter.
Firmly secure Tool with air bag module attached, in a vise.
1. Tool number: KV99105300 (J-41246)

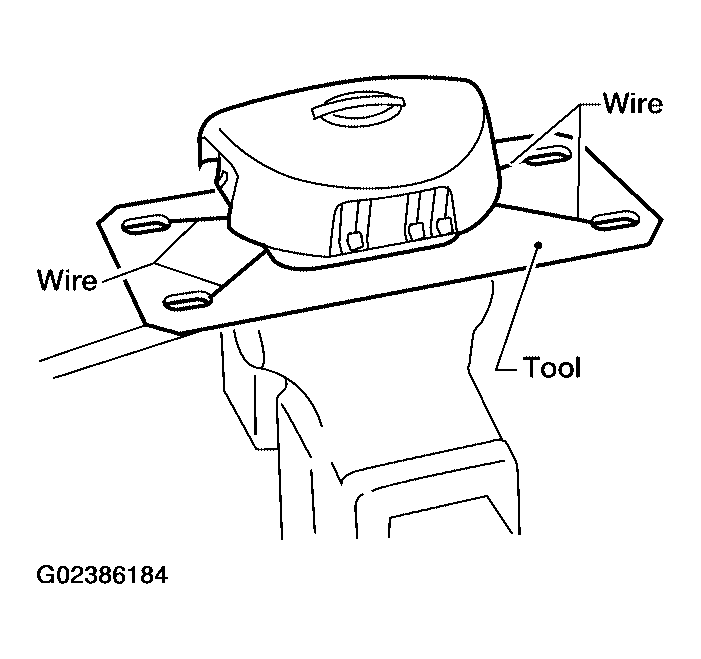

Fig 1: Securing Air Bag Module To Tool (KV99105300) Using Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect deployment Tool A to air bag module connector using Tool B.
1. Tool number: A: KV99106400 (J-38381)
2. B: KV99105300 (J-38381-80)

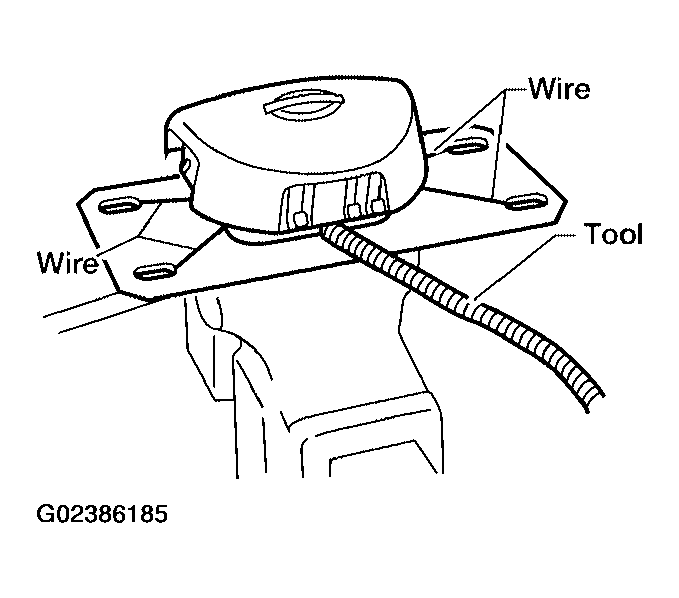

Fig 2: Connecting Deployment Tool "A" To Air Bag Module Connector Using Tool "B"
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect red clip of Tool to battery positive terminal and black clip to negative terminal.
1. Tool number: KV99106400 (J-38381)
The lamp on the right side of the tool, marked "deployment tool power", should glow green, not red.
Press the button on the deployment tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module will deploy.

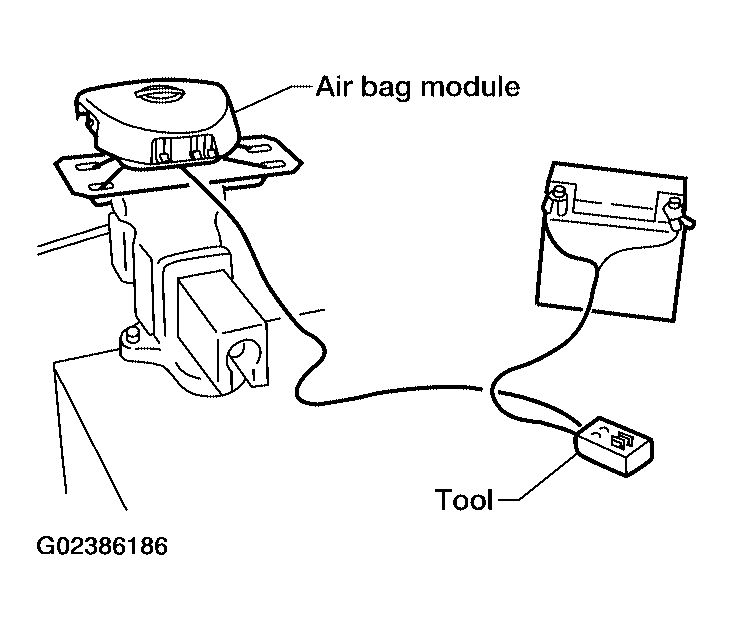

Fig 3: Connecting Red Clip Of Tool (KV99106400) To Battery Positive Terminal And Black Clip To Negative Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When deploying the driver air bag module, stand at least 5 m (16 ft) away from the air bag module.
