Deployment Tool Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Place the deployment tool switch to the ON position. The left side lamp in the tool, marked "air bag connector voltage" should illuminate. If it does not illuminate, replace the tool.

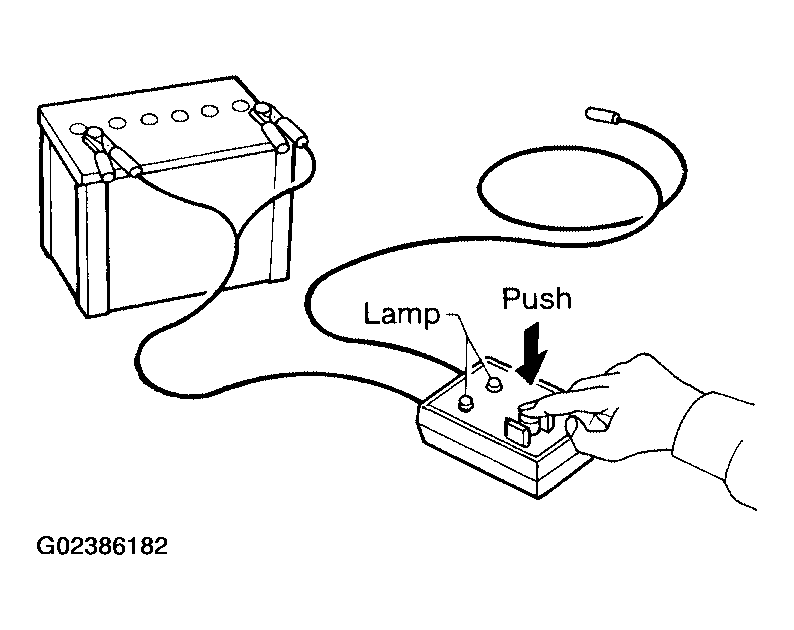

Fig 1: Pressing Deployment Tool Switch To ON Position And Checking Lamps
G02386182Courtesy of NISSAN MOTOR CO., U.S.A.
