Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- Disconnect the harness connectors for each air bag module and seat belt pre-tensioner.
- Remove center console. Refer to "INSTRUMENT PANEL ASSEMBLY ".
- Disconnect diagnosis sensor unit harness connectors.

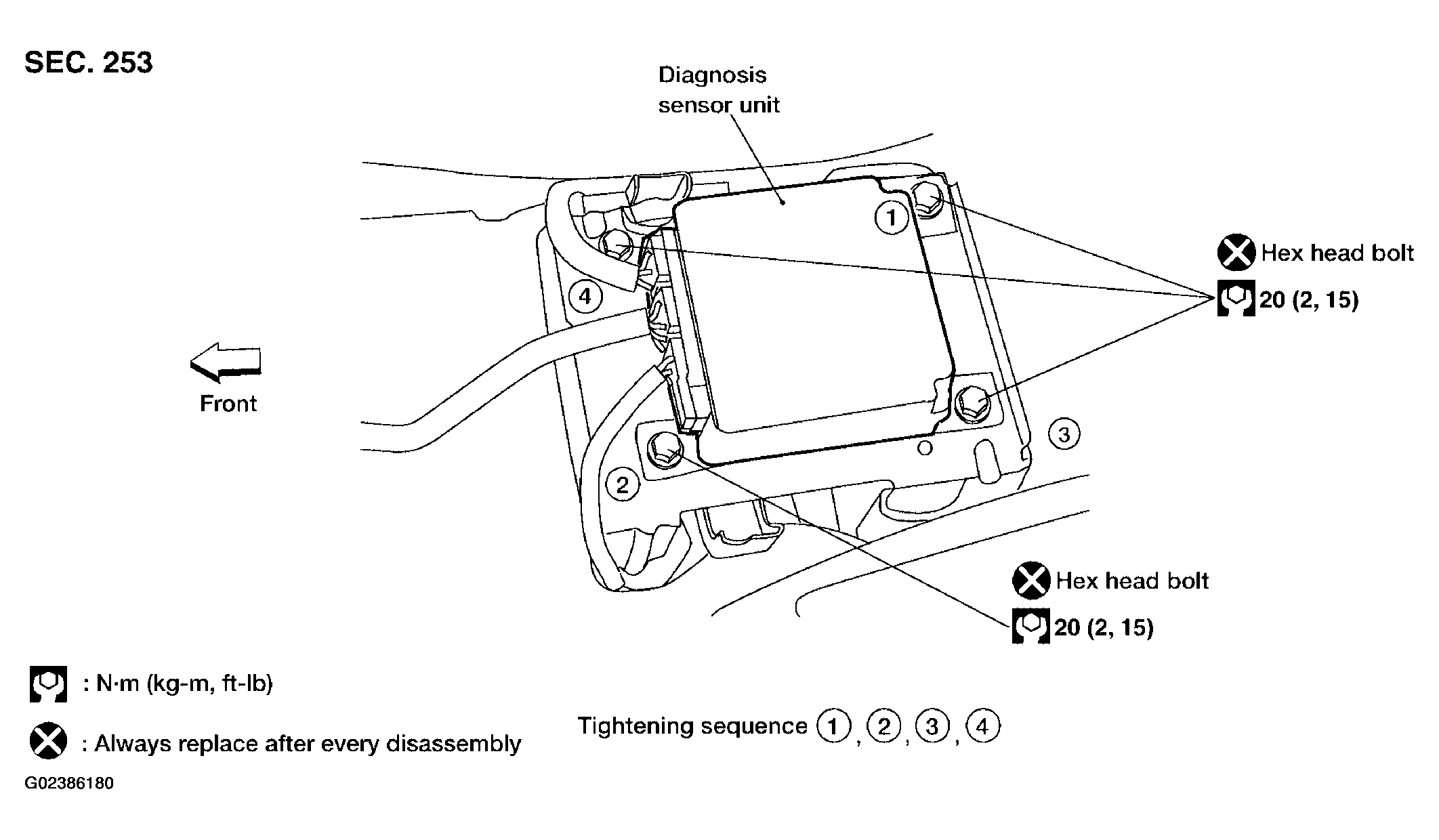

- Remove fixing bolts from the diagnosis sensor unit.
CAUTION:
- Do not use old bolts; replace with new bolts.
- Check diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it shows any visible signs of damage, replace with new one.
- Replace diagnosis sensor unit if it has been dropped or sustained an impact.
