Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove luggage room rear lower finisher. Refer to "LUGGAGE FLOOR TRIM ".
Remove bolt and remove tether anchor from the luggage box bracket.

Installation is in the reverse order of removal.

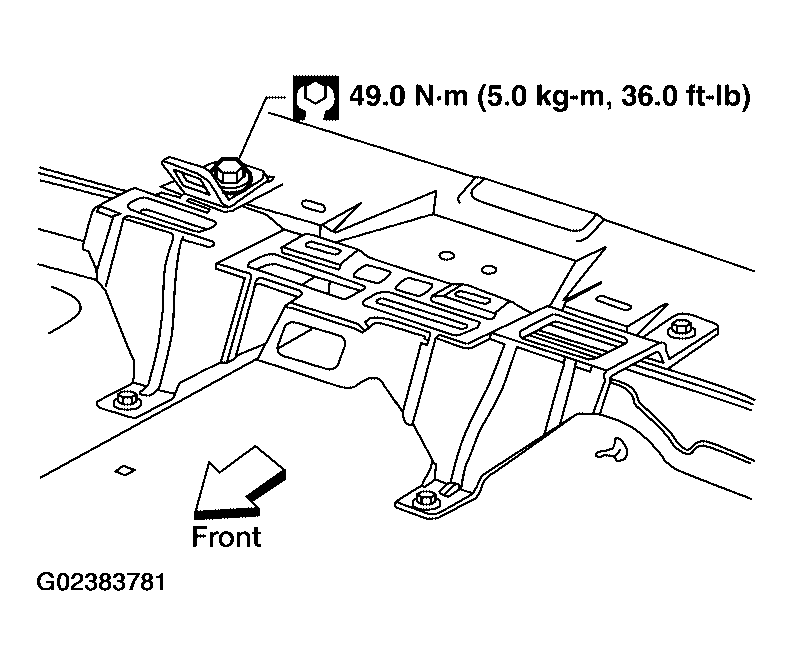

Fig 1: Removing Bolt and Tether Anchor From Luggage Box Bracket With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
