Removal Of Seat Belt Buckle

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bucket seat. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the screw and seat cushion inner finisher. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the anchor bolt and buckle.

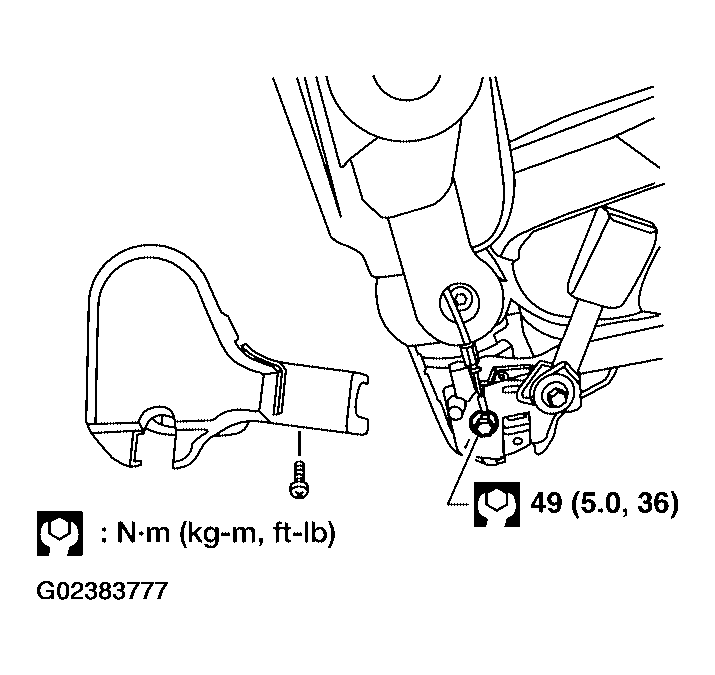

    Fig 1: Removing Anchor Bolt And Buckle With Torque Specifications
    G02383777Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the rear bench seat. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove the seat cushion finisher.
  6. Remove the anchor bolt and buckle.
