Front Seat Belt Retractor: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.

Remove the center pillar upper/lower finishers. Refer to "BODY SIDE TRIM ".
Remove the seat belt retractor anchor bolts and seat belt retractor and belt assembly.
- On RH side, disconnect the seat belt tension sensor.

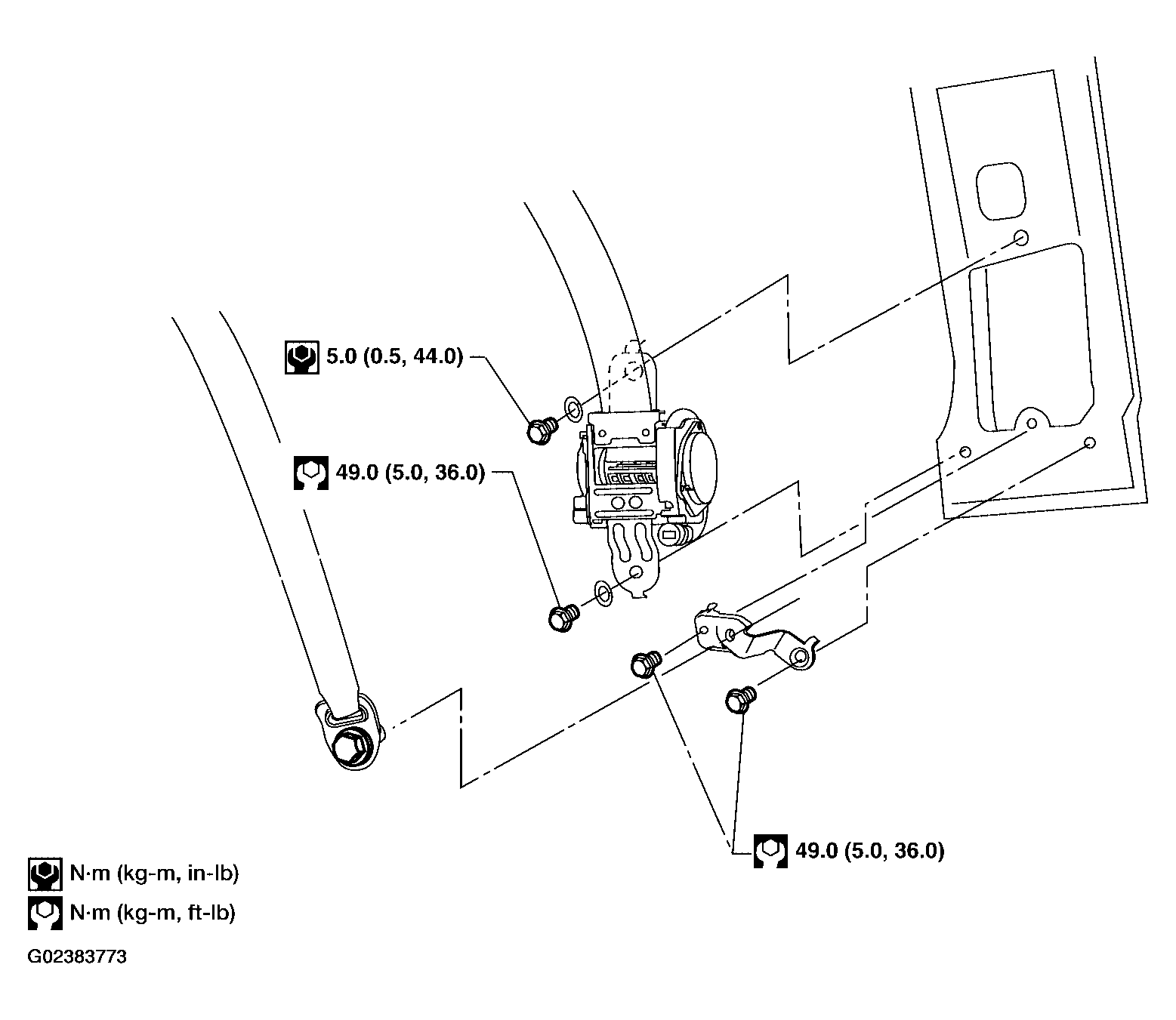

Fig 1: Exploded View Of Rear Seat Belts Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the seat belt pre-tensioner electrical connector.
CAUTION:
- For installing/removing front seat belt pre-tensioner connector, insert a thin screwdriver wrapped in tape into the notch, lift the lock and remove the connector.
- Install the connector with the lock raised, and push the lock into the connector.

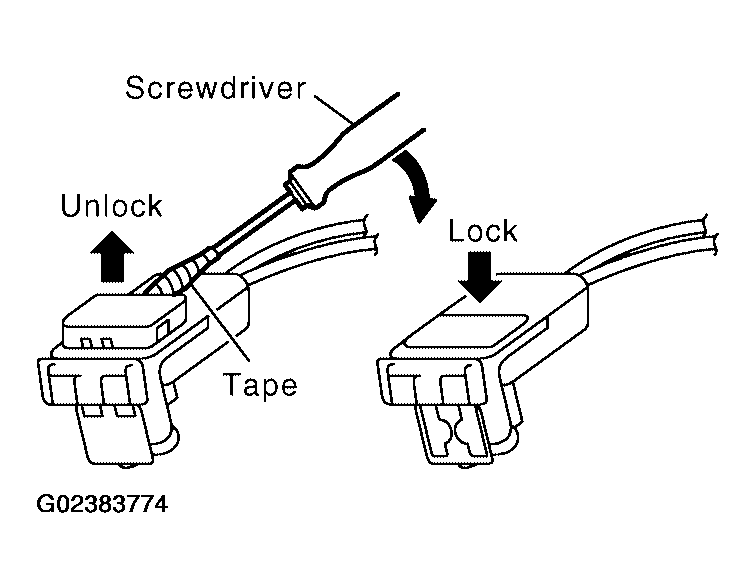

Fig 2: View Of Locking Tabs
Courtesy of NISSAN MOTOR CO., U.S.A.
