Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect steering wheel switches.
  4. Remove the steering wheel center nut.

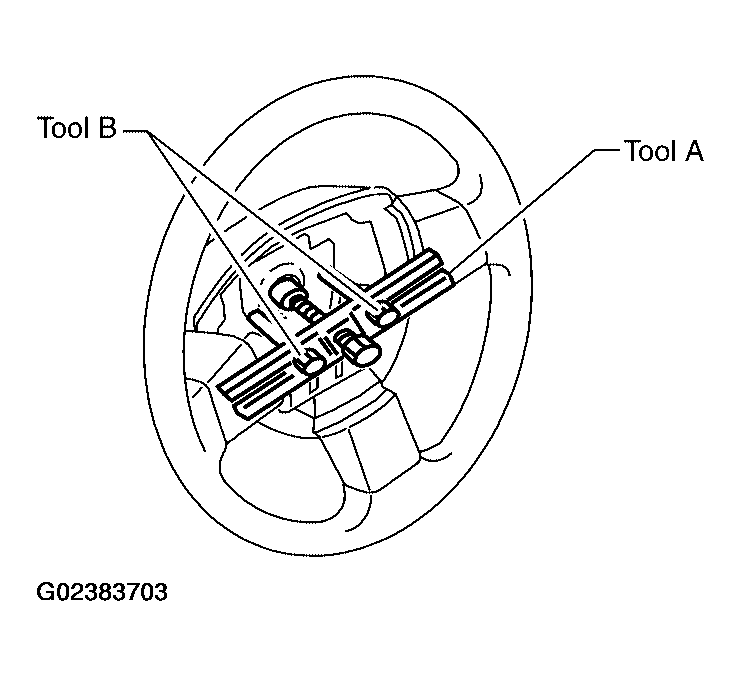

  5. Remove the steering wheel using Tools.
    1. Tool number A: J-1859A
      1. B: J-42578
    CAUTION: Place a piece of tape across the spiral cable so it will not be rotated out of position.
  6. Inspect the steering wheel near the puller holes for damage. If damaged, replace the steering wheel.
    • Remove steering wheel rear cover and steering wheel switches, if required.
    Fig 1: Removing Steering Wheel Rear Cover And Steering Wheel Switches
    G02383703Courtesy of NISSAN MOTOR CO., U.S.A.
