Inspection After Removal
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Check for damage to steering column jacket tube. If damage is found, replace steering column with new one.

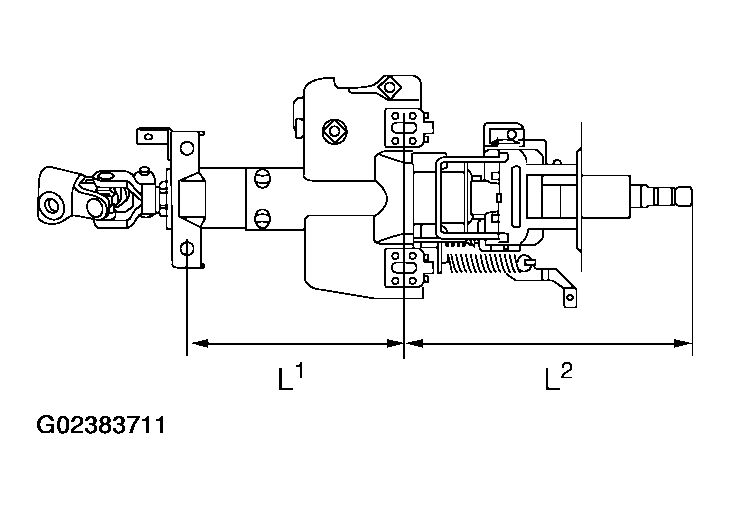

- If vehicle has been in a collision, check column length "L1" and "L2" as shown. If out of specification, replace steering column with new one.
- Steering column length
- L1: 158 mm (6.22 in)
- L2: 262 mm (10.31 in)
- Check for proper lubrication, apply grease as necessary.
