Steering Outer Socket and Inner Socket

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

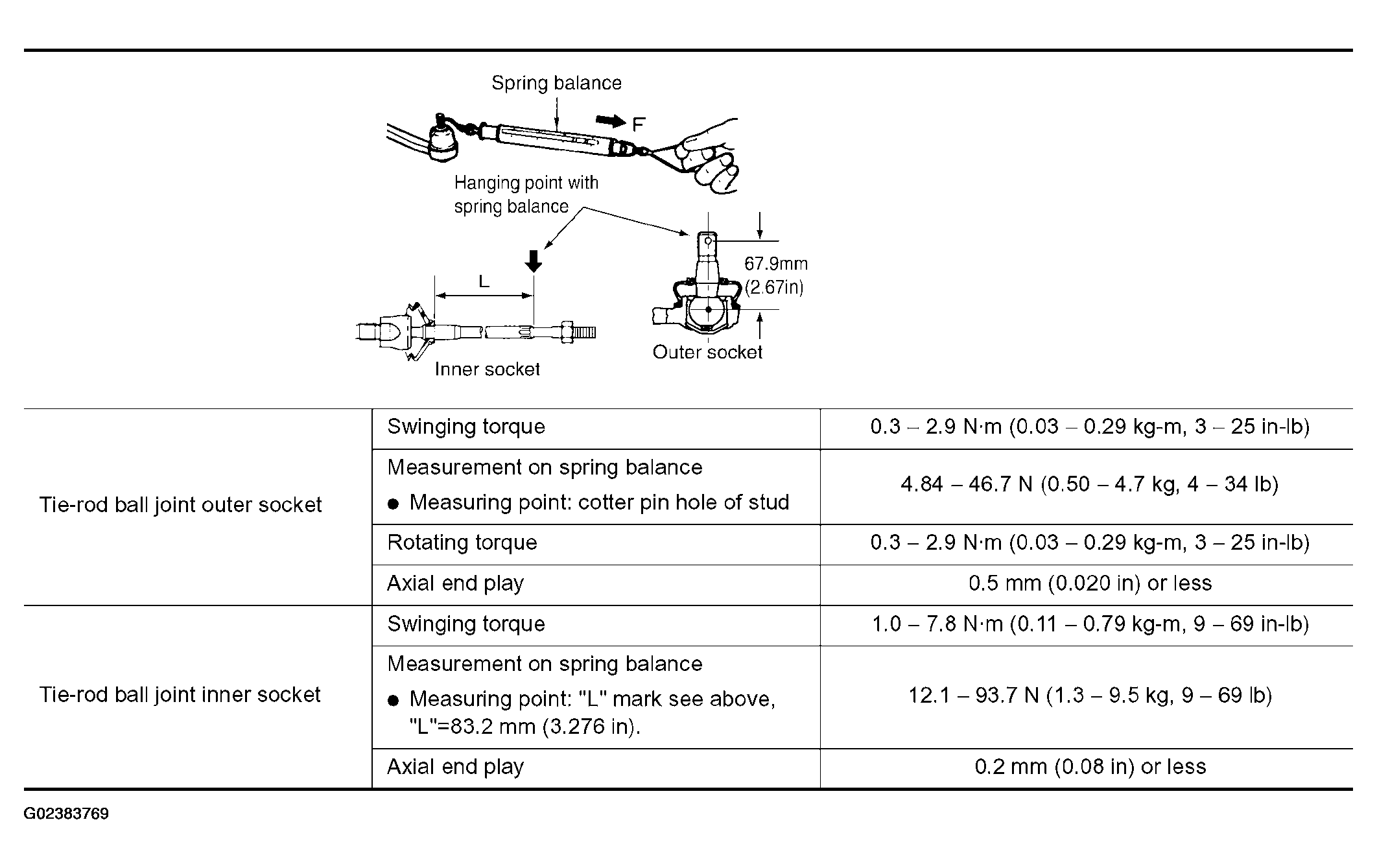

Fig 1: Socket And Ball Joint Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

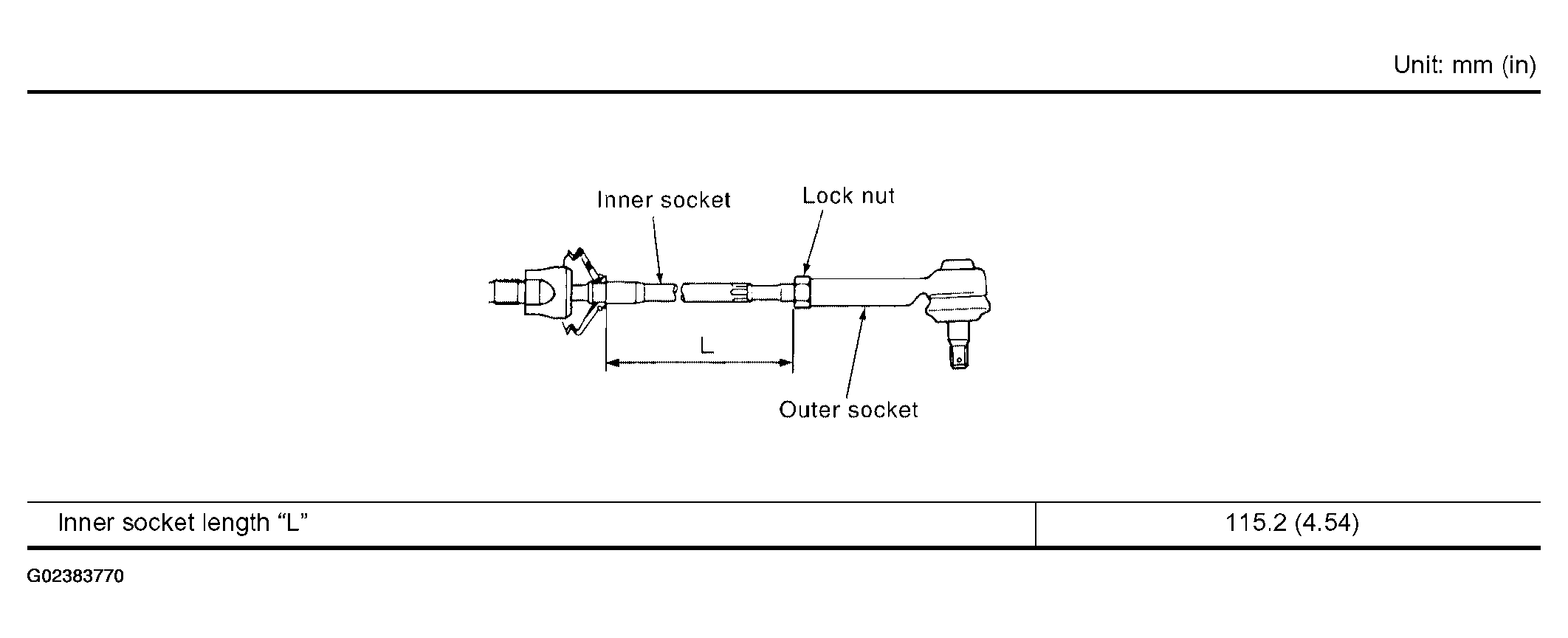

Fig 2: Identifying Steering Inner Socket Length

Courtesy of NISSAN MOTOR CO., U.S.A.
