ABS Motor

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in table below.

ACTIVE TEST - ABS MOTOR OPERATION

Operation	ON	OFF
ABS actuator relay	ON	ON
ABS motor relay	ON	OFF

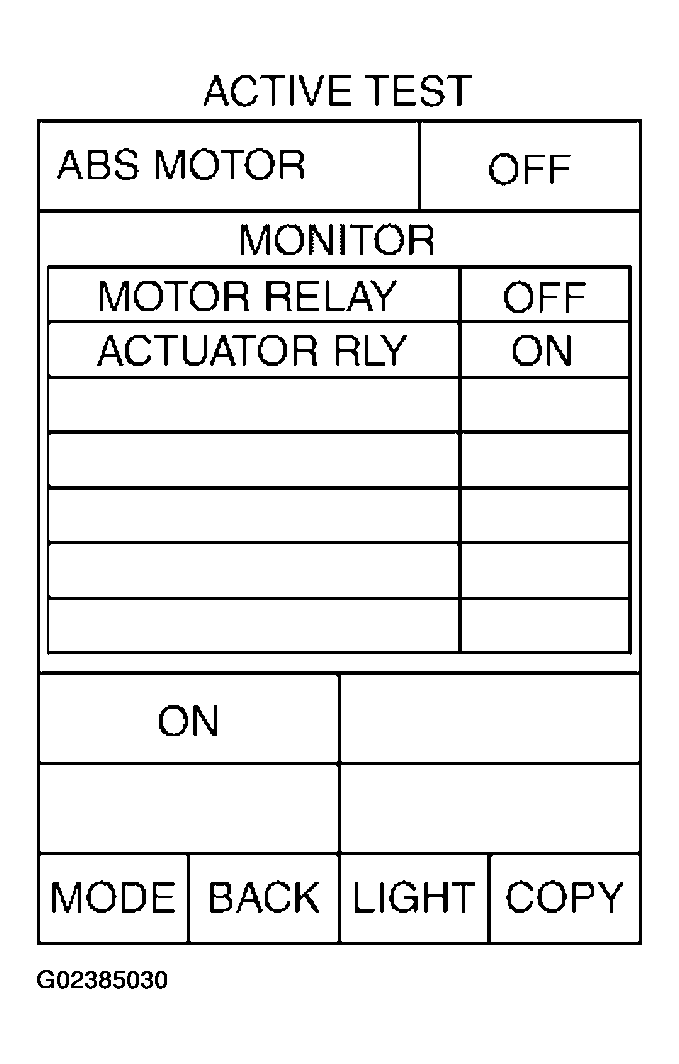

Fig 1: Identifying ABS Motor

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
