Yaw Rate/Side/Decel G Sensor System Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Sudden turns (such as spin turns, acceleration turns), drifting, etc. when VDC function is OFF may cause the yaw rate/side/decel G sensor system to indicate a problem. This is not a problem if normal operation can be resumed after restarting the engine.

INSPECTION PROCEDURE

  1. SELF-DIAGNOSIS RESULT CHECK

    Check self-diagnosis results.

    YAW RATE/SIDE/DECEL G SENSOR SYSTEM - SELF-DIAGNOSIS RESULTS

    Self-diagnosis results
    YAW RATE SENSOR
    LONGITUDINAL G-SENSOR
    LATERAL G-SENSOR
    CAUTION: If vehicle is on turn table at entrance to parking garage, or on other moving surface, VDC OFF indicator lamp may illuminate and CONSULT-II self-diagnosis may indicate yaw rate sensor system malfunction. However, in this case there is no malfunction in yaw rate sensor system. Take vehicle off of turn table or other moving surface, and start engine. Results will return to normal.

    Is the above displayed in the self-diagnosis display items?

    1. YES: GO TO 2.
    2. NO: Inspection End.
  2. CONNECTOR INSPECTION

    Disconnect the ABS actuator and electric unit (control unit) connector E125 and yaw rate/side/decel G sensor connector M108.

    Check the terminals for deformation, disconnection, looseness or damage.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace as necessary.
  3. YAW RATE/SIDE/DECEL G SENSOR HARNESS INSPECTION
    1. Turn off the ignition switch and disconnect yaw rate/side/decel G sensor connector M108 and ABS actuator and electric unit (control unit) connector E125.
    2. Check continuity between the ABS actuator and electric unit (control unit) connector E125 and the yaw rate/side/decel G sensor connector M108.

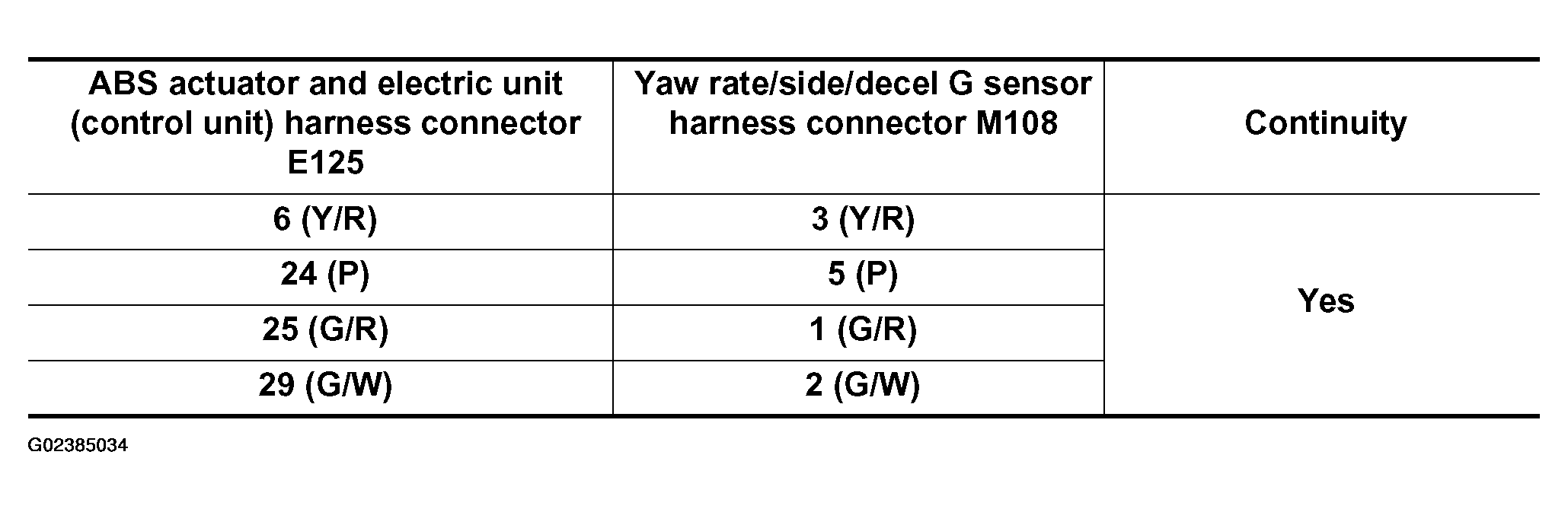

      Fig 1: ABS Actuator And Electric Unit And Yaw Rate/Side/Decel G Sensor Connector Continuity Specifications
      G02385034Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair or replace as necessary.
  4. YAW RATE/SIDE/DECEL G SENSOR INSPECTION
    1. Connect the yaw rate/side/decel G sensor connector M108 and ABS actuator and electric unit (control unit) connector E125.
    2. Use "DATA MONITOR" to check if the yaw rate/side/decel G sensor signals are normal.
      YAW RATE/SIDE/DECEL G SENSOR INSPECTION

      Vehicle status  Yaw rate sensor (Data monitor standard)  Side G sensor (Data monitor standard)  Decel G Sensor (Data monitor standard)
      When stopped  -4 to +4 deg/s  -1.1 to +1.1 m/s  -0.11 G to +0.11 G
      Right turn  Negative value  Negative value  -
      Left turn  Positive value  Positive value  -
      Speed up  -  -  Negative value
      Speed down  -  -  Positive value

    OK or NG

    1. OK: Inspection End.
    2. NG: Replace the yaw rate/side/decel G sensor. Refer to "REMOVAL AND INSTALLATION ".
