Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

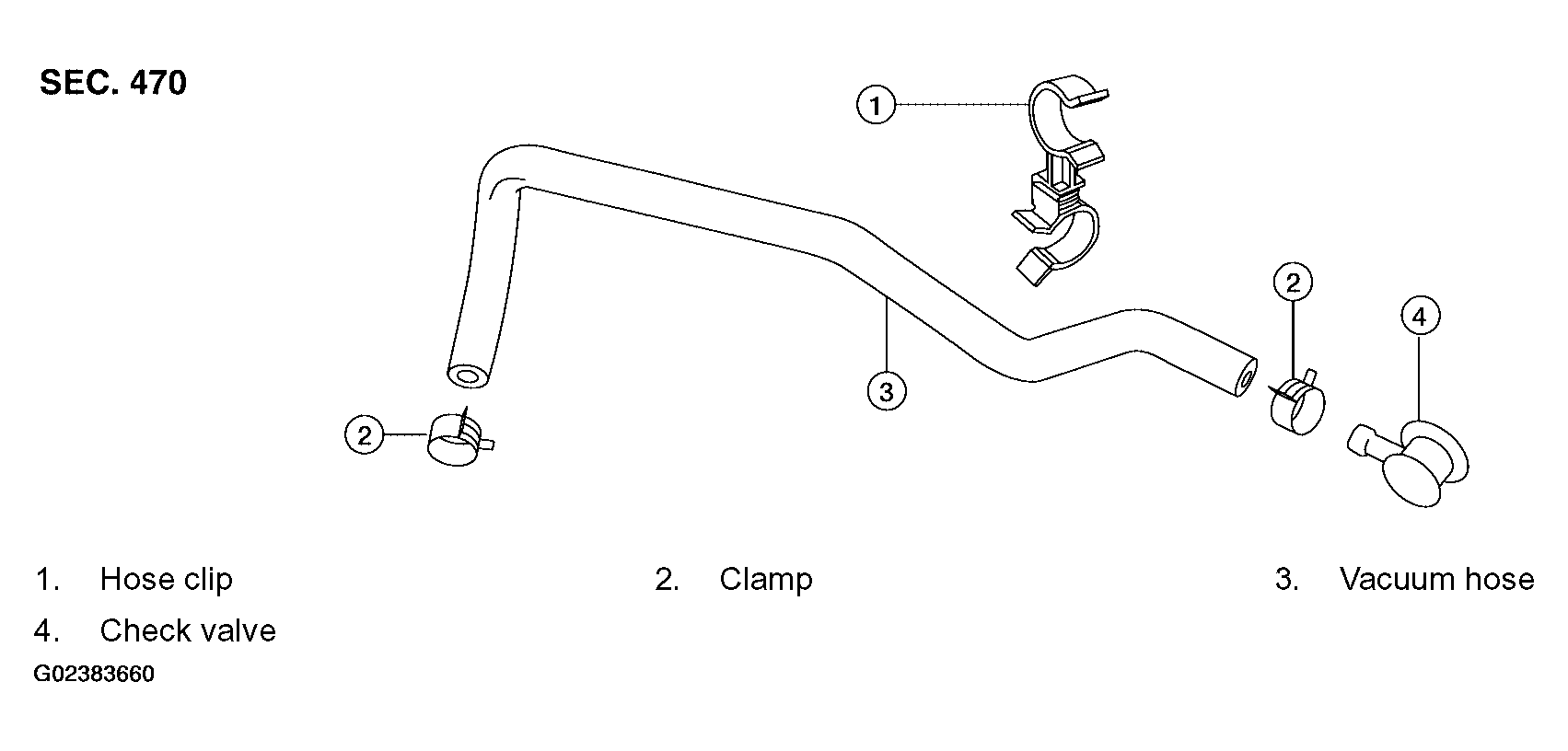

Fig 1: Identifying Vacuum Hose

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect vacuum hose from hose clip.
Release clamps and disconnect vacuum hose.
Remove check valve from brake booster.
Installation is in the reverse order of removal.
CAUTION:
- Insert vacuum hose for at least 24 mm (0.94 in).
- Do not use lubricating oil during assembly.

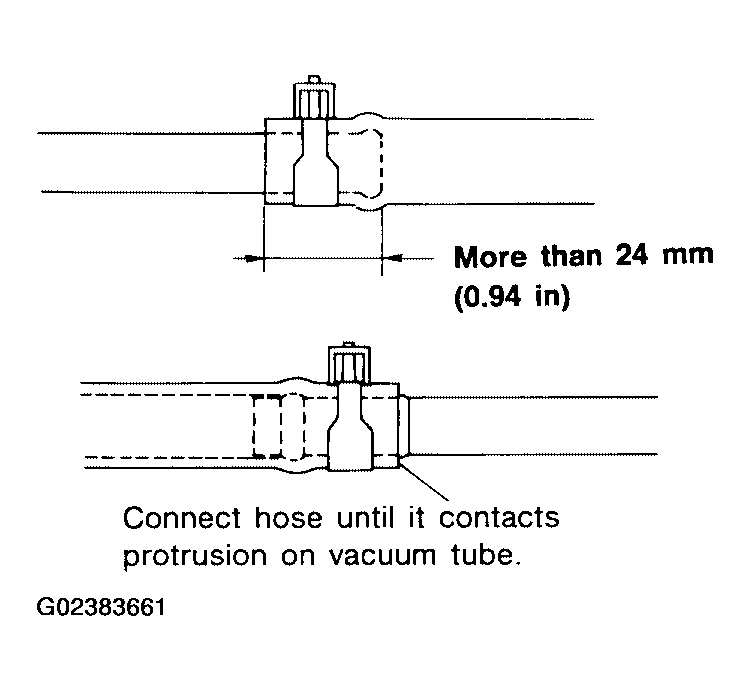

Fig 2: Insert Vacuum Hose 24 mm
Courtesy of NISSAN MOTOR CO., U.S.A.
