Removal and Installation of Brake Caliper and Disc Rotor: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove tires from vehicle with power tool.
Drain brake fluid as necessary. Refer to "DRAIN AND REFILL ".
NOTE: Do not remove union bolt unless removing cylinder body from vehicle.
Remove mounting bolts and cylinder body.
NOTE: Position cylinder body aside using suitable wire, as necessary.

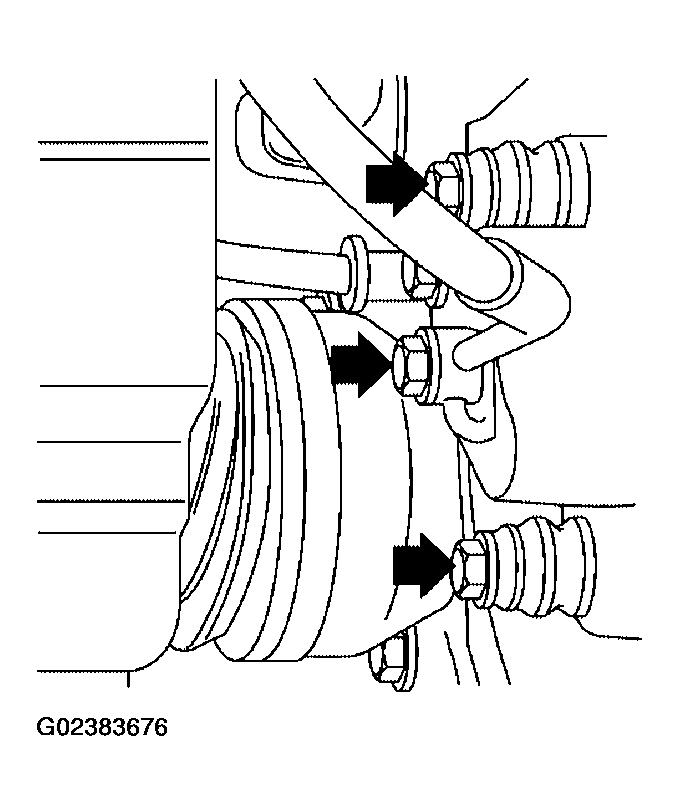

Fig 1: Removing Cylinder Body Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove disc rotor.
