Pad Wear Inspection
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

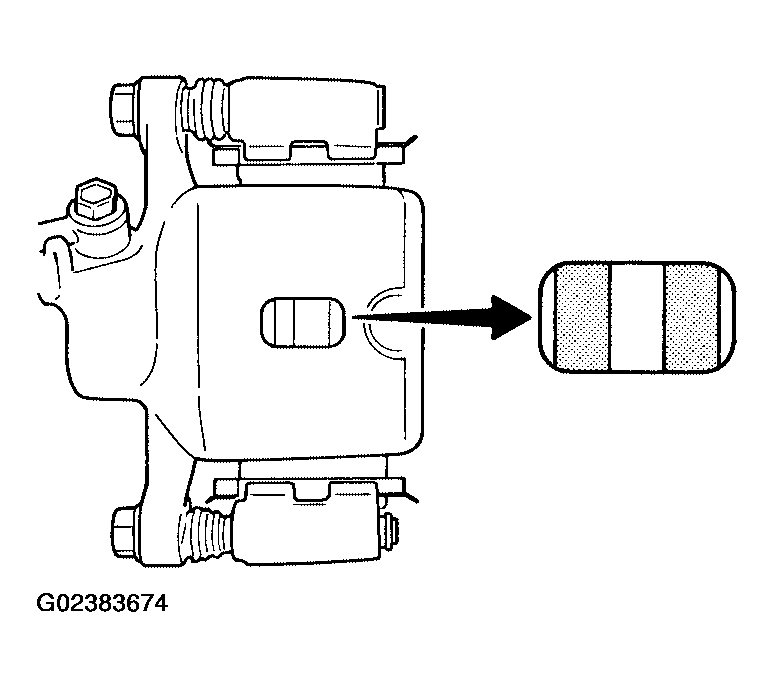

- Inspect the thickness of pad through cylinder body inspection hole. Use a scale for inspection if necessary.
- Standard thickness: 12.13 mm (0.478 in)
- Repair limit thickness: 1.0 mm (0.039 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
